- Browning Finish Bore Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS16F28X3/4

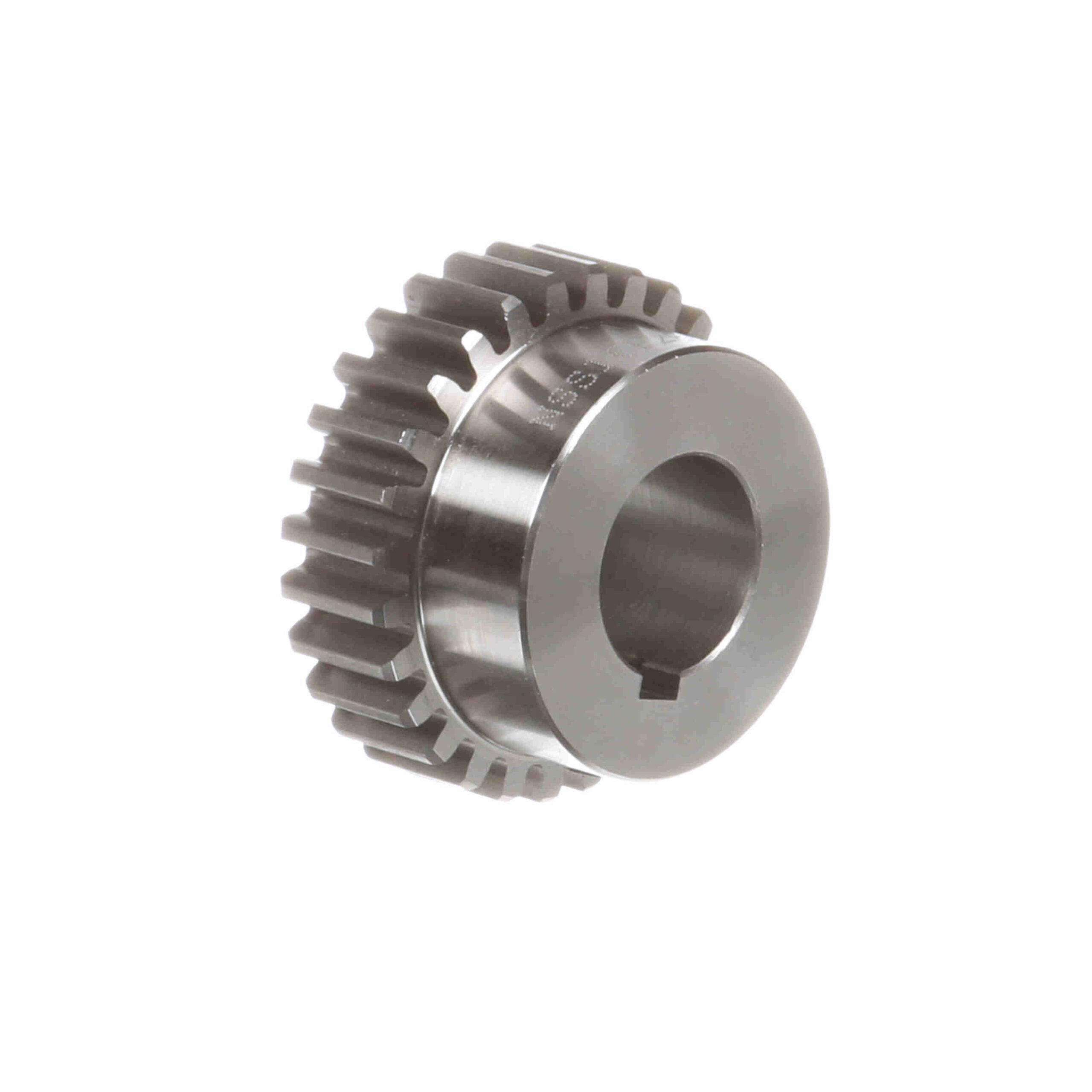

Browning Steel Finished Bore Spur Gear – 14.5 PA 16 DP – NSS16F28X3/4
Out of stock
| Pitch Diameter (in): | 1.75 in | Number of Teeth/Threads: | 28 |
|---|---|---|---|
| Hub Diameter (in): | 1.5 in | Material: | Steel |
| Face Width (in): | 0.5 in | Hub Projection (in): | 0.5 in |
| Outside Diameter (in): | 1.87 in | Diametral Pitch: | 16 |
| Pressure Angle: | 14.5 | Bore (Min) (in): | 0.75 in |
| Bore Type: | Finished Bore | Length Through Bore (in): | 1 in |
| Bore (Max) (in): | 0.75 in | Product Type: | Spur Gear |
| Bore Size (in): | 0.75 in | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 1 in |
| UPC: | 662289042678 | Weight: | 0.48 LB |
| Packaged Length: | 2.56 Inches | Packaged Width: | 2.56 Inches |
| Packaged Height: | 1.38 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
