- Browning Finish Bore Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS16F24X3/4

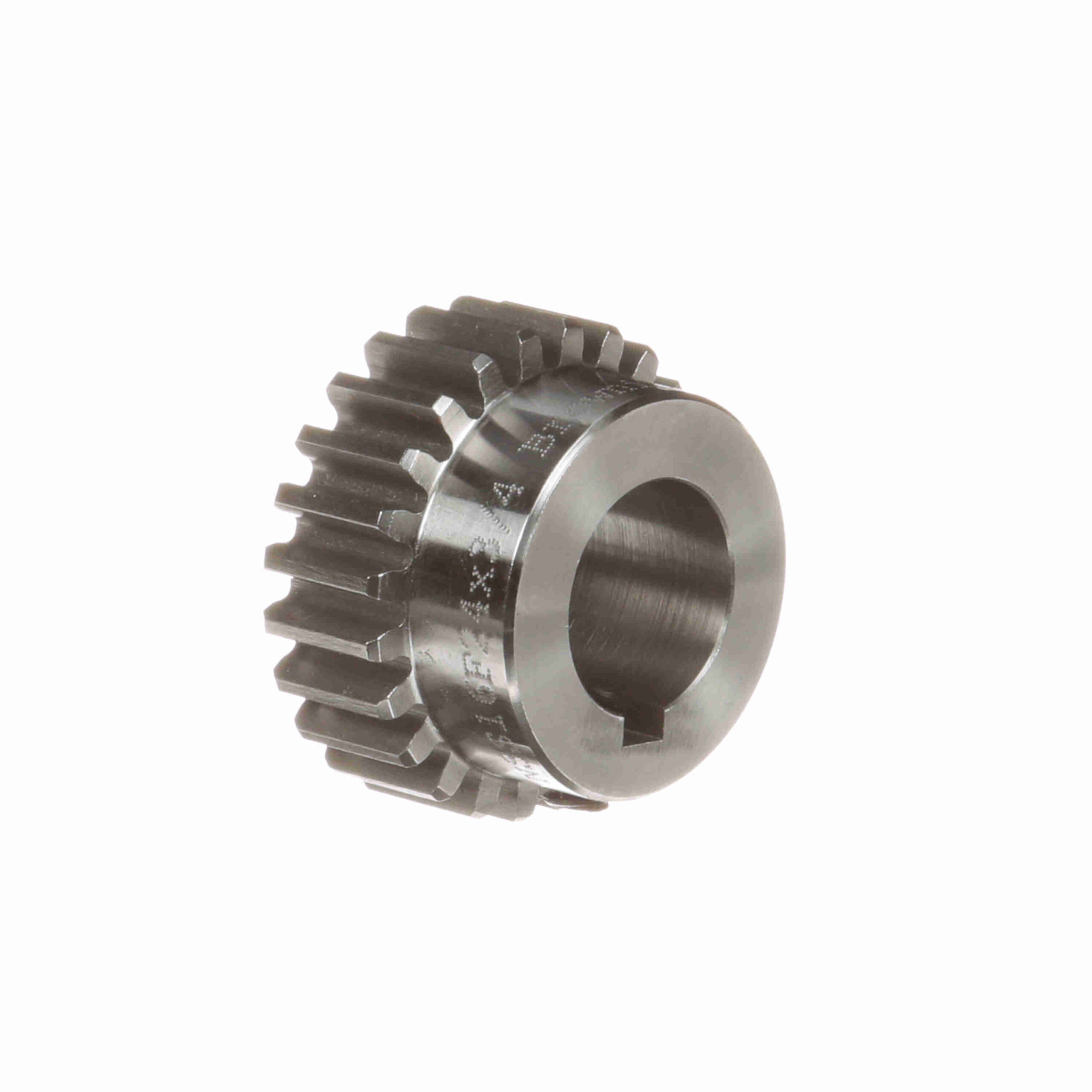

Browning Steel Finished Bore Spur Gear – 14.5 PA 16 DP – NSS16F24X3/4
$125.16
Out of stock
Out of stock
| Hub Projection (in): | 0.4375 in | Diametral Pitch: | 16 |
|---|---|---|---|
| Material: | Steel | Hub Diameter (in): | 1.3125 in |
| Outside Diameter (in): | 1.62 in | Face Width (in): | 0.5 in |
| Pitch Diameter (in): | 1.5 in | Number of Teeth/Threads: | 24 |
| Pressure Angle: | 14.5 | Bore (Max) (in): | 0.75 in |
| Bore Type: | Finished Bore | Bore (Min) (in): | 0.75 in |
| Length Through Bore (in): | 0.9375 in | Product Type: | Spur Gear |
| Bore Size (in): | 0.75 in | Hub Type: | Type B |
| Overall Length (in): | 0.9375 in | Standard Met: | AGMA |
| UPC: | 662289217076 | Weight: | 0.74 LB |
| Packaged Length: | 2.70 Inches | Packaged Width: | 2.80 Inches |
| Packaged Height: | 1.50 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
