- Browning Finish Bore Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS12F22X1

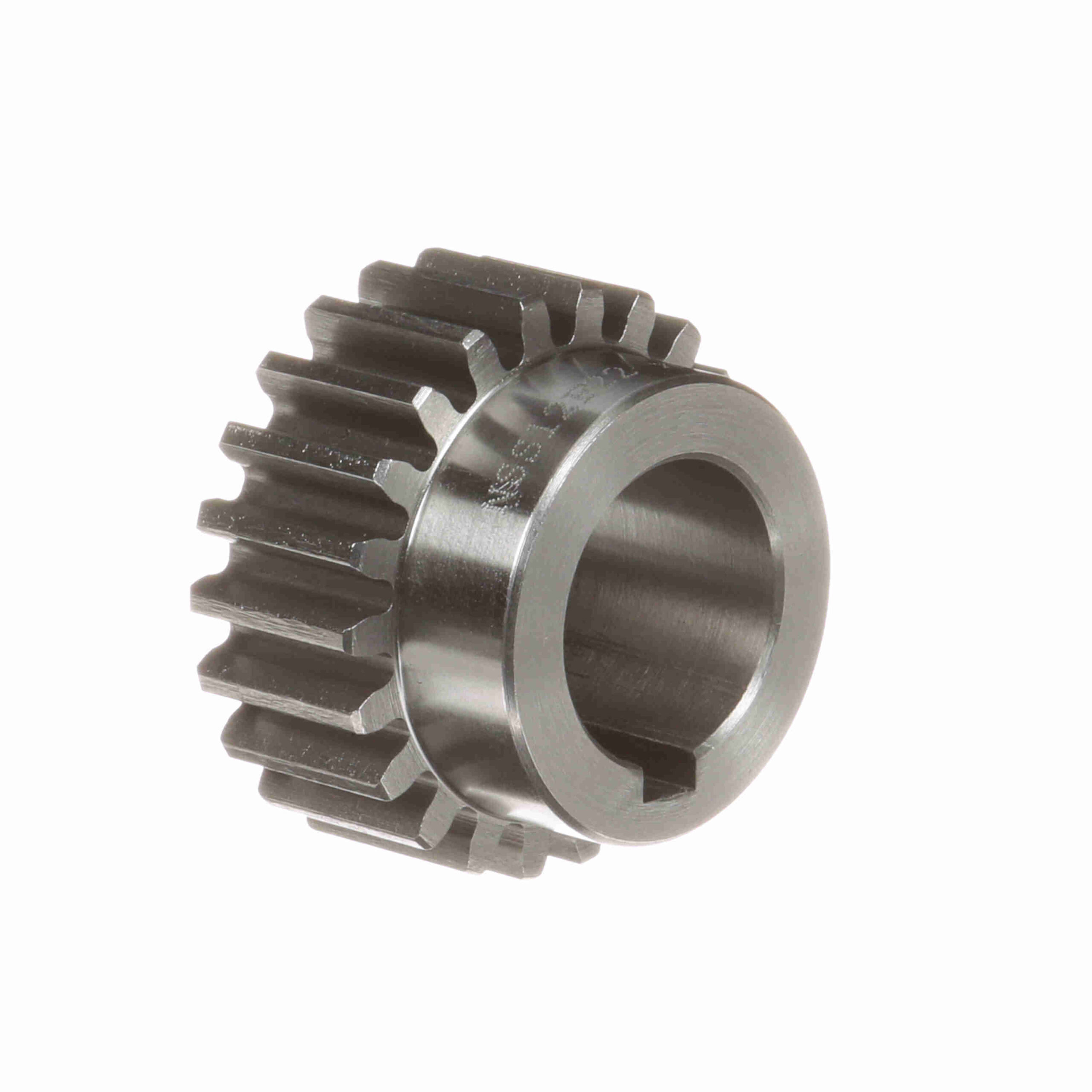

Browning Steel Finished Bore Spur Gear – 14.5 PA 12 DP – NSS12F22X1
Out of stock
| Diametral Pitch: | 12 | Face Width (in): | 0.75 in |
|---|---|---|---|
| Outside Diameter (in): | 2 in | Pitch Diameter (in): | 1.833 in |
| Material: | Steel | Hub Diameter (in): | 1.5625 in |
| Hub Projection (in): | 0.5 in | Number of Teeth/Threads: | 22 |
| Pressure Angle: | 14.5 | Bore (Max) (in): | 1 in |
| Bore (Min) (in): | 1 in | Length Through Bore (in): | 1.25 in |
| Bore Type: | Finished Bore | Bore Size (in): | 1 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Overall Length (in): | 1.25 in | Standard Met: | AGMA |
| UPC: | 662289147328 | Weight: | 0.55 LB |
| Packaged Length: | 2.70 Inches | Packaged Width: | 2.70 Inches |
| Packaged Height: | 1.40 Inches |
