- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS1223

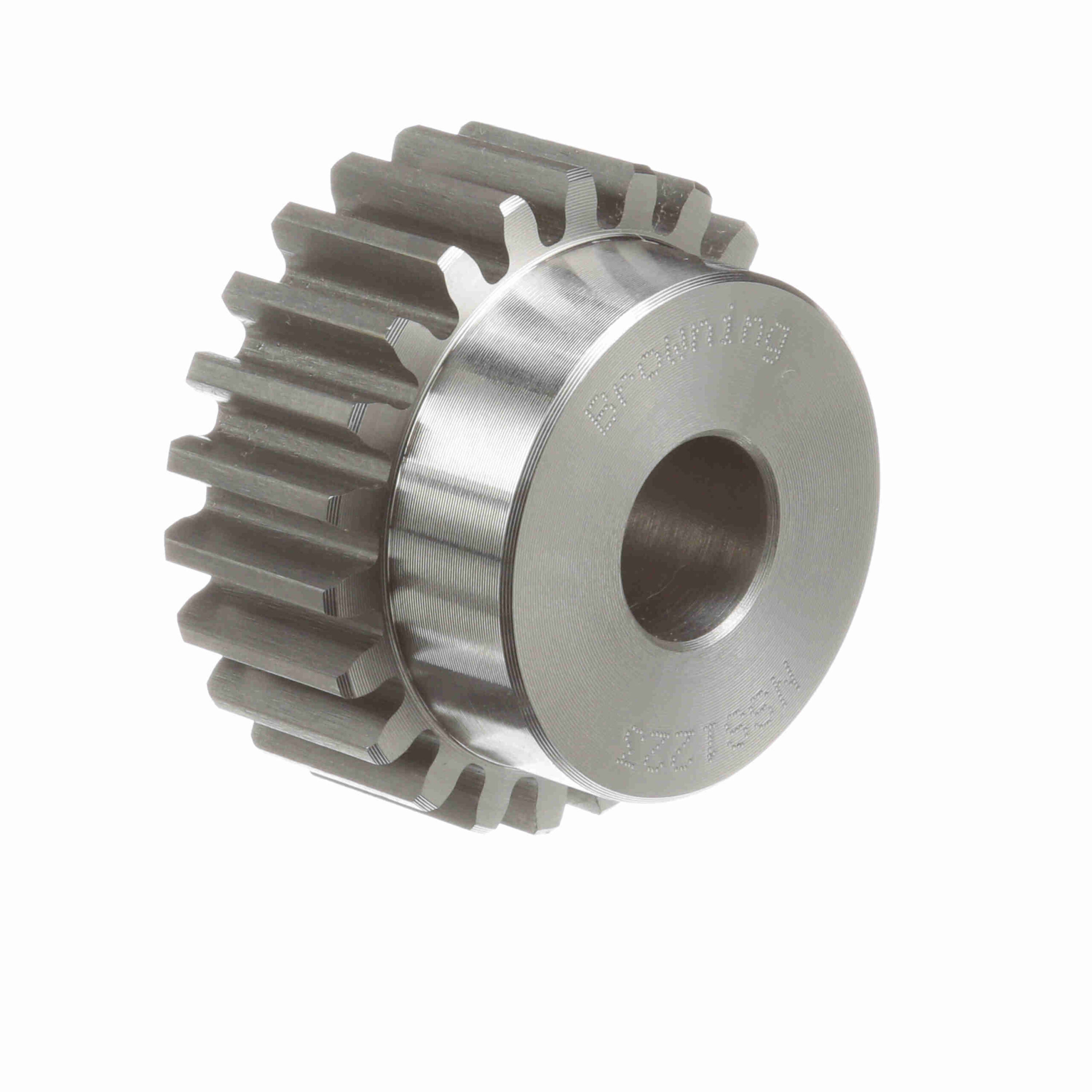

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 12 DP – NSS1223
Out of stock
| Pressure Angle: | 14.5 | Number of Teeth/Threads: | 23 |
|---|---|---|---|
| Material: | Steel | Hub Diameter (in): | 1.625 in |
| Face Width (in): | 0.75 in | Outside Diameter (in): | 2.08 in |
| Pitch Diameter (in): | 1.917 in | Diametral Pitch: | 12 |
| Hub Projection (in): | 0.5 in | Bore (Max) (in): | 1 in |
| Bore (Min) (in): | 0.625 in | Bore Type: | Minimum Plain Bore |
| Length Through Bore (in): | 1.25 in | Bore Size (in): | 0.625 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 1.25 in |
| Gear Construction: | Plain | UPC: | 662289282739 |
| Weight: | 0.81 LB | Packaged Length: | 2.90 Inches |
| Packaged Width: | 2.70 Inches | Packaged Height: | 1.50 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | Mexico |
