- Browning Split Taper Bushed Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS10H54

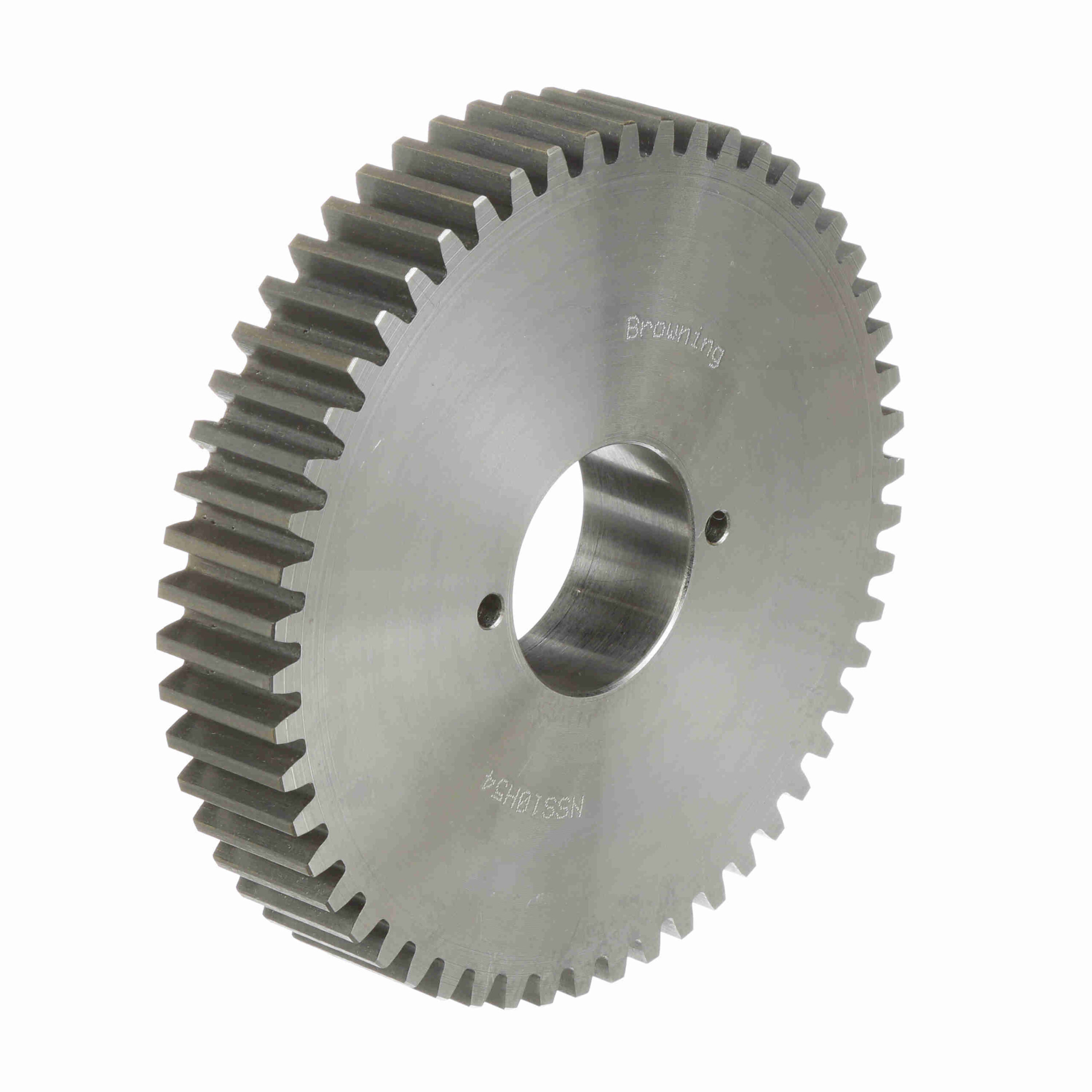

Browning Steel Bushed Bore Spur Gear – 14.5 PA 10 DP – NSS10H54
$392.86
Out of stock
Out of stock
| Pitch Diameter (in): | 5.4 in | Pressure Angle: | 14.5 |
|---|---|---|---|
| Material: | Steel | Outside Diameter (in): | 5.6 in |
| Diametral Pitch: | 10 | Face Width (in): | 1 in |
| Number of Teeth/Threads: | 54 | Length Through Bore (in): | 1.625 in |
| Bore (Max) (in): | 1.5 in | Bore (Min) (in): | 0.375 in |
| Bore Type: | Bushed Bore | Product Type: | Spur Gear |
| Bore Size (in): | 0.375 in | Bushing Bore size (in): | 0.375 to 1.500 in |
| Hub Type: | H | Standard Met: | AGMA |
| Overall Length (in): | 1.625 in | Gear Construction: | Plain |
| UPC: | 662289061983 | Weight: | 5.93 LB |
| Packaged Length: | 6.70 Inches | Packaged Width: | 6.70 Inches |
| Packaged Height: | 1.20 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
