- Browning Split Taper Bushed Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS10H32

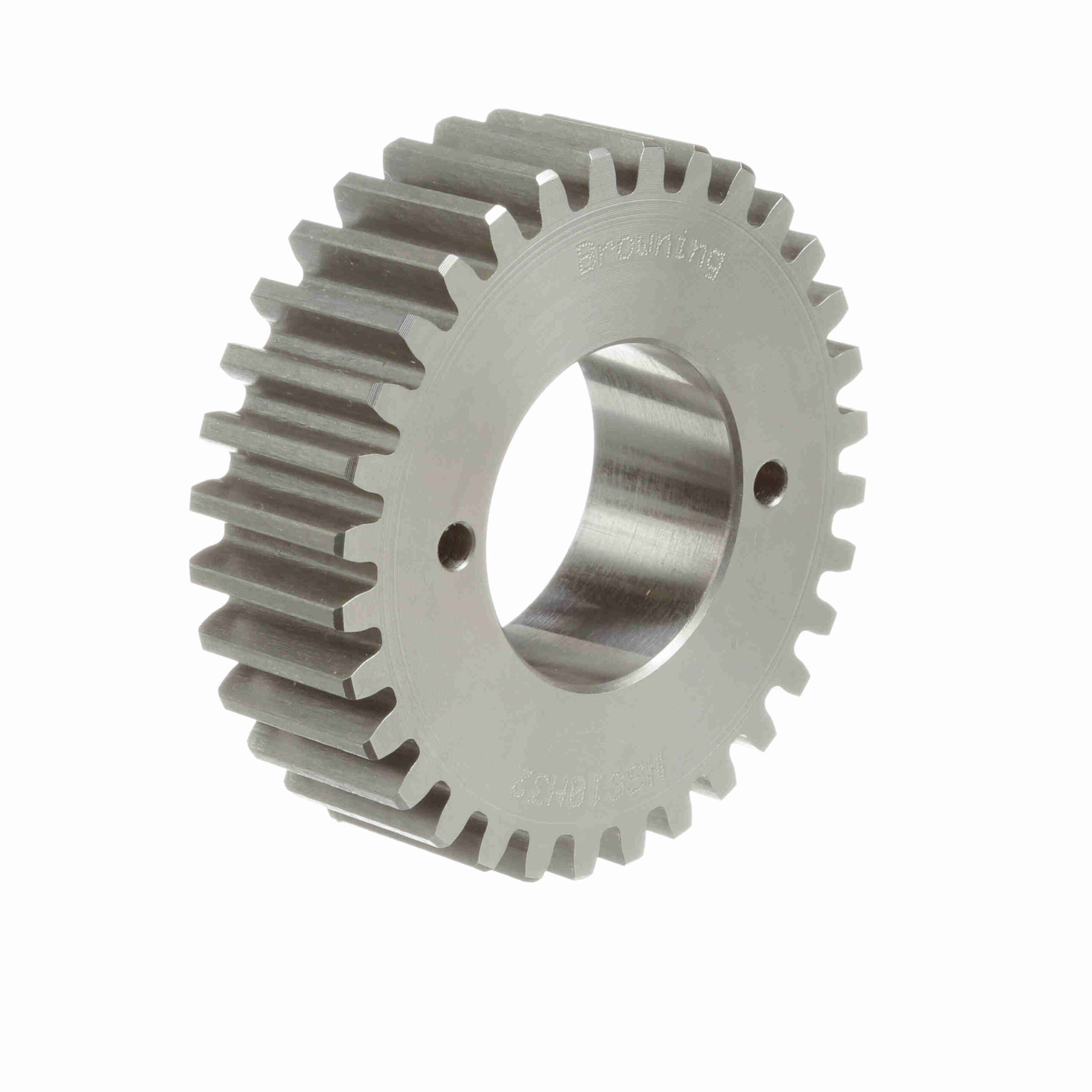

Browning Steel Bushed Bore Spur Gear – 14.5 PA 10 DP – NSS10H32
$309.56
Out of stock
Out of stock
| Outside Diameter (in): | 3.4 in | Face Width (in): | 1 in |
|---|---|---|---|
| Pressure Angle: | 14.5 | Material: | Steel |
| Diametral Pitch: | 10 | Number of Teeth/Threads: | 32 |
| Pitch Diameter (in): | 3.2 in | Bore Type: | Bushed Bore |
| Bore (Min) (in): | 0.375 in | Length Through Bore (in): | 1.625 in |
| Bore (Max) (in): | 1.5 in | Bore Size (in): | 0.375 in |
| Product Type: | Spur Gear | Hub Type: | H |
| Overall Length (in): | 1.625 in | Standard Met: | AGMA |
| UPC: | 662289265343 | Weight: | 1.69 LB |
| Packaged Length: | 3.90 Inches | Packaged Width: | 3.70 Inches |
| Packaged Height: | 1.50 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
