- Large Selection – MVP companion sheaves are offered in A/B, C, 5V & 8V belt sections and from 3-10 grooves giving Browning the largest selection of MVP Companion Sheaves in the industry.
- Statically Balanced – All MVP companion sheaves are statically balanced to assure smooth, vibration free performance.
- VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore.
- The male section with threaded barrel has flat surfaces at 180 degree increments that allow a flat surface for the setscrew to mate with.
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed.
- When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed.
3MV5V80R

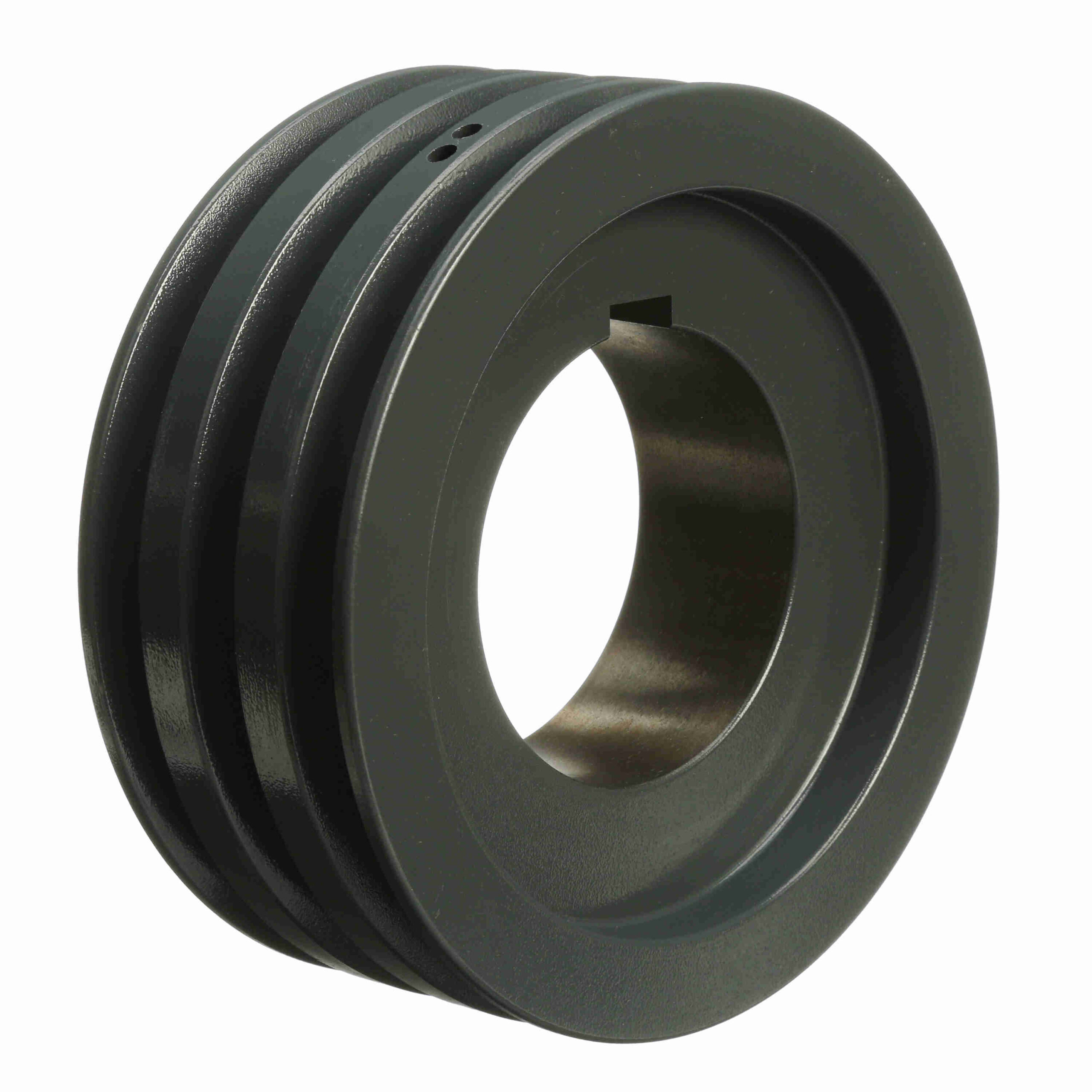

Browning 3 Groove Cast Iron Bushed Bore Multiple Variable Pitch Sheave – 3MV5V80R
$1,838.05
Out of stock
Out of stock
| Number of Grooves: | 3 | Outside Diameter (in): | 8 in |
|---|---|---|---|
| Pitch Diameter Range (5V): | 7.9 | Type of Bore: | Bushed |
| Outside Length (in): | 3.796875 in | Product Type: | MVP Sheaves |
| Material: | Cast Iron | Bore (Min) (in): | 1.125 in |
| Belt Section: | 5V | Pulley Construction: | Web |
| Bore (Max) (in): | 3.75 in | Bushing Used: | R1 |
| Face Width (in): | 3.25 in | UPC: | 662289313181 |
| Weight: | 21.73 LB | Packaged Length: | 9.10 Inches |
| Packaged Width: | 9.10 Inches | Packaged Height: | 3.40 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
