- Browning Finish Bore Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS10F24X1

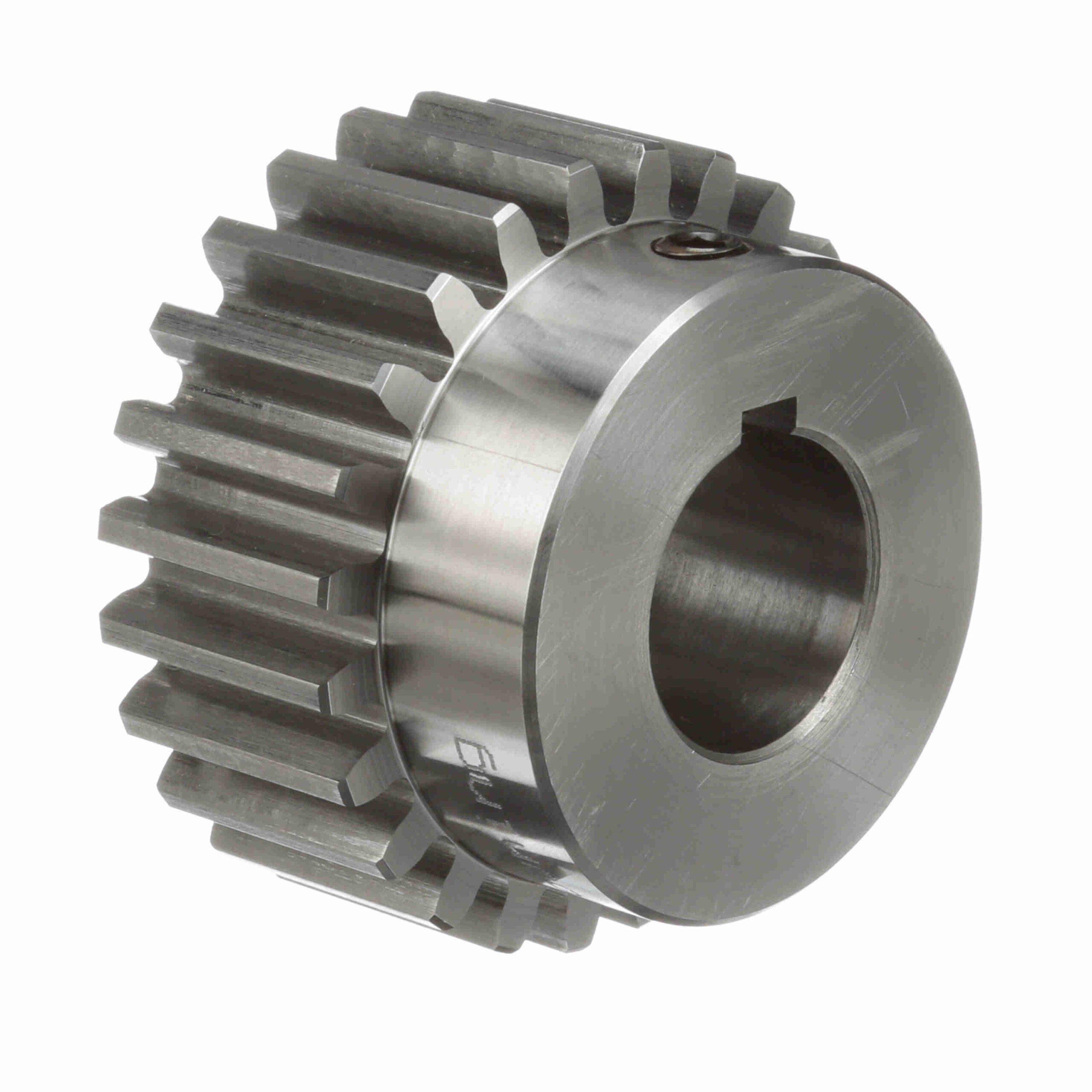

Browning Steel Finished Bore Spur Gear – 14.5 PA 10 DP – NSS10F24X1
Out of stock
| Diametral Pitch: | 10 | Face Width (in): | 1 in |
|---|---|---|---|
| Outside Diameter (in): | 2.6 in | Pitch Diameter (in): | 2.6 in |
| Number of Teeth/Threads: | 24 | Material: | Steel |
| Pressure Angle: | 14.5 | Hub Projection (in): | 0.625 in |
| Hub Diameter (in): | 2.1094 in | Bore (Max) (in): | 1 in |
| Bore Type: | Finished Bore | Bore (Min) (in): | 1 in |
| Length Through Bore (in): | 1.625 in | Bore Size (in): | 1 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 1.625 in |
| UPC: | 662289237579 | Weight: | 1.53 LB |
| Packaged Length: | 3.30 Inches | Packaged Width: | 3.20 Inches |
| Packaged Height: | 2.00 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
