- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS1028

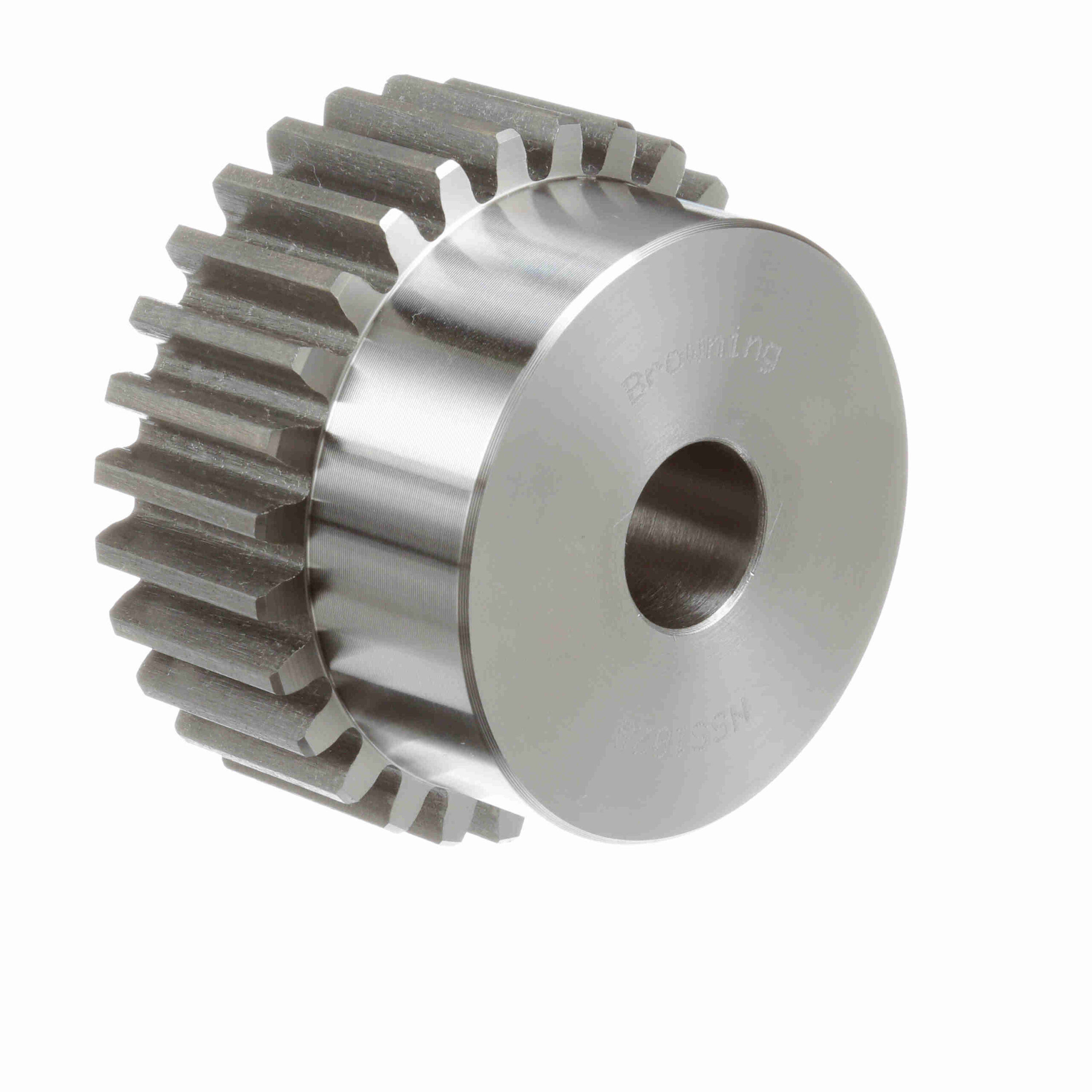

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 10 DP – NSS1028
$215.68
Out of stock
Out of stock
| Material: | Steel | Diametral Pitch: | 10 |
|---|---|---|---|
| Face Width (in): | 1 in | Number of Teeth/Threads: | 28 |
| Pitch Diameter (in): | 2.8 in | Hub Projection (in): | 0.875 in |
| Pressure Angle: | 14.5 | Outside Diameter (in): | 3 in |
| Hub Diameter (in): | 2.5 in | Bore (Min) (in): | 0.75 in |
| Bore (Max) (in): | 1.625 in | Bore Type: | Minimum Plain Bore |
| Length Through Bore (in): | 1.875 in | Bore Size (in): | 0.75 in |
| Product Type: | Spur Gear | Hub Type: | Type B |
| Overall Length (in): | 1.875 in | Standard Met: | AGMA |
| UPC: | 662289243280 | Weight: | 2.71 LB |
| Packaged Length: | 3.50 Inches | Packaged Width: | 3.00 Inches |
| Packaged Height: | 2.00 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
