- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NCS10120

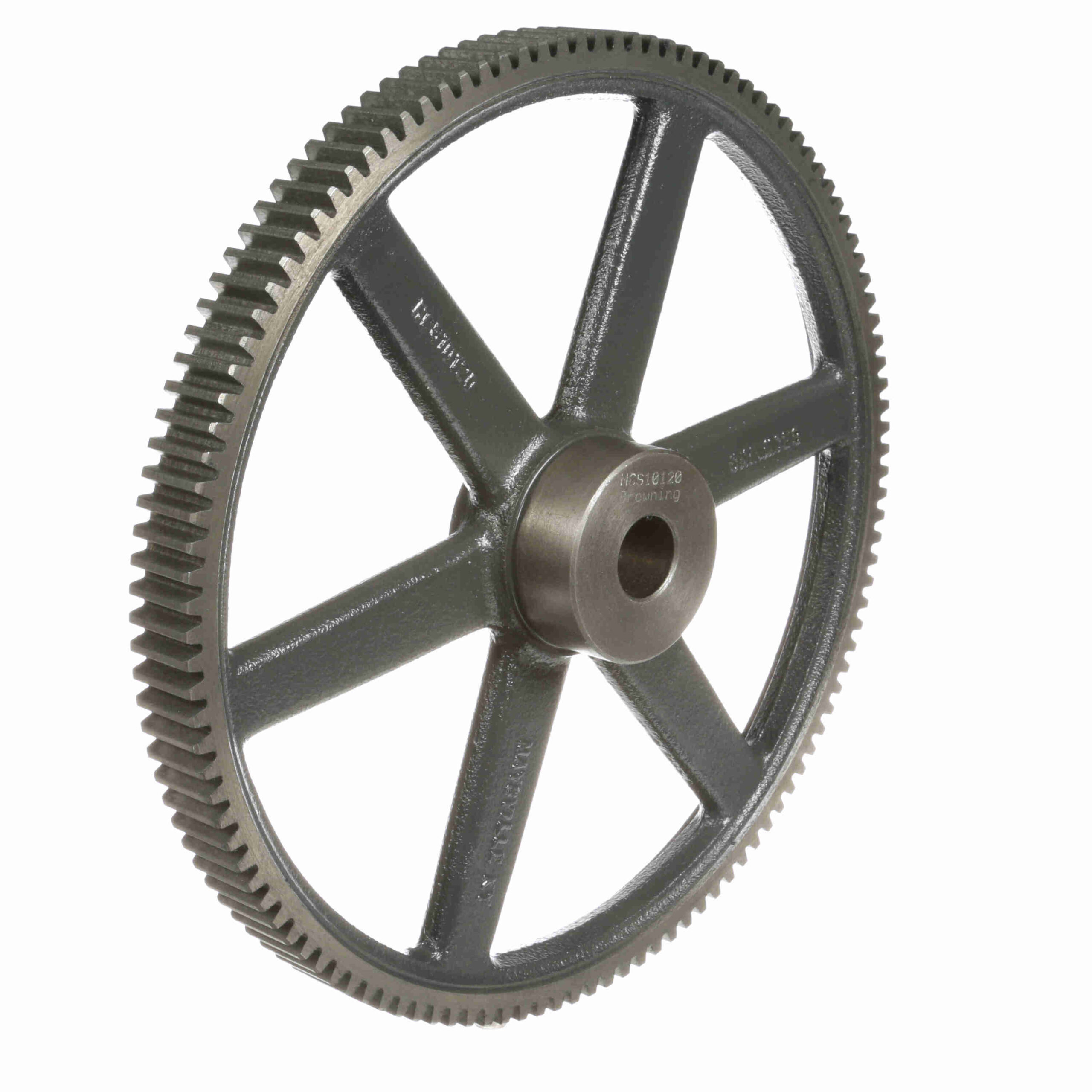

Browning Cast Iron Minimum Plain Bore Spur Gear – 14.5 PA 10 DP – NCS10120
Out of stock
| Hub Diameter (in): | 2.625 in | Pressure Angle: | 14.5 |
|---|---|---|---|
| Face Width (in): | 1 in | Material: | Gray Iron |
| Hub Projection (in): | 1 in | Diametral Pitch: | 10 |
| Number of Teeth/Threads: | 120 | Pitch Diameter (in): | 12 in |
| Outside Diameter (in): | 12.2 in | Bore (Min) (in): | 1 in |
| Bore Type: | Minimum Plain Bore | Length Through Bore (in): | 2 in |
| Bore (Max) (in): | 1.5625 in | Product Type: | Spur Gear |
| Bore Size (in): | 1 in | Hub Type: | Type B |
| Overall Length (in): | 2 in | Standard Met: | AGMA |
| UPC: | 662289183579 | Weight: | 12.30 LB |
| Packaged Length: | 12.75 Inches | Packaged Width: | 12.75 Inches |
| Packaged Height: | 2.63 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
