- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- The NFS Sprag one way clutch is designed with the same overall dimensions as medium series metric ball bearing.
- Manufactured with an inner race containing a key seat and out race containing key slots

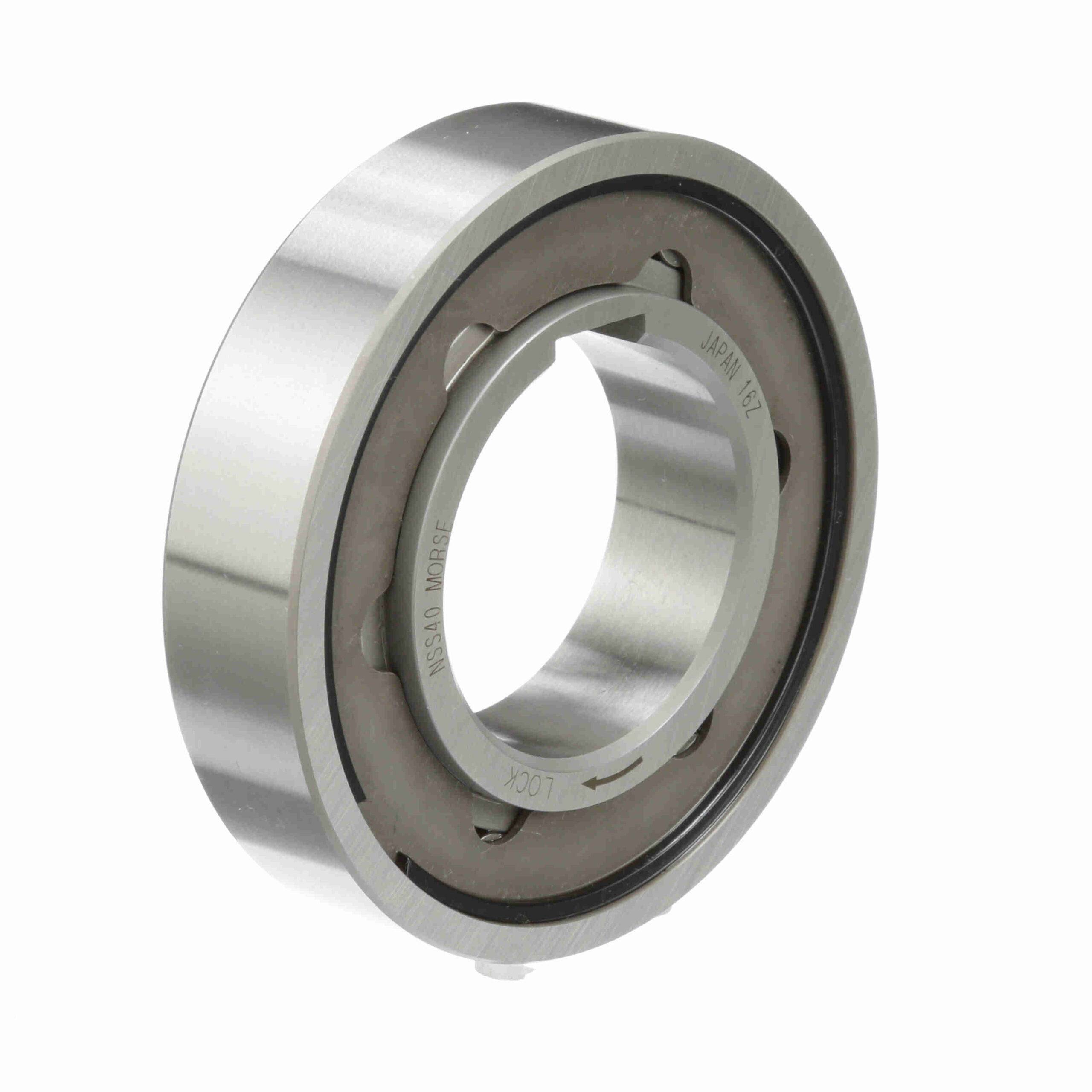

NSS-40 CLUTCH
Morse NSS Series CAM Clutch – NSS-40 CLUTCH
$1,290.30
Out of stock
Out of stock
| Maximum Overrunning Speed - Outer Race (rpm): | 700 | Rated Torque Capacity (ft.-lbs.): | 218.3 |
|---|---|---|---|
| Drag Torque (lb-in): | 1.5936 | Drag Torque (N-m): | .18 |
| Lubrication Type: | The clutches are supplied with a protective coating of oil and must be lubricated before putting into service. | Keyway (mm): | 12 x 2.2 mm |
| Rated Torque Capacity (N-m): | 296 | Model: | NSS 40 |
| Type: | CAM Clutches | Keyway (in): | 0.47 x 0.09 in |
| Maximum Overrunning Speed - Inner Race (rpm): | 1, 400 | Add'l Bearing Support Requirement: | Yes |
| Bore Size (mm): | 40 mm | Overrunning Clutch: | Yes |
| Product Type: | NSS Series | Indexing Clutch: | Yes |
| Backstopping Clutch: | No | Bore Size (in): | 1.574798 in |
| UPC: | 662460387710 | Weight: | 0.95 LB |
| Packaged Length: | 3.50 Inches | Packaged Width: | 3.50 Inches |
| Packaged Height: | 1.00 Inches | HTC: | 8483.60.4040 |
| Country of Origin: | Japan |
