- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- The NFS Sprag one way clutch is designed with the same overall dimensions as medium series metric ball bearing.
- Manufactured with an inner race containing a key seat and out race containing key slots

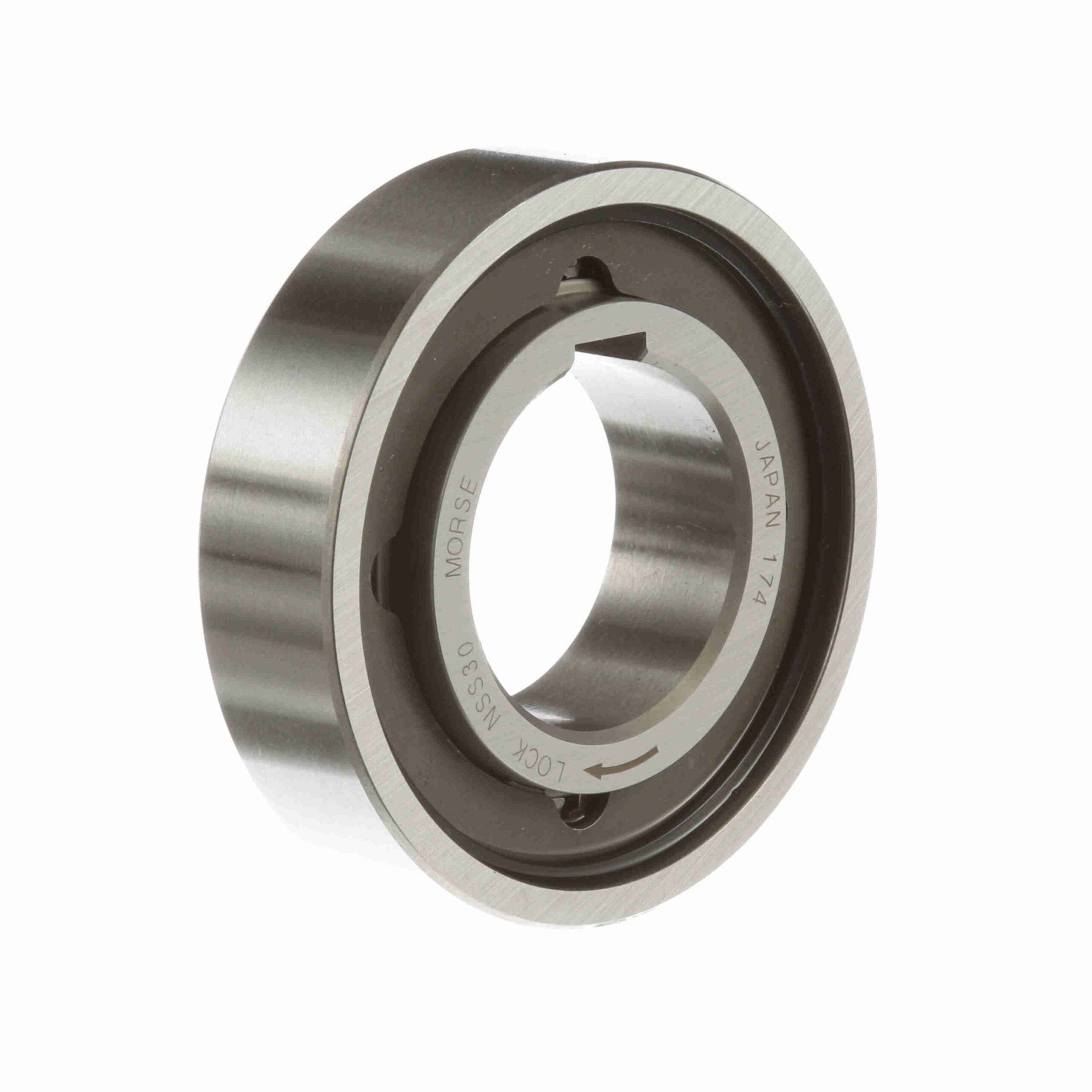

NSS-30 CLUTCH
Morse NSS Series CAM Clutch – NSS-30 CLUTCH
$853.53
Out of stock
Out of stock
| Maximum Overrunning Speed - Outer Race (rpm): | 900 | Rated Torque Capacity (N-m): | 105 |
|---|---|---|---|
| Keyway (in): | 0.32 x 0.08 in | Keyway (mm): | 8 x 2.0 mm |
| Type: | CAM Clutches | Model: | NSS 30 |
| Drag Torque (lb-in): | .2652 | Lubrication Type: | The clutches are supplied with a protective coating of oil and must be lubricated before putting into service. |
| Drag Torque (N-m): | .03 | Maximum Overrunning Speed - Inner Race (rpm): | 1, 800 |
| Rated Torque Capacity (ft.-lbs.): | 77.4 | Add'l Bearing Support Requirement: | Yes |
| Bore Size (mm): | 30 mm | Bore Size (in): | 1.181099 in |
| Product Type: | NSS Series | Overrunning Clutch: | Yes |
| Backstopping Clutch: | No | Indexing Clutch: | Yes |
| RPM Max. -inner Race: | 1, 800 | Overall Diameter (in): | 2.4 in |
| Outer Width (in): | 0.6 in | Inner Race Width (in): | 0.6 in |
| Nominal Overrunning Drag (ft-lb): | 0.022 | UPC: | 662460387697 |
| Weight: | 0.50 LB | Packaged Length: | 2.60 Inches |
| Packaged Width: | 2.50 Inches | Packaged Height: | 1.10 Inches |
| HTC: | 8483.60.4040 | Country of Origin: | Japan |
