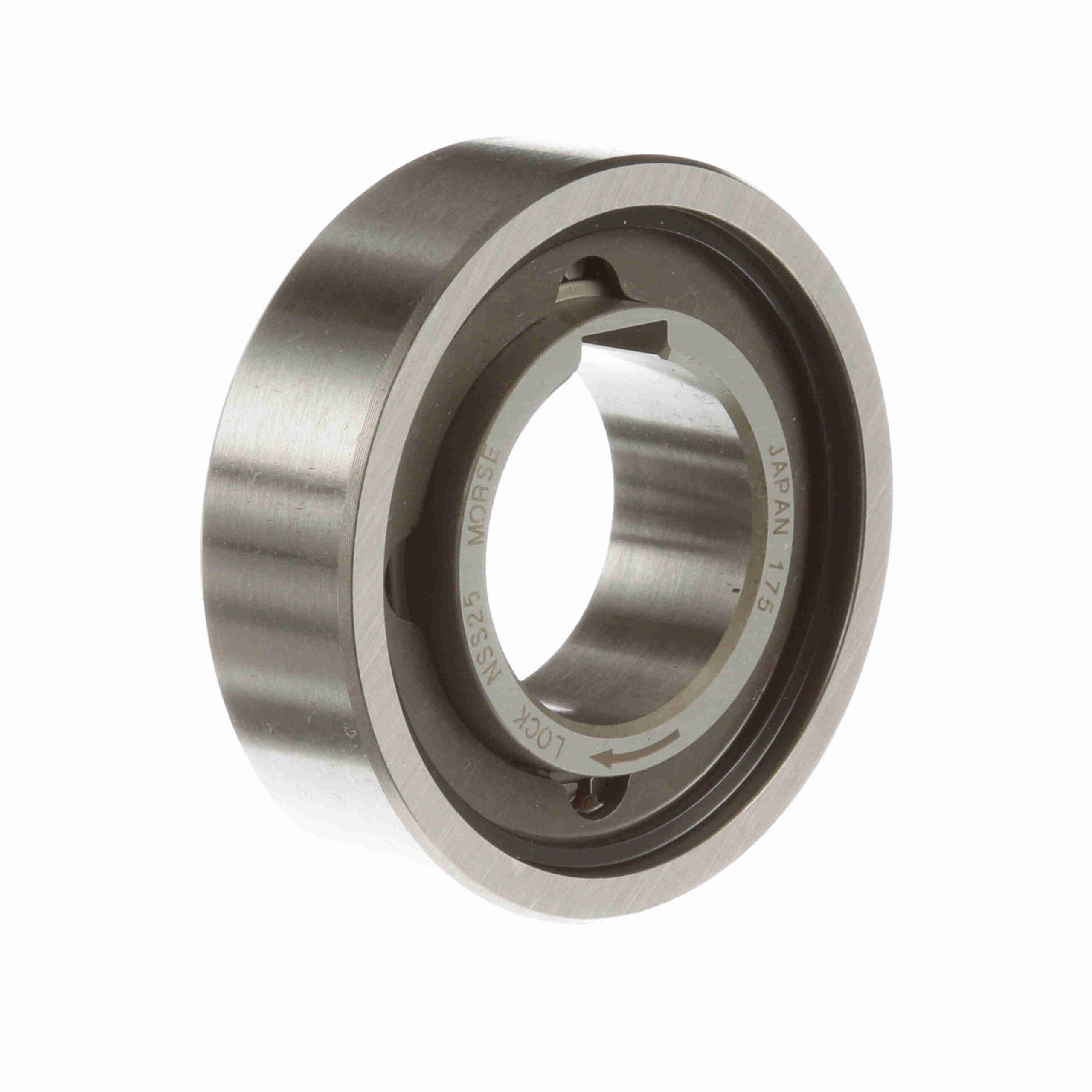

NSS-25 CLUTCH

Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
The NFS Sprag one way clutch is designed with the same overall dimensions as medium series metric ball bearing.
Manufactured with an inner race containing a key seat and out race containing key slots

Rated Torque Capacity (N-m):	56	Lubrication Type:	The clutches are supplied with a protective coating of oil and must be lubricated before putting into service.
Model:	NSS 25	Maximum Overrunning Speed - Inner Race (rpm):	2, 200
Type:	CAM Clutches	Keyway (mm):	8 x 2.0 mm
Keyway (in):	0.32 x 0.08 in	Maximum Overrunning Speed - Outer Race (rpm):	1, 100
Drag Torque (lb-in):	.1776	Drag Torque (N-m):	.02
Rated Torque Capacity (ft.-lbs.):	41.3	Add'l Bearing Support Requirement:	Yes
Bore Size (mm):	25 mm	Overrunning Clutch:	Yes
Indexing Clutch:	Yes	Product Type:	NSS Series
Backstopping Clutch:	No	Bore Size (in):	0.984249 in
UPC:	662460387680	Weight:	0.34 LB
Packaged Length:	2.60 Inches	Packaged Width:	2.50 Inches
Packaged Height:	1.10 Inches	HTC:	8483.60.4040
Country of Origin:	Japan
