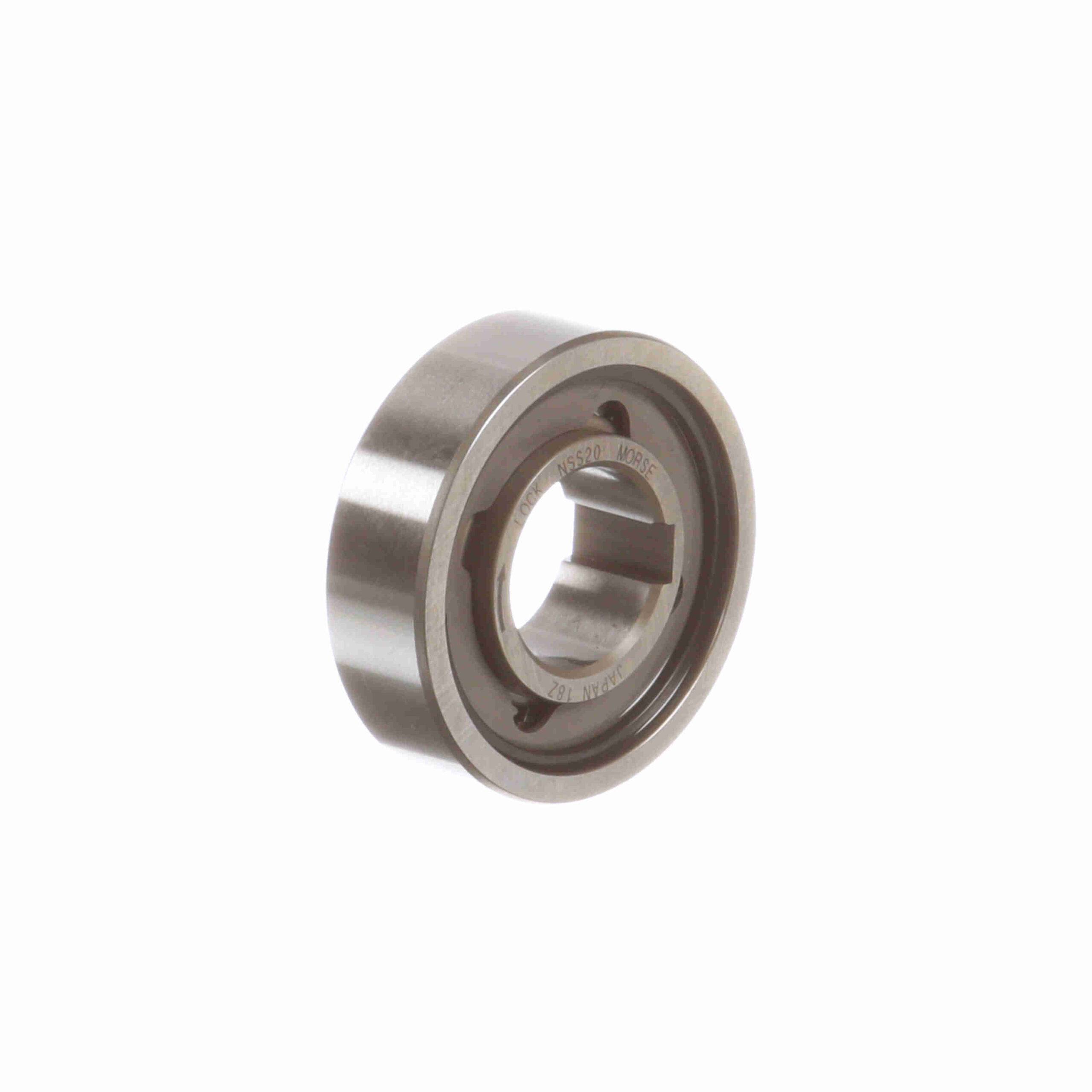

NSS-20 CLUTCH

Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
The NFS Sprag one way clutch is designed with the same overall dimensions as medium series metric ball bearing.
Manufactured with an inner race containing a key seat and out race containing key slots

Drag Torque (lb-in):	.0888	Rated Torque Capacity (N-m):	41
Model:	NSS 20	Keyway (in):	0.24 x 0.06 in
Rated Torque Capacity (ft.-lbs.):	30.2	Type:	CAM Clutches
Keyway (mm):	6 x 1.6 mm	Drag Torque (N-m):	.01
Lubrication Type:	The clutches are supplied with a protective coating of oil and must be lubricated before putting into service.	Maximum Overrunning Speed - Outer Race (rpm):	1, 300
Maximum Overrunning Speed - Inner Race (rpm):	2, 600	Add'l Bearing Support Requirement:	Yes
Overrunning Clutch:	Yes	Bore Size (in):	0.787399 in
Backstopping Clutch:	No	Indexing Clutch:	Yes
Product Type:	NSS Series	Bore Size (mm):	20 mm
UPC:	662460387673	Weight:	0.51 LB
Packaged Length:	2.60 Inches	Packaged Width:	2.50 Inches
Packaged Height:	1.20 Inches	HTC:	8483.60.4040
Country of Origin:	Japan
