- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
NPL-8

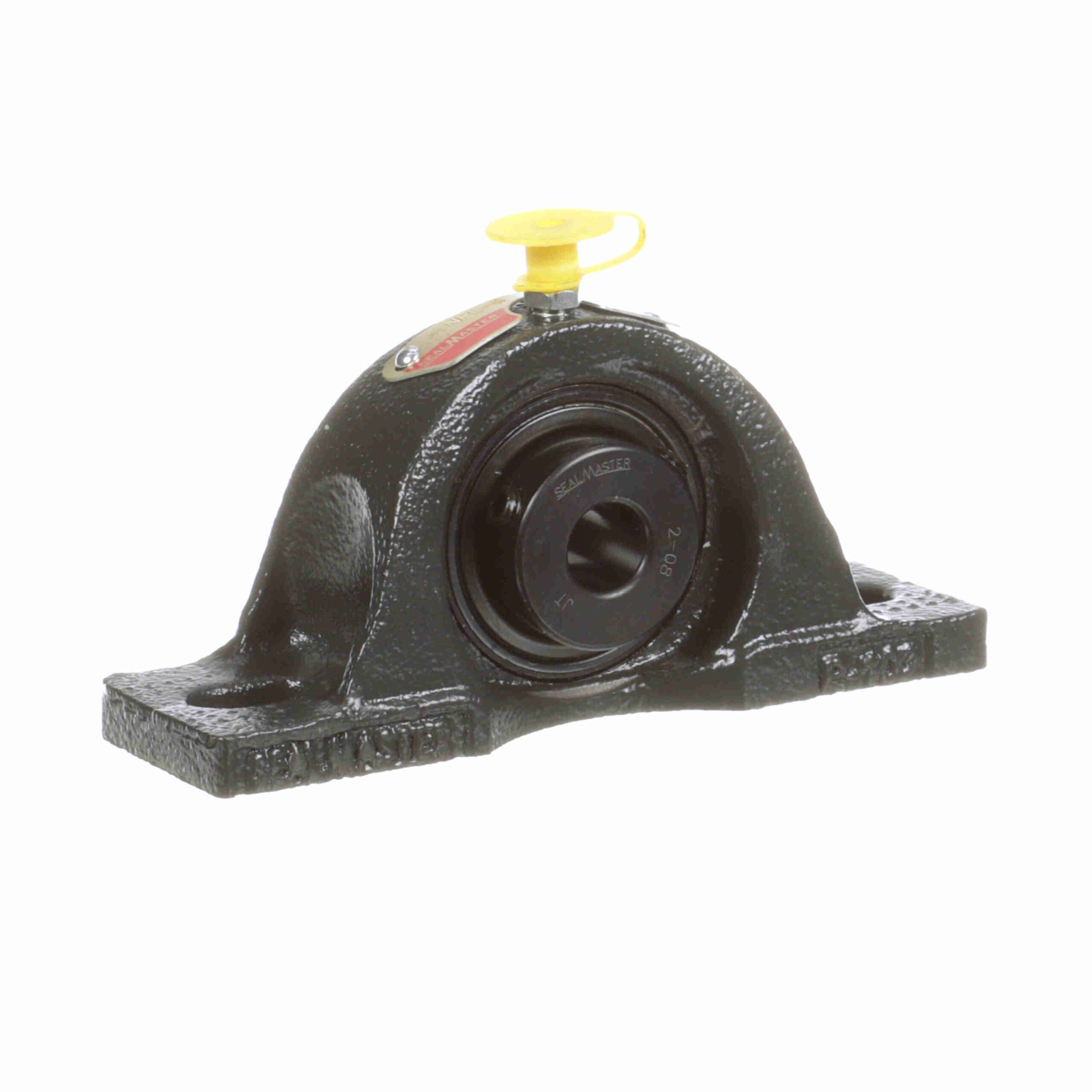

Sealmaster Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – NPL-8
$138.34
Out of stock
Out of stock
| Seal Type: | Felt Labyrinth Seal | Housing Base: | Solid |
|---|---|---|---|
| Internal Clearance: | Standard | Rolling Element: | Ball Bearing |
| Measure Units: | Inch | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 2, 611 lb |
| Misalignment: | ±2.0° Misalignment - Static Only | Housing Construction: | One Piece |
| Housing Color: | Gray | Platform: | Gold Line Ball Bearing |
| End Cap: | No | Outer Ring Land Profile: | Standard |
| Bearing Insert Coating: | Black Oxide Coated | Replaceable Insert: | Yes |
| Misalignment Type: | Static Only | Radial Static Load Capacity (lb): | 1, 444 lb |
| Maximum Speed (RPM): | 7300 rpm | Fixed vs. Expansion: | Fixed |
| Duty/Series: | Standard Duty | Retainer Type: | Land Riding Retainer |
| Housing Material: | Cast Iron | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Locking Type: | Setscrew | Housing Type: | Pillow Block, Two Bolt, Low Base |
| Housing Style: | Pillow Block | Insert Number: | 45140 |
| Ability to Relubricate: | Yes | Inner Race Heat Treat Method: | Zone-Hardened |
| Maximum Operating Temperature (F): | 220 °F | UPC: | 662461000000 |
| Weight: | 1.70 LB | Packaged Length: | 3.19 Inches |
| Packaged Width: | 1.69 Inches | Packaged Height: | 5.25 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
