- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
NPL-207

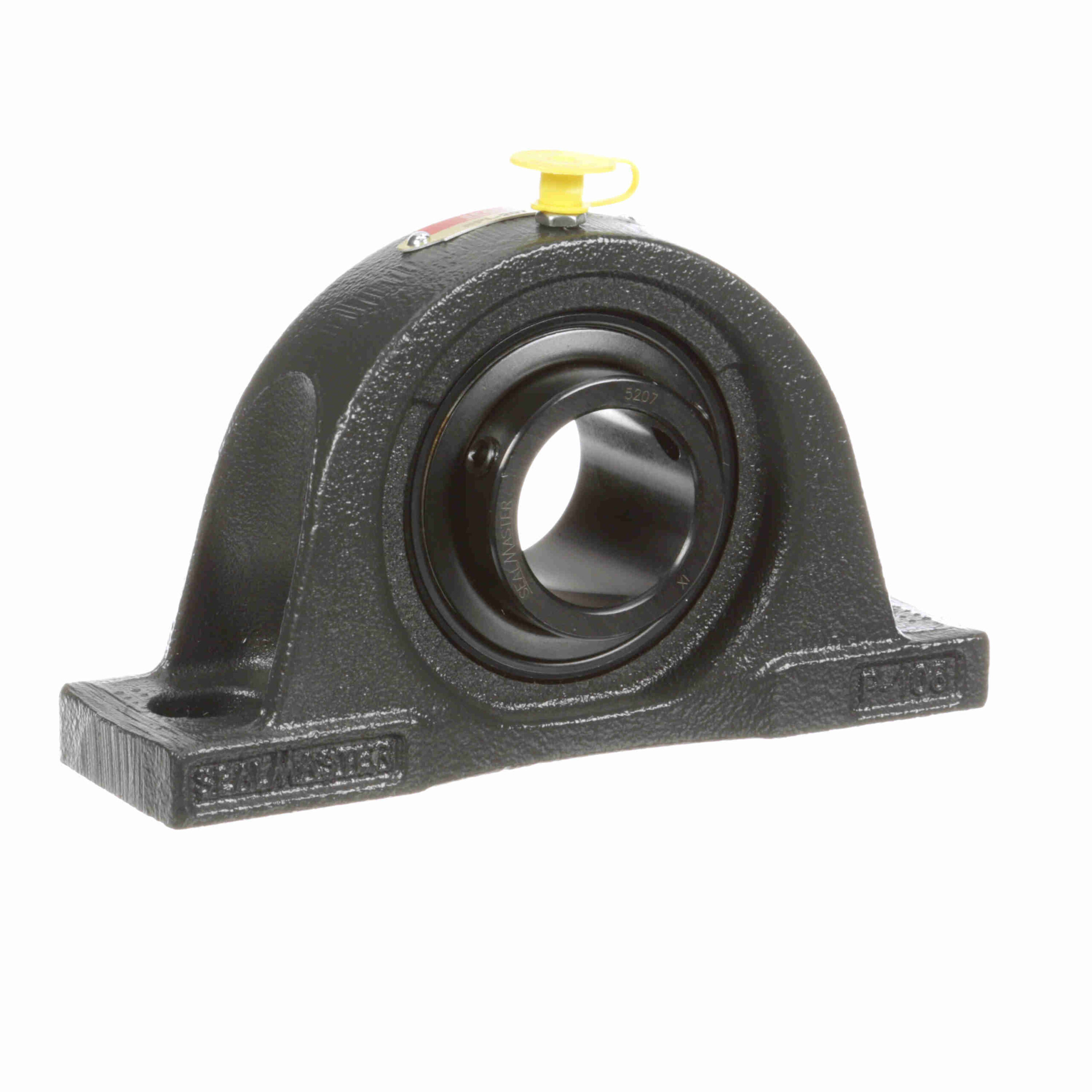

Sealmaster Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – NPL-207
$235.39
Out of stock
Out of stock
| Duty Series: | Standard Duty | Retainer Type: | Land Riding Retainer |
|---|---|---|---|
| Maximum Operating Temperature: | 220 °F | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Expansion: | No | Rolling Element: | Ball Bearing |
| Housing Type: | Pillow Block, Two Bolt, Low Base | Measure Units: | Metric |
| Housing Base: | Solid | Seal Type: | Felt Labyrinth Seal |
| Insert No.: | 5207 | Speed (Max): | 4650 |
| Housing Material: | Cast Iron | Internal Clearance: | Standard |
| Bore Shape: | Straight | Locking Type: | Setscrew |
| Lubrication: | Lithium Complex NLGI 2 Grease | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Housing Construction: | One Piece | Relubricatable: | Yes |
| Misalignment: | ±2.0° Misalignment - Static Only | End Cap: | No |
| Misalignment Type: | Static Only | Replaceable Insert: | Yes |
| Platform: | Gold Line Ball Bearing | Bearing Insert Coating: | Black Oxide Coated |
| Housing Color: | Gray | Outer Ring Land Profile: | Standard |
| UPC: | 662461052570 | Weight: | 4.40 LB |
| Packaged Length: | 4.38 Inches | Packaged Width: | 2.06 Inches |
| Packaged Height: | 6.81 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
