- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
NPL-19

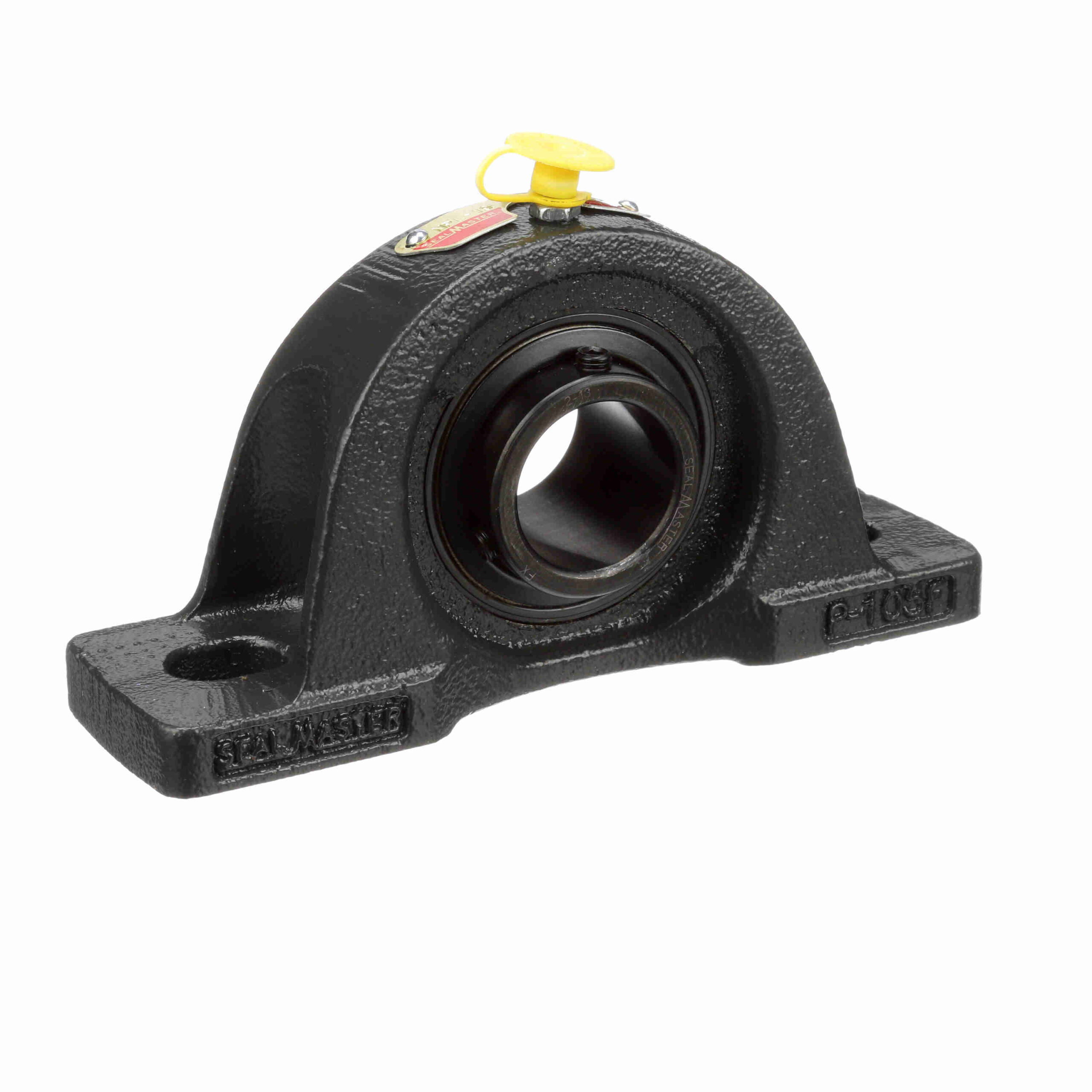

Sealmaster Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – NPL-19
$108.43
Availability: 3 in stock
Availability: 3 in stock
| Insert Material: | 52100 Bearing Steel; Black Oxided | Insert No.: | 2-13 |
|---|---|---|---|
| Measure Units: | Inch | Expansion: | No |
| Duty Series: | Standard Duty | Housing Base: | Solid |
| Housing Material: | Cast Iron | Rolling Element: | Ball Bearing |
| Seal Type: | Felt Labyrinth Seal | Internal Clearance: | Standard |
| Speed (Max): | 5450 | Housing Type: | Pillow Block; Two Bolt; Low Base |
| Retainer Type: | Land Riding Retainer | Maximum Operating Temperature: | 220 °F |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 4, 381 |
| Misalignment: | ±2.0° Misalignment - Static Only | Housing Construction: | One Piece |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Lubrication: | Lithium Complex NLGI 2 Grease |
| Locking Type: | Setscrew | Relubricatable: | Yes |
| Outer Ring Land Profile: | Standard | Misalignment Type: | Static Only |
| Housing Color: | Gray | Bearing Insert Coating: | Black Oxide Coated |
| Replaceable Insert: | Yes | Platform: | Gold Line Ball Bearing |
| End Cap: | No | UPC: | 662461004609 |
| Weight: | 3.44 LB | Packaged Length: | 4.38 Inches |
| Packaged Width: | 2.06 Inches | Packaged Height: | 6.81 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
