- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120? spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster? exclusive lock pin , dimple for direct lubrication and anti-rotation
NPL-16

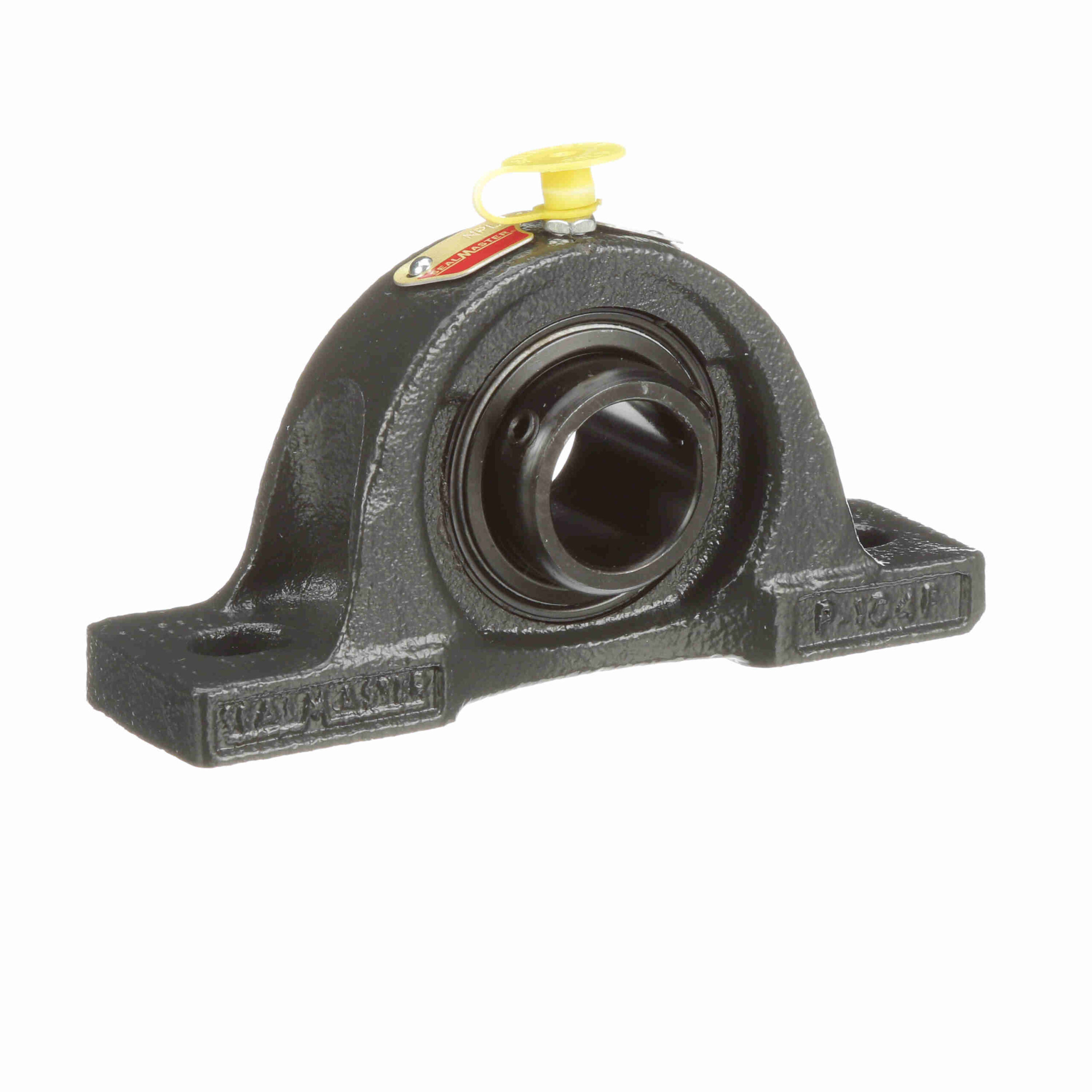

Sealmaster Mounted Cast Iron Two Bolt Low Base Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – NPL-16
$95.19
Availability: 6 in stock
Availability: 6 in stock
| Insert Material: | 52100 Bearing Steel; Black Oxided | Expansion: | No |
|---|---|---|---|
| Maximum Operating Temperature: | 220 °F | Housing Base: | Solid |
| Measure Units: | Inch | Speed (Max): | 6350 |
| Duty Series: | Standard Duty | Rolling Element: | Ball Bearing |
| Housing Type: | Pillow Block; Two Bolt; Low Base | Insert No.: | 2-1 |
| Internal Clearance: | Standard | Housing Material: | Cast Iron |
| Seal Type: | Felt Labyrinth Seal | Retainer Type: | Land Riding Retainer |
| Bore Shape: | Straight | Locking Type: | Setscrew |
| Lubrication: | Lithium Complex NLGI 2 Grease | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Relubricatable: | Yes | Misalignment: | ±2.0° Misalignment - Static Only |
| Housing Construction: | One Piece | Outer Ring Land Profile: | Standard |
| Housing Color: | Gray | Bearing Insert Coating: | Black Oxide Coated |
| End Cap: | No | Misalignment Type: | Static Only |
| Replaceable Insert: | Yes | Platform: | Gold Line Ball Bearing |
| UPC: | 662461004579 | Weight: | 2.10 LB |
| Packaged Length: | 3.5 Inches | Packaged Width: | 1.69 Inches |
| Packaged Height: | 5.75 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
