- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
NP-35 VL

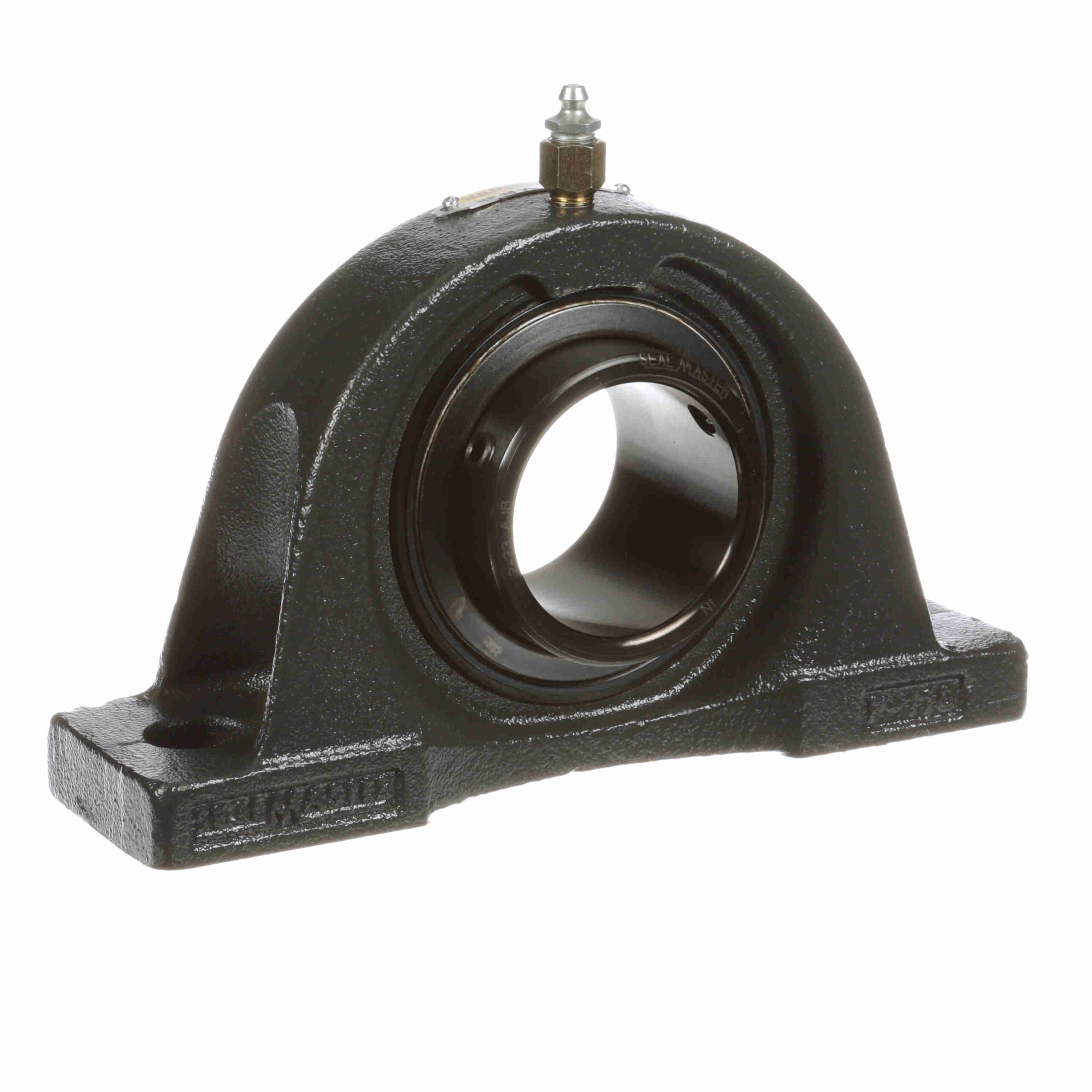

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – High Temperature – NP-35 VL
$366.75
Out of stock
Out of stock
| Expansion: | No | Measure Units: | Inch |
|---|---|---|---|
| Retainer Type: | Land Riding Retainer | Insert No.: | 2-23 AJB |
| Seal Type: | High Temp Labyrinth | Housing Base: | Solid |
| Internal Clearance: | Standard | Housing Material: | Cast Iron |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Maximum Operating Temperature: | 220 °F |
| Housing Type: | Pillow Block, Two Bolt | Rolling Element: | Ball Bearing |
| Duty Series: | Standard Duty | Speed (Max): | 3250 |
| Locking Type: | Setscrew | Lubrication: | Lithium Complex NLGI 2 Grease |
| Housing Construction: | One Piece | Relubricatable: | Yes |
| Misalignment: | ±2.0° Misalignment - Static Only | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Bore Shape: | Straight | Outer Ring Land Profile: | Standard |
| Housing Color: | Gray | Misalignment Type: | Static Only |
| Replaceable Insert: | Yes | Platform: | Gold Line Ball Bearing |
| End Cap: | No | Options: | High Temperature |
| Bearing Insert Coating: | Black Oxide Coated | Operating Temperature Range: | Max. +400°F |
| UPC: | 662461234624 | Weight: | 9.70 LB |
| Packaged Length: | 8.88 Inches | Packaged Width: | 5.94 Inches |
| Packaged Height: | 2.63 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
