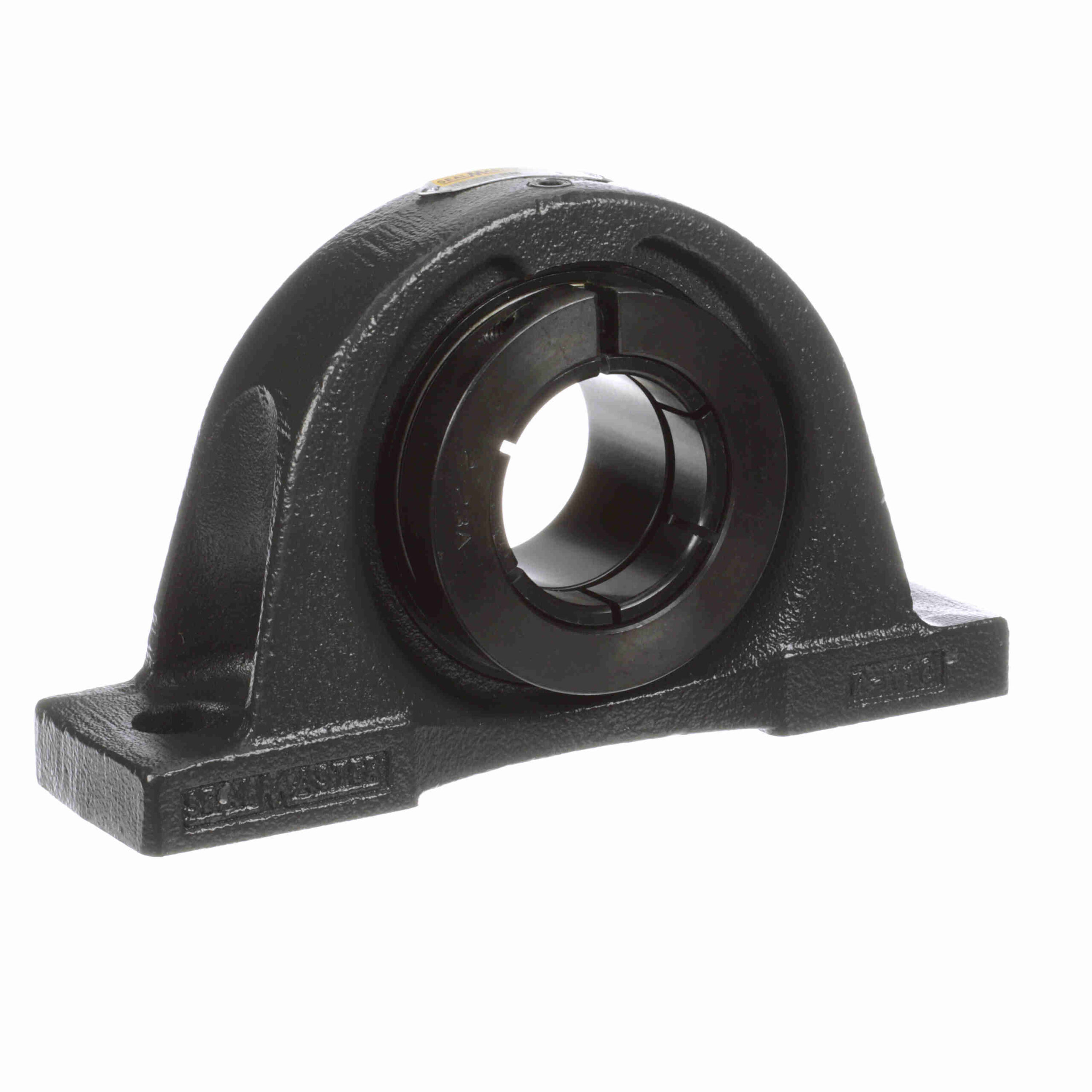

NP-32T RM

Powder coated epoxy cast iron housing with extended inner ring bearings
Skwezloc® concentric locking for near perfect concentricity
Felt labyrinth seal and flinger for dry and dusty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.

Seal Type:	Felt Labyrinth Seal	Rolling Element:	Ball Bearing
Measure Units:	Inch	Housing Base:	Solid
Insert Material:	52100 Bearing Steel, Black Oxided	Internal Clearance:	Standard
Radial Dynamic Load Capacity (lb):	9, 752 lb	Misalignment:	±2.0° Misalignment - Static Only
Housing Construction:	One Piece	Bore Shape:	Straight
Housing Color:	Gray	End Cap:	No
Misalignment Type:	Static Only	Platform:	Gold Line Ball Bearing
Options:	Reduced Maintenance - Lubed for Life	Bearing Insert Coating:	Black Oxide Coated
Outer Ring Land Profile:	Tapered Lands	Replaceable Insert:	Yes
Radial Static Load Capacity (lb):	6, 601 lb	Lubrication Type:	Lithium Complex NLGI 2 Grease
Retainer Type:	Land Riding Retainer	Housing Type:	Pillow Block, Two Bolt
Maximum Speed (RPM):	4500 rpm	Duty/Series:	Standard Duty
Locking Type:	Concentric	Housing Material:	Cast Iron
Housing Style:	Pillow Block	Fixed vs. Expansion:	Fixed
Insert Number:	2-2T RM	Inner Race Heat Treat Method:	Zone-Hardened
Maximum Operating Temperature (F):	220 °F	Ability to Relubricate:	No
UPC:	662461000000	Weight:	10.92 LB
Packaged Length:	8.88 Inches	Packaged Width:	5.94 Inches
Packaged Height:	2.63 Inches	HTC:	8483.20.8040
Country of Origin:	United States of America
