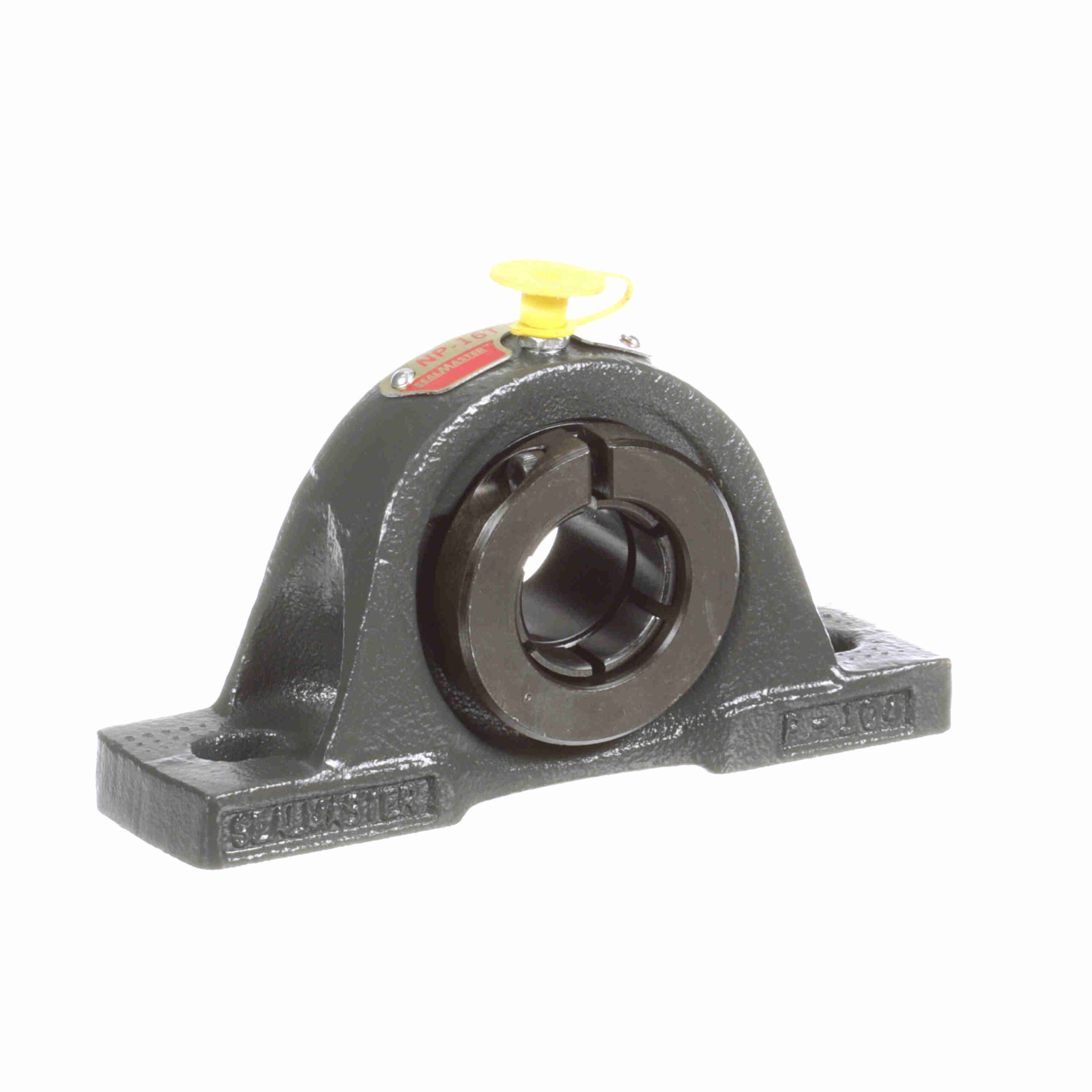

NP-31T XLO

Powder coated epoxy cast iron housing with extended inner ring bearings
Skwezloc® concentric locking for near perfect concentricity
Extra low drag seal cut down felt labyrinth seal and flinger
Nylon retainer to reduce overall drag
Oil lubricated and supplied with an adapter and plug for easy field relubrication
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
Looser than standard housing fit for ease of alignment on lightweight frames

Measure Units:	Inch	Housing Base:	Solid
Insert Material:	52100 Bearing Steel, Black Oxided	Rolling Element:	Ball Bearing
Internal Clearance:	Standard	Seal Type:	Labryinth Seal
Bore Shape:	Straight	Housing Construction:	One Piece
Misalignment:	±2.0° Misalignment - Static Only	Outer Ring Land Profile:	Standard
Replaceable Insert:	Yes	Bearing Insert Coating:	Black Oxide Coated
Misalignment Type:	Static Only	Platform:	Gold Line Ball Bearing
Options:	Extra Low Drag	End Cap:	No
Housing Color:	Gray	Housing Style:	Pillow Block
Locking Type:	Concentric	Fixed vs. Expansion:	Fixed
Maximum Speed (RPM):	1400 rpm	Housing Material:	Cast Iron
Lubrication Type:	Oil Coated Only - No Factory Grease Fill	Retainer Type:	Land Riding Retainer
Duty/Series:	Standard Duty	Housing Type:	Pillow Block, Two Bolt
Ability to Relubricate:	Yes	Insert Number:	2-115T XLO
Maximum Operating Temperature (F):	220 °F	Inner Race Heat Treat Method:	Zone-Hardened
UPC:	662461000000	Weight:	8.50 LB
Packaged Length:	9 Inches	Packaged Width:	5.19 Inches
Packaged Height:	2.38 Inches	HTC:	8483.20.8040
Country of Origin:	United States of America
