- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc® concentric locking for near perfect concentricity
- High temperature felt labyrinth seal and flinger for dry and dusty environment
- Increased internal clearance and high temperature grease
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
NP-31T HT

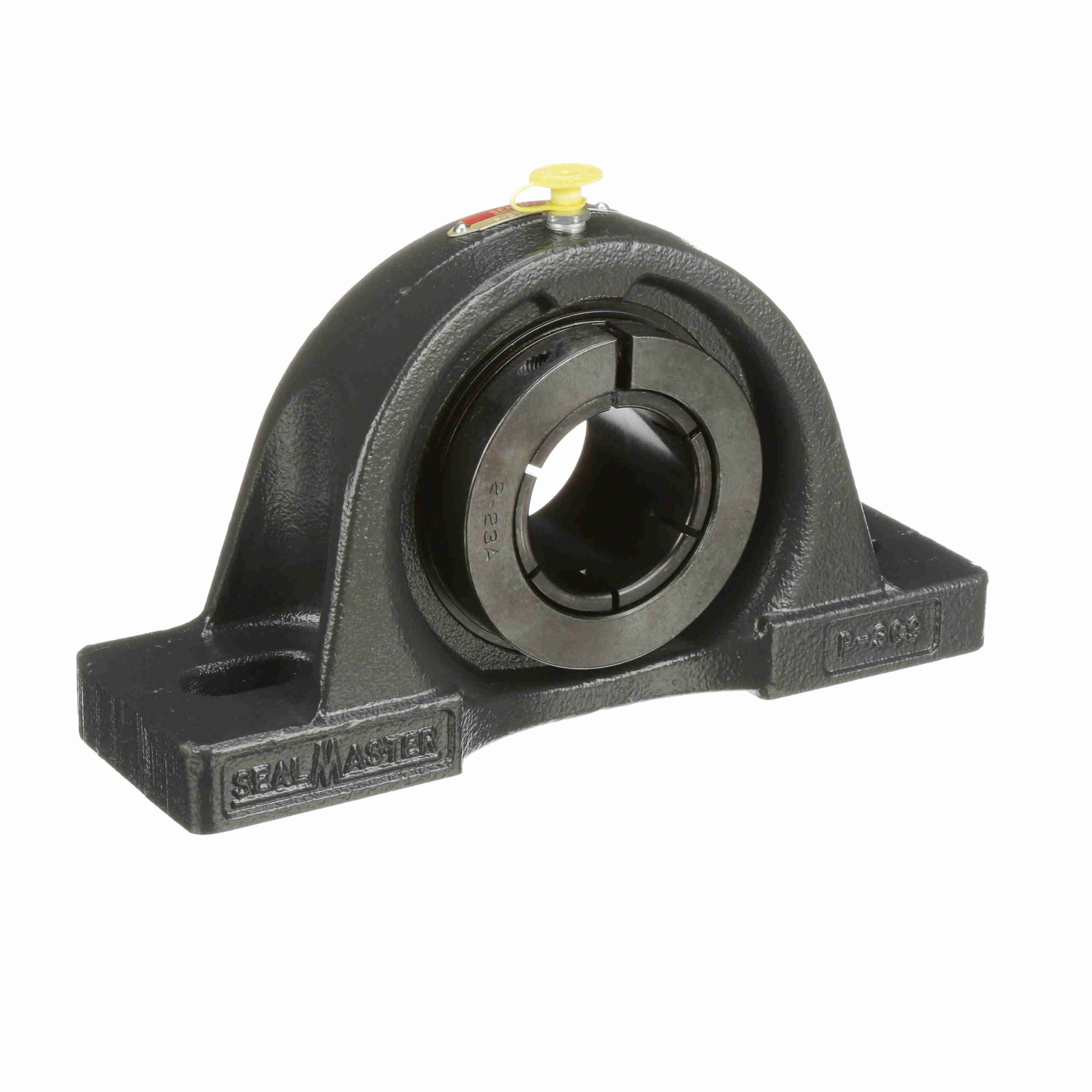

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – High Temperature – NP-31T HT
$692.17
Out of stock
Out of stock
| Housing Base: | Solid | Insert Material: | 52100 Bearing Steel, Black Oxided |
|---|---|---|---|
| Internal Clearance: | Increased | Measure Units: | Inch |
| Seal Type: | High Temp Labyrinth | Rolling Element: | Ball Bearing |
| Bore Shape: | Straight | Misalignment: | ±2.0° Misalignment - Static Only |
| Housing Construction: | One Piece | Platform: | Gold Line Ball Bearing |
| Replaceable Insert: | Yes | Housing Color: | Gray |
| Outer Ring Land Profile: | Standard | Misalignment Type: | Static Only |
| End Cap: | No | Bearing Insert Coating: | Black Oxide Coated |
| Options: | High Temperature | Fixed vs. Expansion: | Fixed |
| Housing Type: | Pillow Block, Two Bolt | Housing Material: | Cast Iron |
| Housing Style: | Pillow Block | Duty/Series: | Standard Duty |
| Lubrication Type: | Synthetic NLGI 2 High Temperature Grease | Retainer Type: | Land Riding Retainer |
| Maximum Speed (RPM): | 1550 rpm | Locking Type: | Concentric |
| Ability to Relubricate: | Yes | Maximum Operating Temperature (F): | 400 °F |
| Operating Temperature Range (F): | Max. +400°F °F | Inner Race Heat Treat Method: | Zone-Hardened |
| Insert Number: | 2-115T HT | UPC: | 662461000000 |
| Weight: | 8.50 LB | Packaged Length: | 9 Inches |
| Packaged Width: | 5.19 Inches | Packaged Height: | 2.38 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
