- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc® concentric locking for near perfect concentricity
- High temperature felt labyrinth seal and flinger for dry and dusty environment
- Increased internal clearance and high temperature grease
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
NP-24T HT

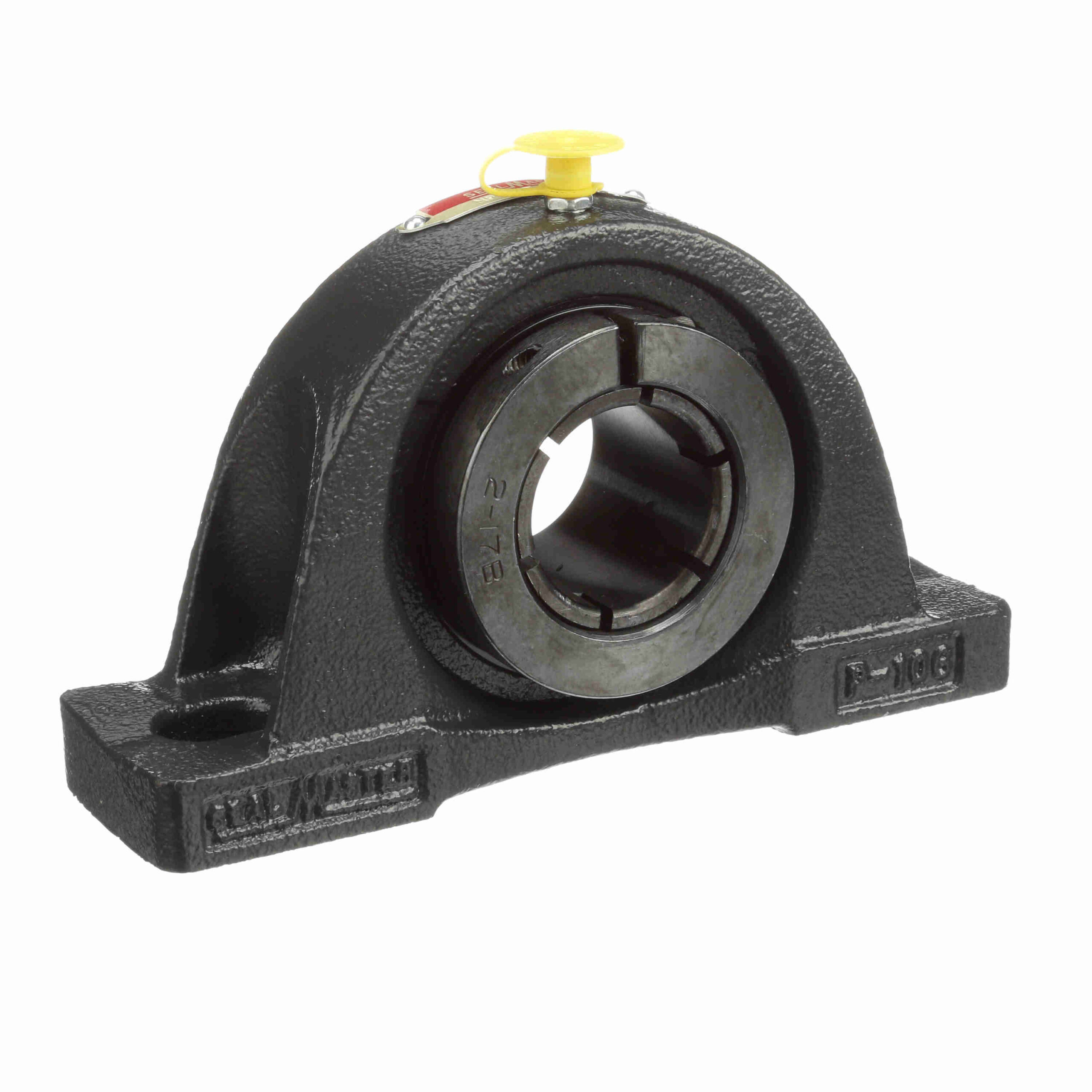

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – High Temperature – NP-24T HT
$547.21
Out of stock
Out of stock
| Measure Units: | Inch | Internal Clearance: | Increased |
|---|---|---|---|
| Housing Base: | Solid | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Rolling Element: | Ball Bearing | Seal Type: | High Temp Labyrinth |
| Bore Shape: | Straight | Housing Construction: | One Piece |
| Misalignment: | ±2.0° Misalignment - Static Only | Housing Color: | Gray |
| Platform: | Gold Line Ball Bearing | Replaceable Insert: | Yes |
| Misalignment Type: | Static Only | Bearing Insert Coating: | Black Oxide Coated |
| End Cap: | No | Outer Ring Land Profile: | Standard |
| Options: | High Temperature | Retainer Type: | Land Riding Retainer |
| Housing Material: | Cast Iron | Lubrication Type: | Synthetic NLGI 2 High Temperature Grease |
| Maximum Speed (RPM): | 1800 rpm | Housing Style: | Pillow Block |
| Fixed vs. Expansion: | Fixed | Locking Type: | Concentric |
| Duty/Series: | Standard Duty | Housing Type: | Pillow Block, Two Bolt |
| Insert Number: | 2-18T HT | Operating Temperature Range (F): | Max. +400°F °F |
| Ability to Relubricate: | Yes | Maximum Operating Temperature (F): | 400 °F |
| Inner Race Heat Treat Method: | Zone-Hardened | UPC: | 662461000000 |
| Weight: | 6.00 LB | Packaged Length: | 4.63 Inches |
| Packaged Width: | 2.31 Inches | Packaged Height: | 7.5 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
