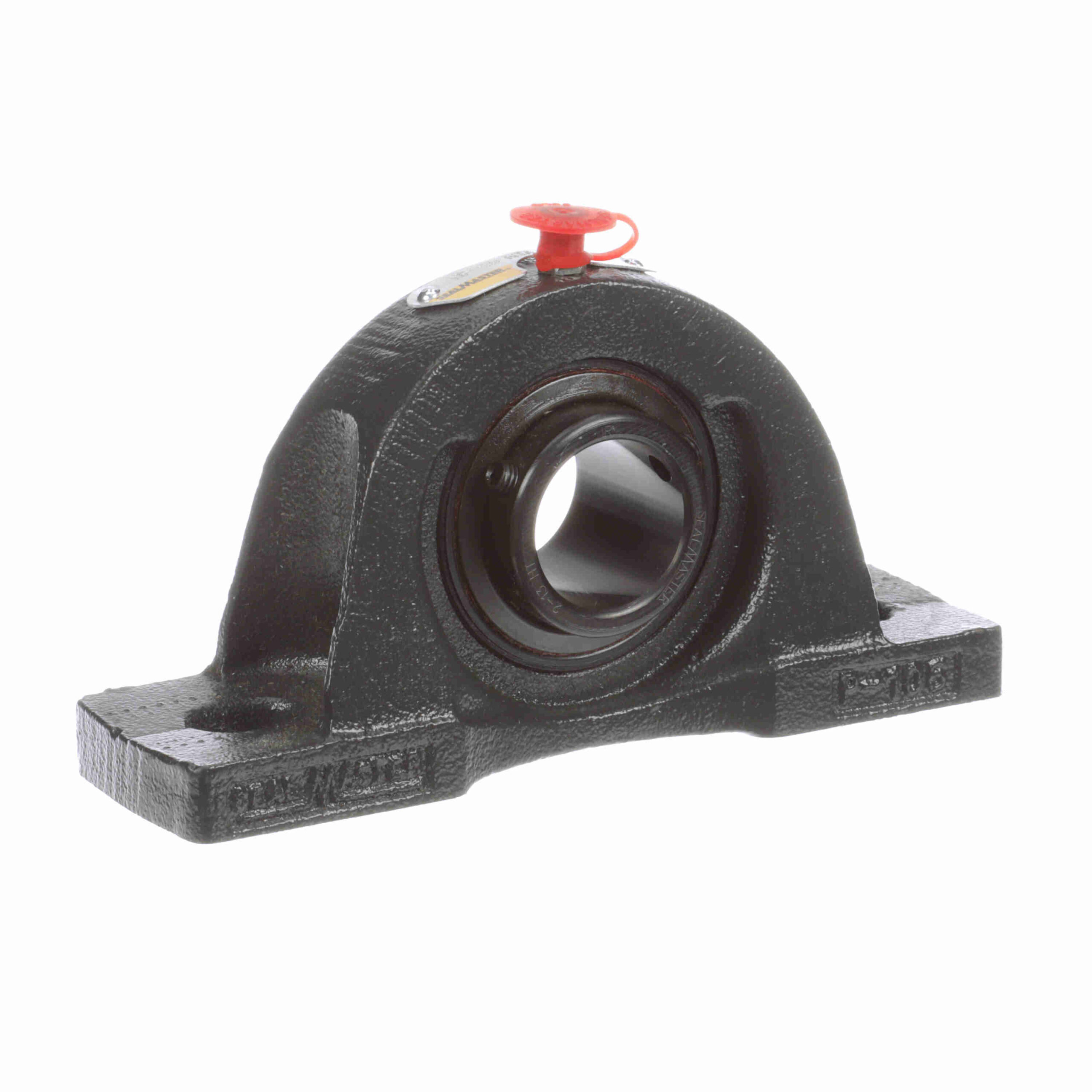

NP-19 HTA

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
High temperature felt labyrinth seal and flinger for dry and dusty environment
Increased internal clearance and high temperature grease
Looser than standard housing fit for ease of alignment on lightweight frames
Air Handling noise check for quiet operation
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Insert Material:	52100 Bearing Steel, Black Oxided	Measure Units:	Inch
Rolling Element:	Ball Bearing	Seal Type:	High Temp Labyrinth
Internal Clearance:	Increased	Housing Base:	Solid
Bore Shape:	Straight	Housing Construction:	One Piece
Misalignment:	±2.0° Misalignment - Static Only	Bearing Insert Coating:	Black Oxide Coated
End Cap:	No	Housing Color:	Gray
Replaceable Insert:	Yes	Outer Ring Land Profile:	Standard
Options:	High Temperature and Air Handling Housing Fit, Noise Tested	Misalignment Type:	Static Only
Platform:	Gold Line Ball Bearing	Locking Type:	Setscrew
Retainer Type:	Land Riding Retainer	Fixed vs. Expansion:	Fixed
Housing Material:	Cast Iron	Housing Type:	Pillow Block, Two Bolt
Housing Style:	Pillow Block	Maximum Speed (RPM):	2400 rpm
Lubrication Type:	Synthetic NLGI 2 High Temperature Grease	Duty/Series:	Standard Duty
Maximum Operating Temperature (F):	400 °F	Insert Number:	2-13 HT
Operating Temperature Range (F):	Max. +400°F °F	Ability to Relubricate:	Yes
Inner Race Heat Treat Method:	Zone-Hardened	UPC:	662461000000
Weight:	3.60 LB	Packaged Length:	4.38 Inches
Packaged Width:	2.06 Inches	Packaged Height:	6.81 Inches
HTC:	8483.20.8040	Country of Origin:	United States of America
