- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Single lip contact seal
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
NP-18C

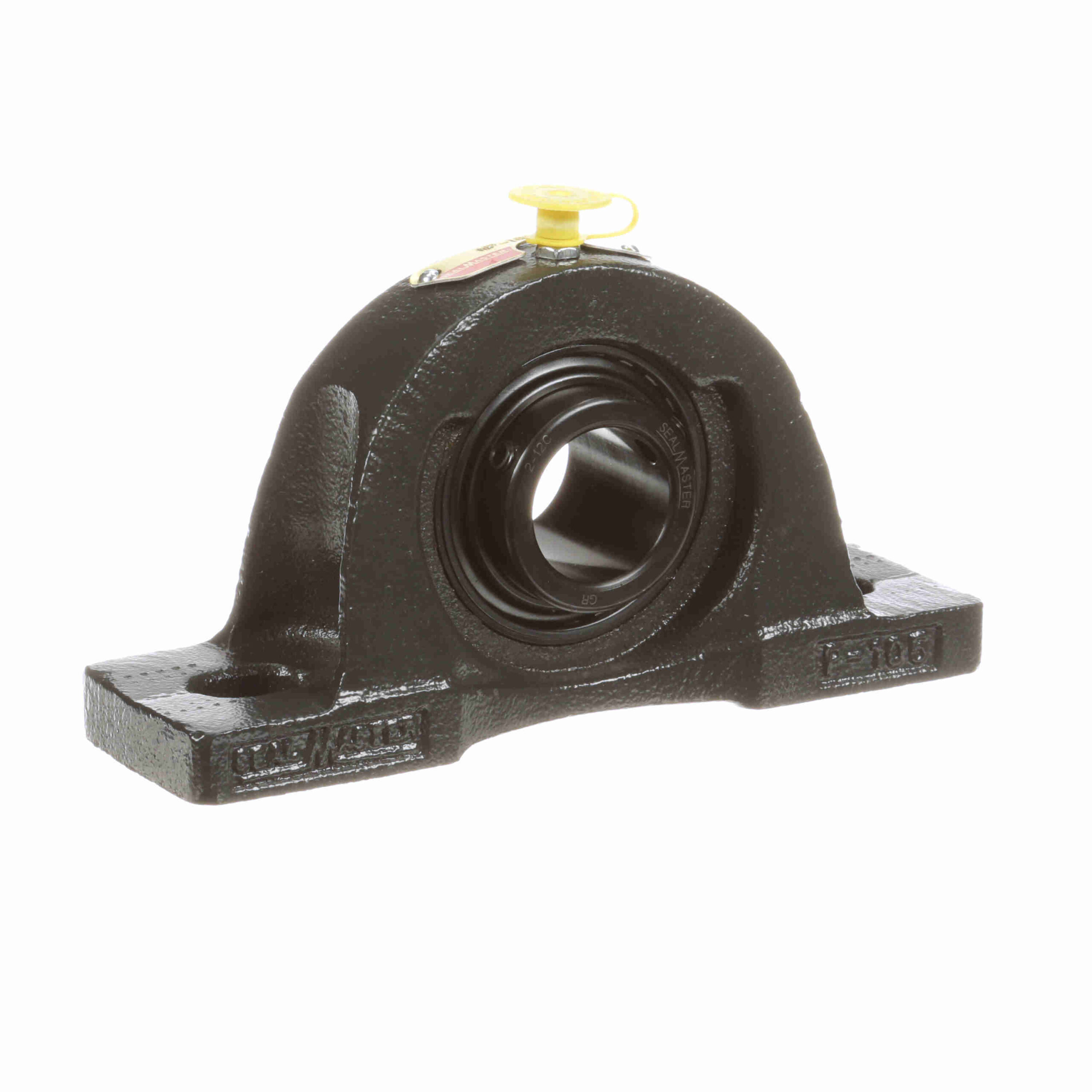

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – NP-18C
$193.64
Out of stock
Out of stock
| Housing Base: | Solid | Insert Material: | 52100 Bearing Steel, Black Oxided |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Internal Clearance: | Standard |
| Measure Units: | Inch | Seal Type: | Single Lip Contact Seal |
| Bore Shape: | Straight | Misalignment: | ±2.0° Misalignment - Static Only |
| Housing Construction: | One Piece | Bearing Insert Coating: | Black Oxide Coated |
| Outer Ring Land Profile: | Standard | Misalignment Type: | Static Only |
| Housing Color: | Gray | Platform: | Gold Line Ball Bearing |
| End Cap: | No | Replaceable Insert: | Yes |
| Lubrication Type: | Lithium Complex NLGI 2 Grease | Locking Type: | Setscrew |
| Housing Type: | Pillow Block, Two Bolt | Maximum Speed (RPM): | 5450 rpm |
| Housing Style: | Pillow Block | Fixed vs. Expansion: | Fixed |
| Retainer Type: | Land Riding Retainer | Duty/Series: | Standard Duty |
| Housing Material: | Cast Iron | Insert Number: | 2-12C |
| Inner Race Heat Treat Method: | Zone-Hardened | Maximum Operating Temperature (F): | 220 °F |
| Ability to Relubricate: | Yes | UPC: | 662461000000 |
| Weight: | 3.75 LB | Packaged Length: | 4.38 Inches |
| Packaged Width: | 2.06 Inches | Packaged Height: | 6.81 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
