- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
NP-17

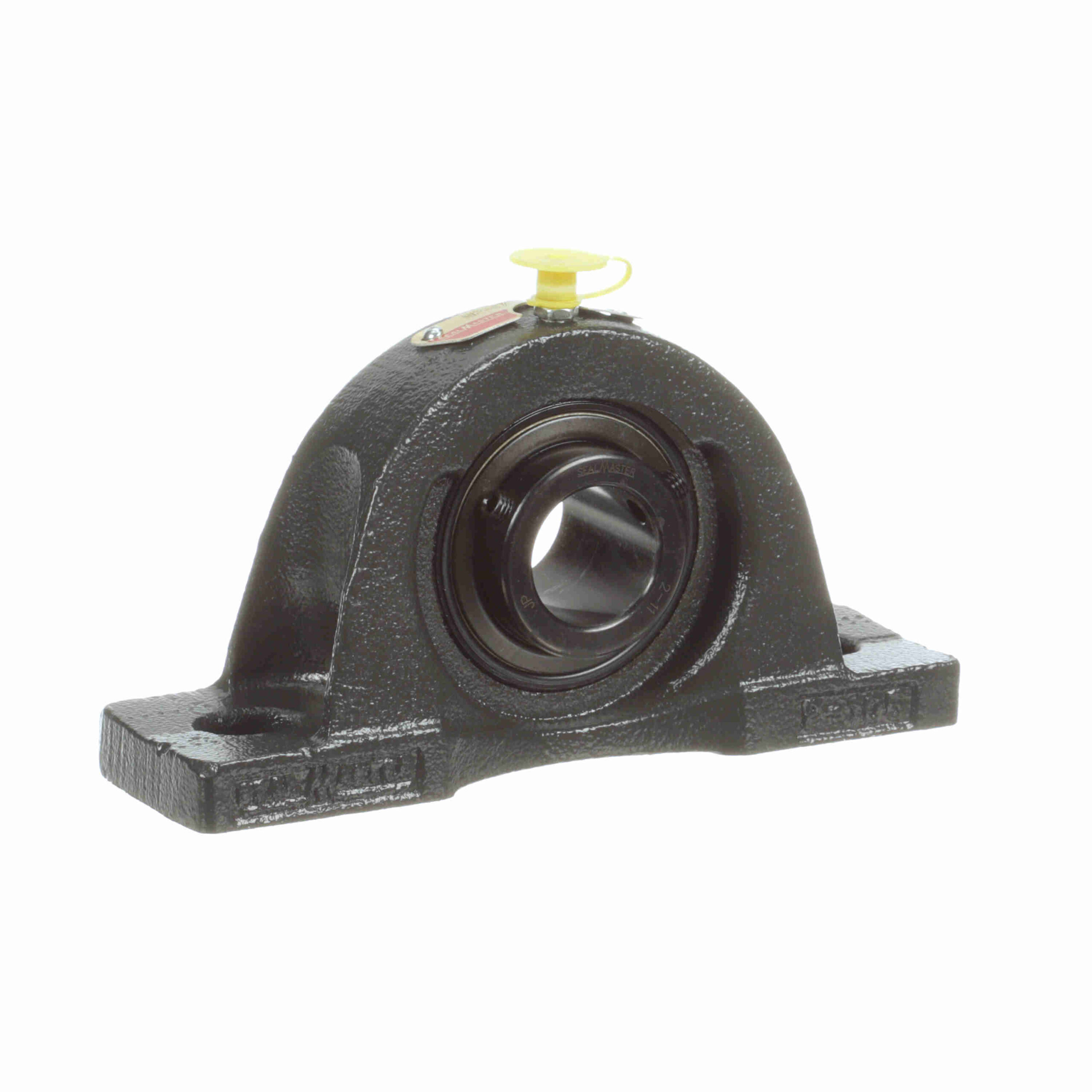

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – NP-17
$213.88
Out of stock
Out of stock
| Insert Material: | 52100 Bearing Steel, Black Oxided | Internal Clearance: | Standard |
|---|---|---|---|
| Measure Units: | Inch | Rolling Element: | Ball Bearing |
| Housing Base: | Solid | Seal Type: | Felt Labyrinth Seal |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 4, 381 lb |
| Misalignment: | ±2.0° Misalignment - Static Only | Housing Construction: | One Piece |
| Outer Ring Land Profile: | Standard | Replaceable Insert: | Yes |
| Misalignment Type: | Static Only | Housing Color: | Gray |
| End Cap: | No | Platform: | Gold Line Ball Bearing |
| Bearing Insert Coating: | Black Oxide Coated | Radial Static Load Capacity (lb): | 2, 567 lb |
| Duty/Series: | Standard Duty | Locking Type: | Setscrew |
| Lubrication Type: | Lithium Complex NLGI 2 Grease | Housing Material: | Cast Iron |
| Housing Type: | Pillow Block, Two Bolt | Maximum Speed (RPM): | 5450 rpm |
| Retainer Type: | Land Riding Retainer | Housing Style: | Pillow Block |
| Fixed vs. Expansion: | Fixed | Inner Race Heat Treat Method: | Zone-Hardened |
| Maximum Operating Temperature (F): | 220 °F | Insert Number: | 45232 |
| Ability to Relubricate: | Yes | UPC: | 662461000000 |
| Weight: | 3.85 LB | Packaged Length: | 4.38 Inches |
| Packaged Width: | 2.06 Inches | Packaged Height: | 6.81 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
