- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc® concentric locking for near perfect concentricity
- Labyrinth seal and flinger with oil lubrication for reduced friction and adapter for relubrication
- Reduced internal clearance for less overall end play
- Looser than standard housing fit for ease of alignment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
NP-16TX ALP

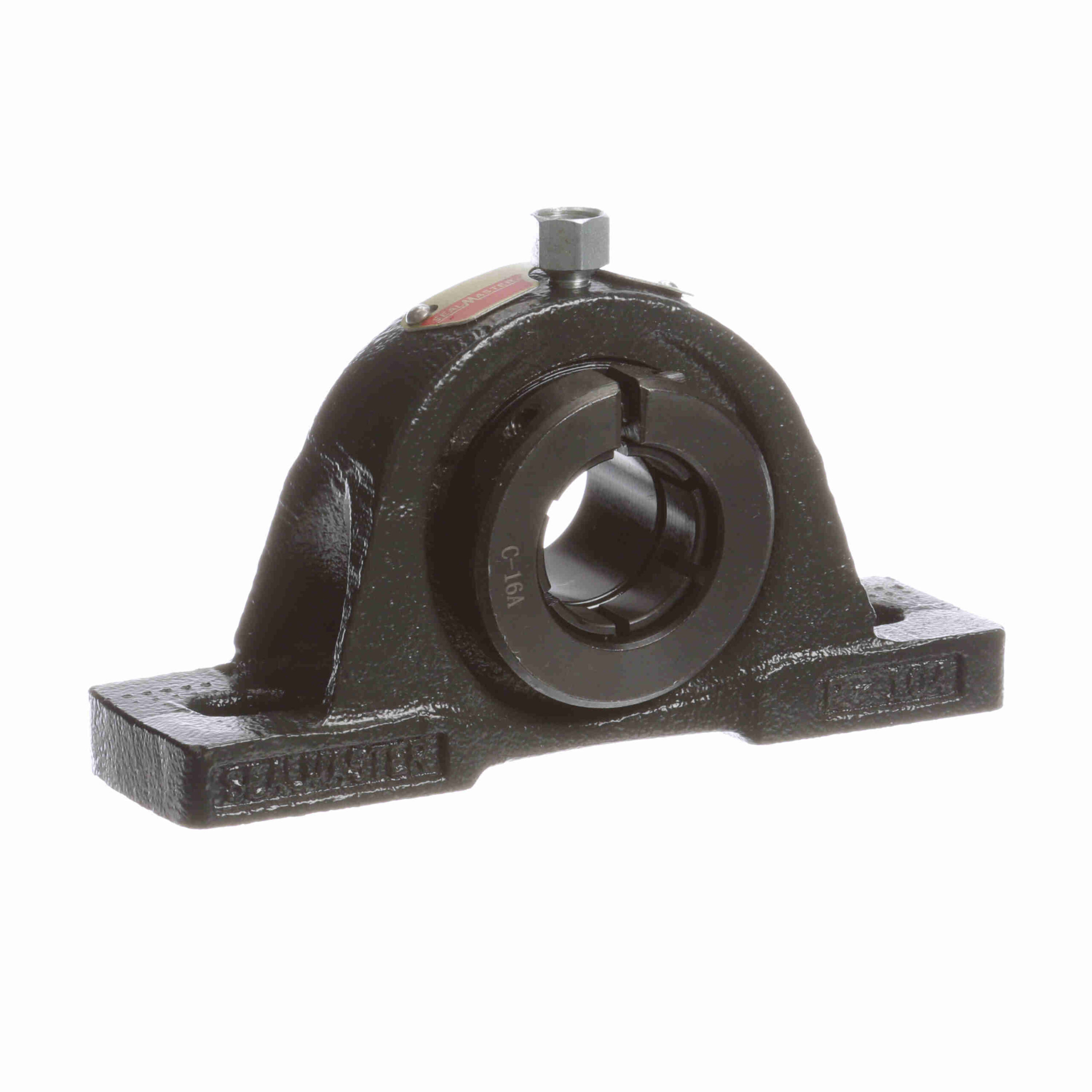

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – Low Drag – NP-16TX ALP
Out of stock
| Housing Base: | Solid | Rolling Element: | Ball Bearing |
|---|---|---|---|
| Internal Clearance: | Standard | Measure Units: | Inch |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Seal Type: | Labryinth Seal |
| Bore Shape: | Straight | Housing Construction: | One Piece |
| Misalignment: | ±2.0° Misalignment - Static Only | End Cap: | No |
| Replaceable Insert: | Yes | Outer Ring Land Profile: | Standard |
| Housing Color: | Gray | Misalignment Type: | Static Only |
| Bearing Insert Coating: | Black Oxide Coated | Platform: | Gold Line Ball Bearing |
| Options: | Low Drag | Lubrication Type: | Oil Coated Only - No Factory Grease Fill |
| Fixed vs. Expansion: | Fixed | Housing Style: | Pillow Block |
| Housing Material: | Cast Iron | Duty/Series: | Standard Duty |
| Retainer Type: | Land Riding Retainer | Maximum Speed (RPM): | 9000 rpm |
| Locking Type: | Concentric | Housing Type: | Pillow Block, Two Bolt |
| Insert Number: | 2-1TX HX | Inner Race Heat Treat Method: | Zone-Hardened |
| Maximum Operating Temperature (F): | 220 °F | Ability to Relubricate: | Yes |
| UPC: | 662461000000 | Weight: | 2.40 LB |
| Packaged Length: | 3.5 Inches | Packaged Width: | 1.69 Inches |
| Packaged Height: | 5.75 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
