- Through hardened bearing grade steel
- Surfaces precision ground to RBEC 1 tolerances
- Crowned rollers

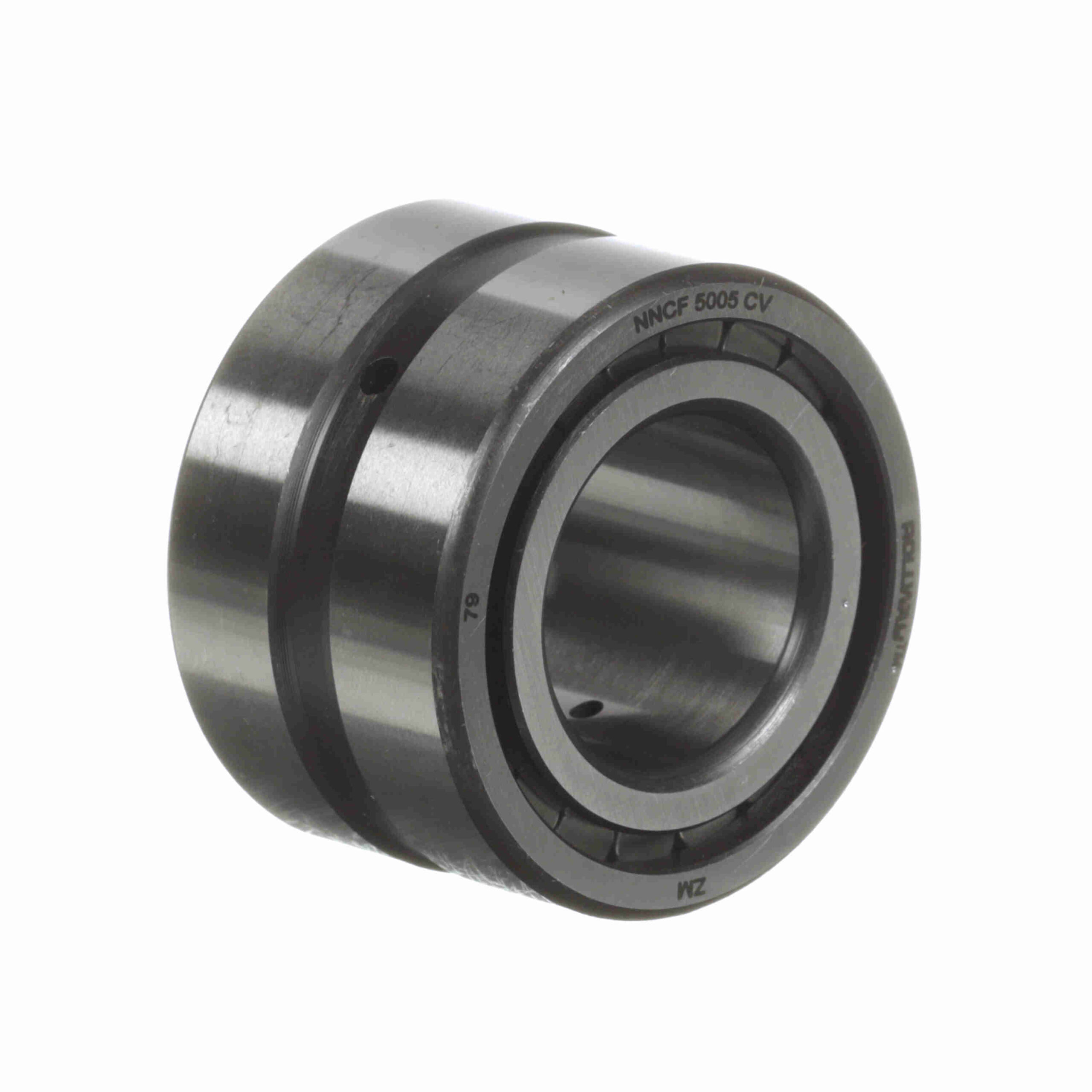

NNCF 5005 CV
Rollway Radial Cylindrical Roller Bearing – Full Complement Roller- Straight Bore – Unsealed – NNCF 5005 CV
$624.46
Out of stock
Out of stock
| Additional Information: | Semi locating bearing, Oil groove and holes in outer ring | Inner Race Configuration: | Non-Separable |
|---|---|---|---|
| Outer Race Configuration: | Non-Separable | Version: | CV: Without cage |
| Cage Material: | No retainer | Static Load Rating (kN): | 65 kN |
| Bore Type: | Straight | Seal Type: | Unsealed |
| Material: | High Chromium Bearing Steel | Radial Clearance: | C0 |
| Misalignment: | No | Number of Rows: | 2 |
| Rolling Element: | Cylindrical Roller | Speed [Max] Oil (RPM): | 7, 000 rpm |
| Platform: | Cylindrical Radial | Dynamic Load Rating (lb): | 12, 140 lb |
| Sealed: | None | Speed [Max] Grease (RPM): | 9, 000 rpm |
| Duplexing: | No | Full Complement/Caged: | Full Complement |
| Static Load Rating (lb): | 14, 613 lb | Profile: | Complete with Outer and Inner Race |
| Separable: | Nonseparable | Retainer: | No |
| Snap Ring: | No | UPC: | 637410083325 |
| Weight: | 0.51 LB | Packaged Length: | 1.85 Inches |
| Packaged Width: | 1.18 Inches | Packaged Height: | 1.85 Inches |
| Country of Origin: | China |
