- Through hardened bearing grade steel
- Surfaces precision ground to RBEC 1 tolerances
- Crowned rollers
NJ 314 EM C3

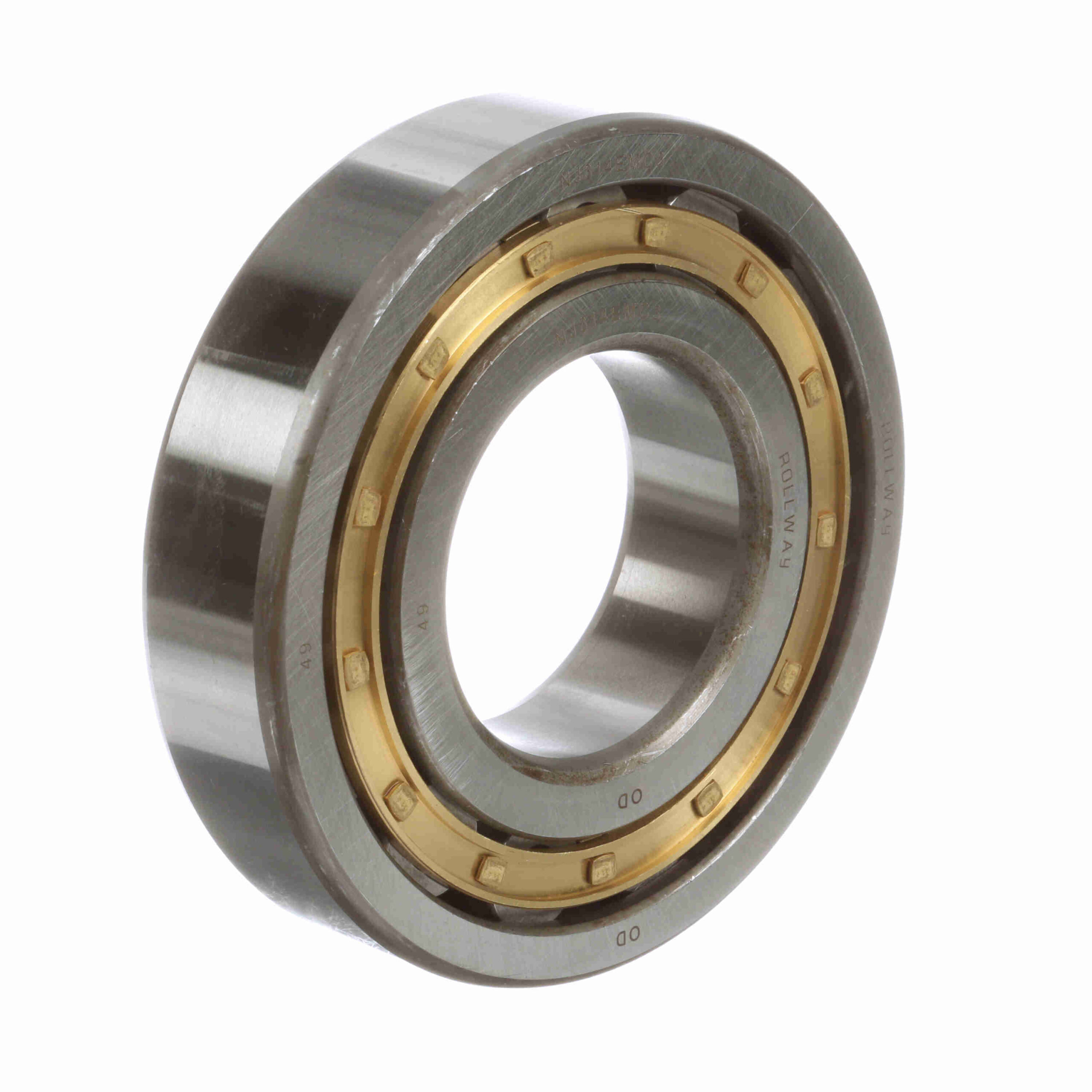

Rollway Radial Cylindrical Roller Bearing – Caged Roller – Straight Bore – Unsealed – NJ 314 EM C3
$482.09
Out of stock
Out of stock
| Additional Information: | Can be used to a certain extent to take combined loads | Outer Race Configuration: | Non-Separable |
|---|---|---|---|
| Inner Race Configuration: | Separable Both Directions | Version: | EM: Extra capacity design - Machined brass retainer |
| Cage Material: | Brass | Bore Type: | Straight |
| Seal Type: | Unsealed | Static Load Rating (kN): | 220 kN |
| Material: | High Chromium Bearing Steel | Number of Rows: | 1 |
| Rolling Element: | Cylindrical Roller | Misalignment: | No |
| Radial Clearance: | C3 | Sealed: | None |
| Speed [Max] Grease (RPM): | 4, 000 rpm | Static Load Rating (lb): | 49, 458 lb |
| Speed [Max] Oil (RPM): | 4, 800 rpm | Dynamic Load Rating (lb): | 45, 636 lb |
| Full Complement/Caged: | Caged | Platform: | Cylindrical Radial |
| Duplexing: | No | Separable: | Inner ring - one side |
| Snap Ring: | No | Retainer: | Yes |
| Profile: | Complete with Outer and Inner Race | UPC: | 637410082717 |
| Weight: | 6.73 LB | Packaged Length: | 6.3 Inches |
| Packaged Width: | 6 Inches | Packaged Height: | 1.9 Inches |
| Country of Origin: | China |
