- Through hardened bearing grade steel
- Surfaces precision ground to RBEC 1 tolerances
- Crowned rollers

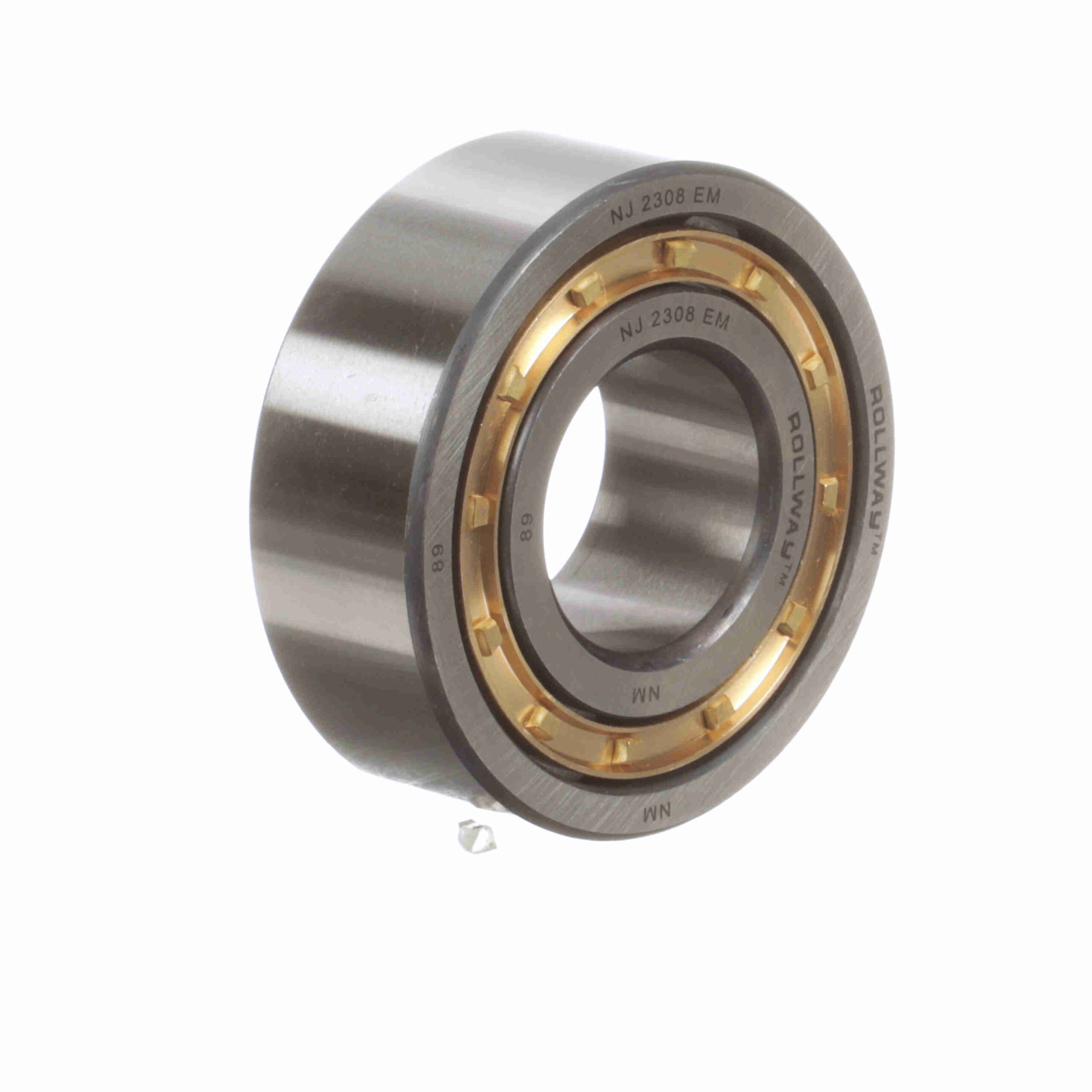

NJ 2308 EM
Rollway Radial Cylindrical Roller Bearing – Caged Roller – Straight Bore – Unsealed – NJ 2308 EM
$531.48
Availability: 3 in stock
Availability: 3 in stock
| Additional Information: | Can be used to a certain extent to take combined loads | Version: | EM: Extra capacity design - Machined brass retainer |
|---|---|---|---|
| Inner Race Configuration: | Separable Both Directions | Outer Race Configuration: | Non-Separable |
| Bore Type: | Straight | Static Load Rating (kN): | 118 kN |
| Cage Material: | Brass | Seal Type: | Unsealed |
| Material: | High Chromium Bearing Steel | Rolling Element: | Cylindrical Roller |
| Radial Clearance: | C0 | Number of Rows: | 1 |
| Misalignment: | No | Speed [Max] Grease (RPM): | 6, 700 rpm |
| Dynamic Load Rating (lb): | 24, 954 lb | Static Load Rating (lb): | 26, 527 lb |
| Duplexing: | No | Full Complement/Caged: | Caged |
| Platform: | Cylindrical Radial | Sealed: | None |
| Speed [Max] Oil (RPM): | 8, 000 rpm | Snap Ring: | No |
| Retainer: | Yes | Separable: | Inner ring - one side |
| Profile: | Complete with Outer and Inner Race | UPC: | 637410087309 |
| Weight: | 2.09 LB | Packaged Length: | 3.54 Inches |
| Packaged Width: | 1.3 Inches | Packaged Height: | 3.54 Inches |
| Country of Origin: | China |
