- Through hardened bearing grade steel
- Surfaces precision ground to RBEC 1 tolerances
- Crowned rollers

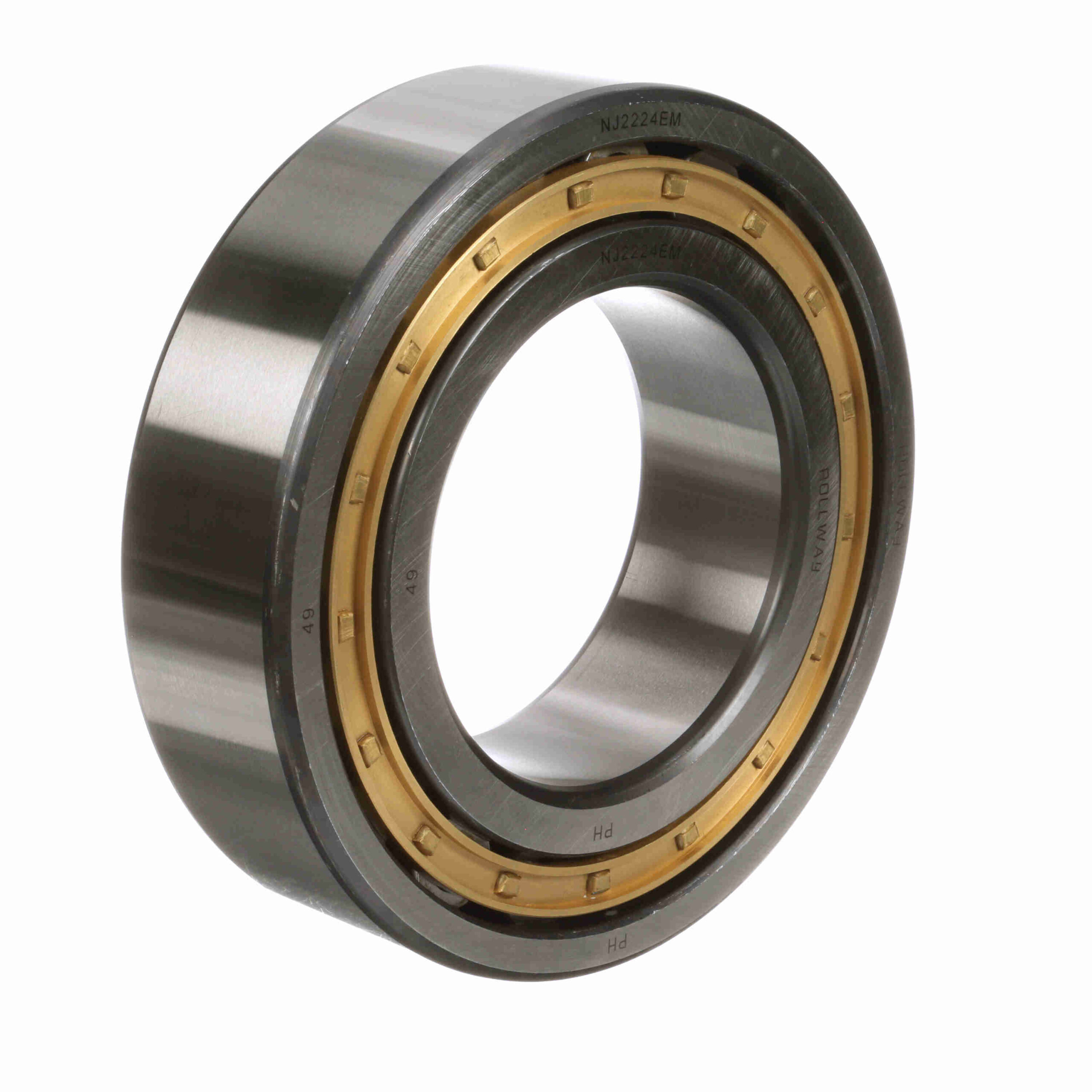

NJ 2224 EM
Rollway Radial Cylindrical Roller Bearing – Caged Roller – Straight Bore – Unsealed – NJ 2224 EM
$5,298.86
Out of stock
Out of stock
| Additional Information: | Can be used to a certain extent to take combined loads | Outer Race Configuration: | Non-Separable |
|---|---|---|---|
| Inner Race Configuration: | Separable Both Directions | Version: | EM: Extra capacity design - Machined brass retainer |
| Bore Type: | Straight | Cage Material: | Brass |
| Static Load Rating (kN): | 622 kN | Seal Type: | Unsealed |
| Number of Rows: | 1 | Material: | High Chromium Bearing Steel |
| Rolling Element: | Cylindrical Roller | Misalignment: | No |
| Radial Clearance: | C0 | Dynamic Load Rating (lb): | 92, 846 lb |
| Full Complement/Caged: | Caged | Duplexing: | No |
| Sealed: | None | Platform: | Cylindrical Radial |
| Speed [Max] Oil (RPM): | 3, 000 rpm | Speed [Max] Grease (RPM): | 2, 400 rpm |
| Static Load Rating (lb): | 139, 831 lb | Separable: | Inner ring - one side |
| Profile: | Complete with Outer and Inner Race | Snap Ring: | No |
| Retainer: | Yes | UPC: | 637410086555 |
| Weight: | 20.92 LB | Packaged Length: | 9 Inches |
| Packaged Width: | 9.5 Inches | Packaged Height: | 3.4 Inches |
| Country of Origin: | China |
