- Through hardened bearing grade steel
- Surfaces precision ground to RBEC 1 tolerances
- Crowned rollers
NJ 2313 EM

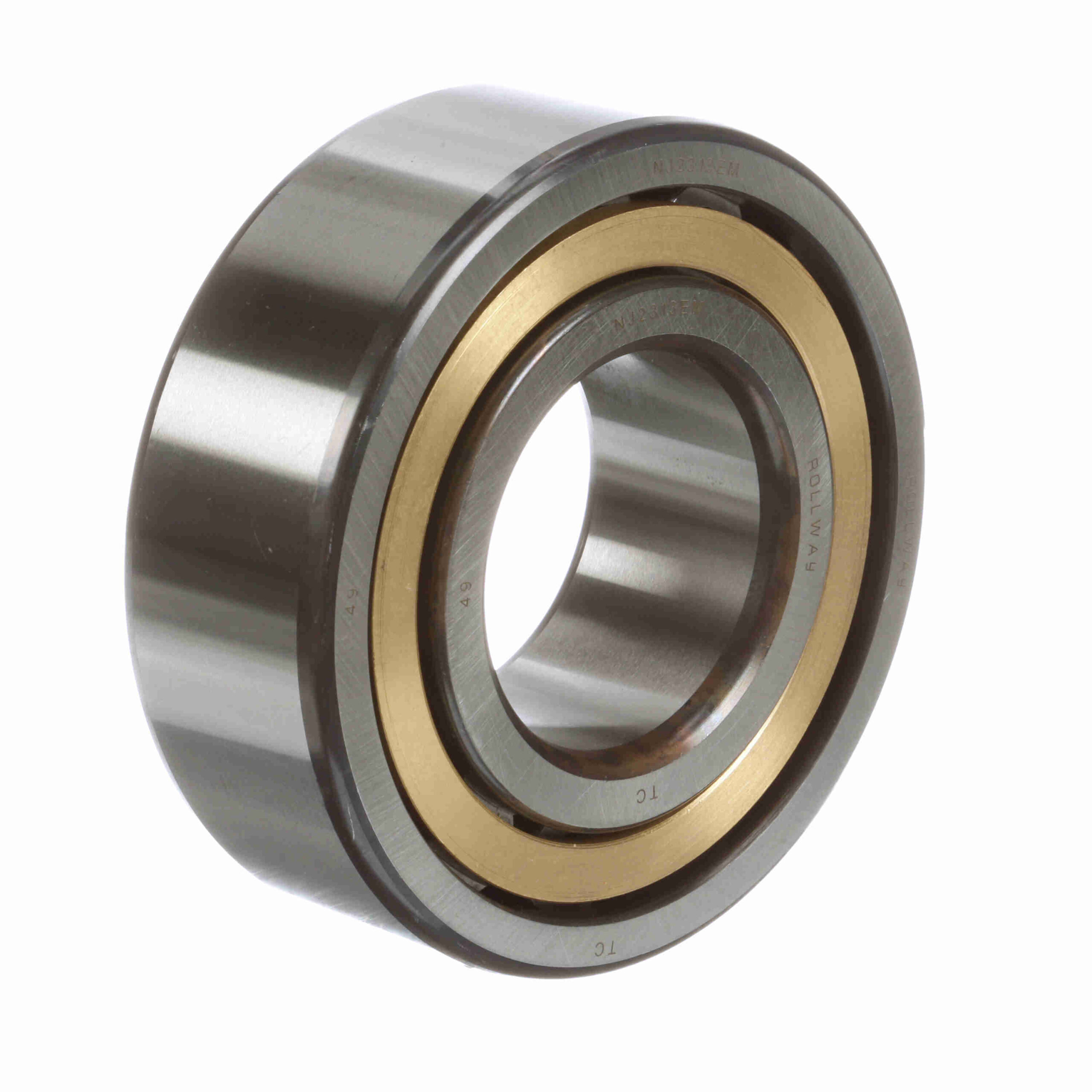

Rollway Radial Cylindrical Roller Bearing – Caged Roller – Straight Bore – Unsealed – NJ 2313 EM
$454.97
Out of stock
Out of stock
| Inner Race Configuration: | Separable Both Directions | Additional Information: | Can be used to a certain extent to take combined loads |
|---|---|---|---|
| Version: | EM: Extra capacity design - Machined brass retainer | Outer Race Configuration: | Non-Separable |
| Cage Material: | Brass | Static Load Rating (kN): | 285 kN |
| Seal Type: | Unsealed | Bore Type: | Straight |
| Misalignment: | No | Material: | High Chromium Bearing Steel |
| Rolling Element: | Cylindrical Roller | Radial Clearance: | C0 |
| Number of Rows: | 1 | Dynamic Load Rating (lb): | 55, 078 lb |
| Speed [Max] Grease (RPM): | 4, 000 rpm | Speed [Max] Oil (RPM): | 4, 800 rpm |
| Static Load Rating (lb): | 64, 071 lb | Duplexing: | No |
| Full Complement/Caged: | Caged | Platform: | Cylindrical Radial |
| Sealed: | None | Retainer: | Yes |
| Profile: | Complete with Outer and Inner Race | Separable: | Inner ring - one side |
| Snap Ring: | No | UPC: | 637410087576 |
| Weight: | 7.39 LB | Packaged Length: | 5.51 Inches |
| Packaged Width: | 1.89 Inches | Packaged Height: | 5.51 Inches |
| Country of Origin: | China |
