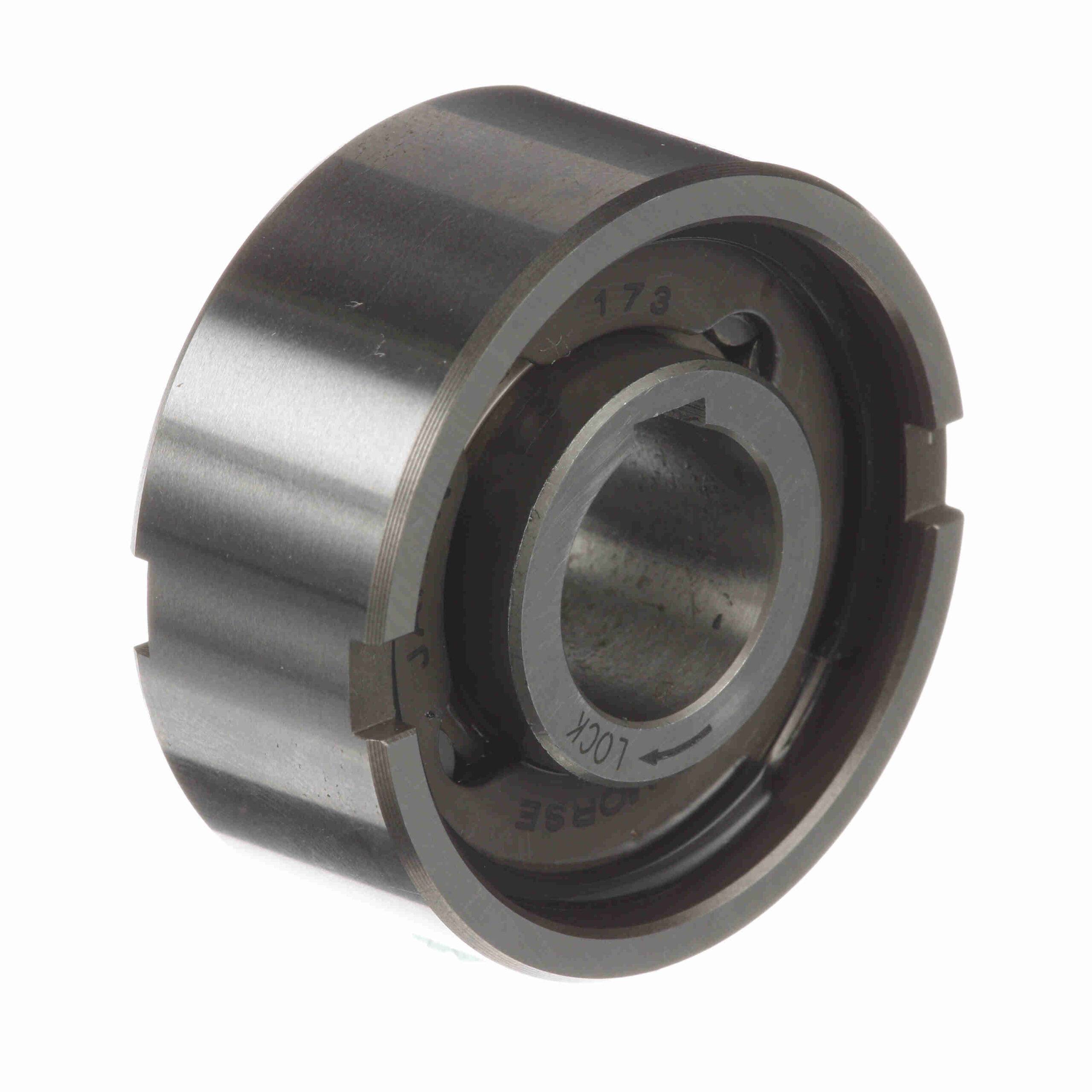

NFS-70 CLUTCH

Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
The NFS Sprag one way clutch is designed with the same overall dimensions as medium series metric ball bearing.
Manufactured with an inner race containing a key seat and out race containing key slots

Type:	CAM Clutches	Drag Torque (N-m):	.91
Maximum Overrunning Speed - Outer Race (rpm):	380	Keyway (in):	0.79 x 0.11 in
Maximum Overrunning Speed - Inner Race (rpm):	750	Drag Torque (lb-in):	8.052
Model:	NFS 70	Lubrication Type:	The clutches are supplied with a protective coating of oil and must be lubricated before putting into service.
Rated Torque Capacity (N-m):	2514	Rated Torque Capacity (ft.-lbs.):	1, 854
Keyway (mm):	20 x 2.7 mm	Add'l Bearing Support Requirement:	Yes
Indexing Clutch:	Yes	Bore Size (in):	2.755897 in
Overrunning Clutch:	Yes	Bore Size (mm):	70 mm
Product Type:	NFS Series	Backstopping Clutch:	No
UPC:	662288928195	Weight:	9.70 LB
Packaged Length:	5.91 Inches	Packaged Width:	2.01 Inches
Packaged Height:	5.91 Inches	HTC:	8483.60.4040
Country of Origin:	Japan
