- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- The NFS Sprag one way clutch is designed with the same overall dimensions as medium series metric ball bearing.
- Manufactured with an inner race containing a key seat and out race containing key slots

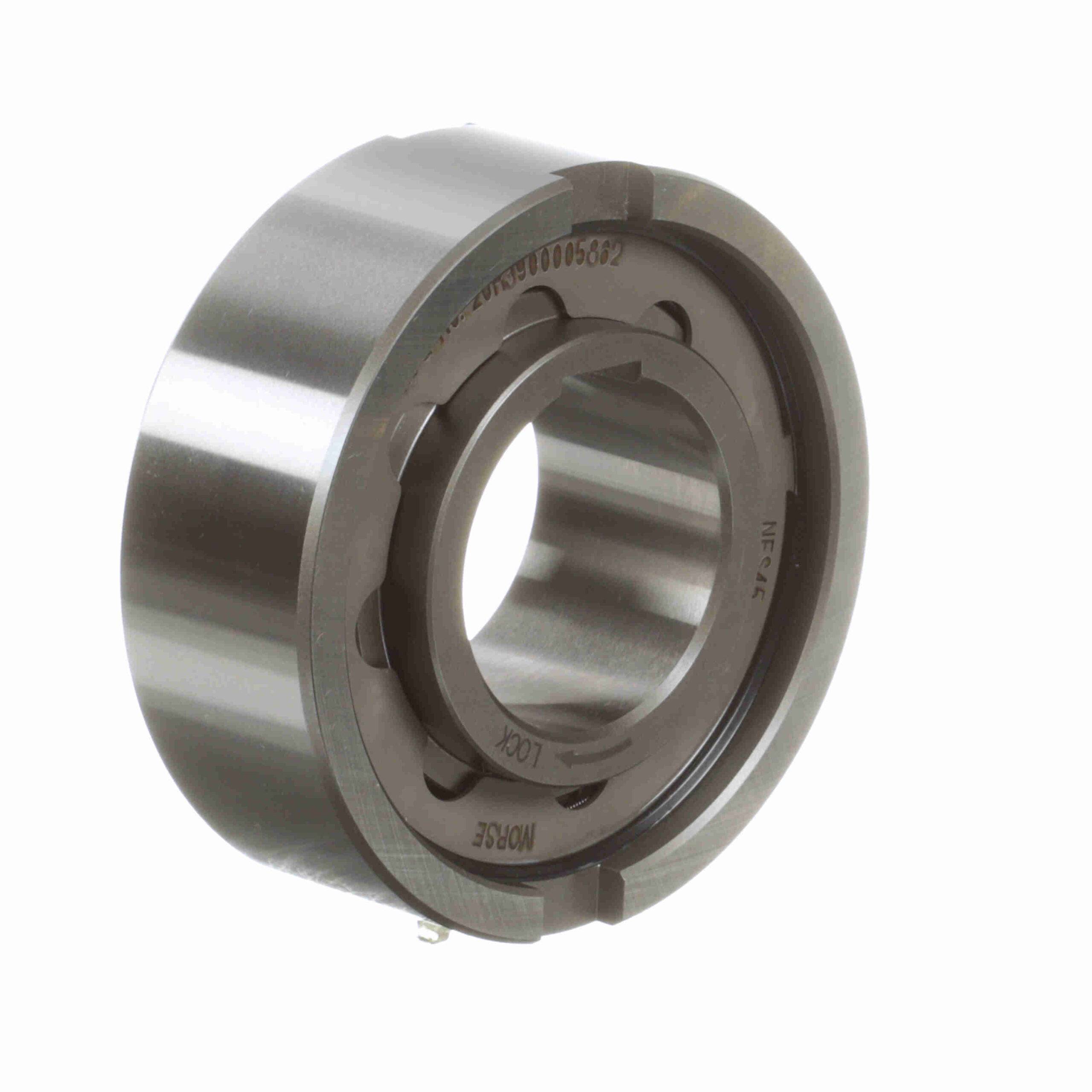

NFS-45 CLUTCH
Morse NFS Series CAM Clutch – NFS-45 CLUTCH
$2,792.16
Out of stock
Out of stock
| Model: | NFS 45 | Drag Torque (N-m): | .56 |
|---|---|---|---|
| Keyway (in): | 0.55 x 0.08 in | Maximum Overrunning Speed - Inner Race (rpm): | 1, 100 |
| Lubrication Type: | The clutches are supplied with a protective coating of oil and must be lubricated before putting into service. | Drag Torque (lb-in): | 4.956 |
| Type: | CAM Clutches | Maximum Overrunning Speed - Outer Race (rpm): | 550 |
| Rated Torque Capacity (N-m): | 756 | Rated Torque Capacity (ft.-lbs.): | 558 |
| Keyway (mm): | 14 x 2.1 mm | Overall Length (mm): | 36 mm |
| Outside Diameter (in): | 3.936996 in | Outside Diameter (mm): | 100 mm |
| Configuration: | LH Or RH Depending upon order | Overall Length (in): | 1.417319 in |
| Add'l Bearing Support Requirement: | Yes | Bore Size (mm): | 45 mm |
| Overrunning Clutch: | Yes | Backstopping Clutch: | No |
| Product Type: | NFS Series | Indexing Clutch: | Yes |
| Bore Size (in): | 1.771648 in | UPC: | 662460387604 |
| Weight: | 2.80 LB | Packaged Length: | 3.94 Inches |
| Packaged Width: | 1.42 Inches | Packaged Height: | 3.94 Inches |
| HTC: | 8483.60.4040 | Country of Origin: | Japan |
