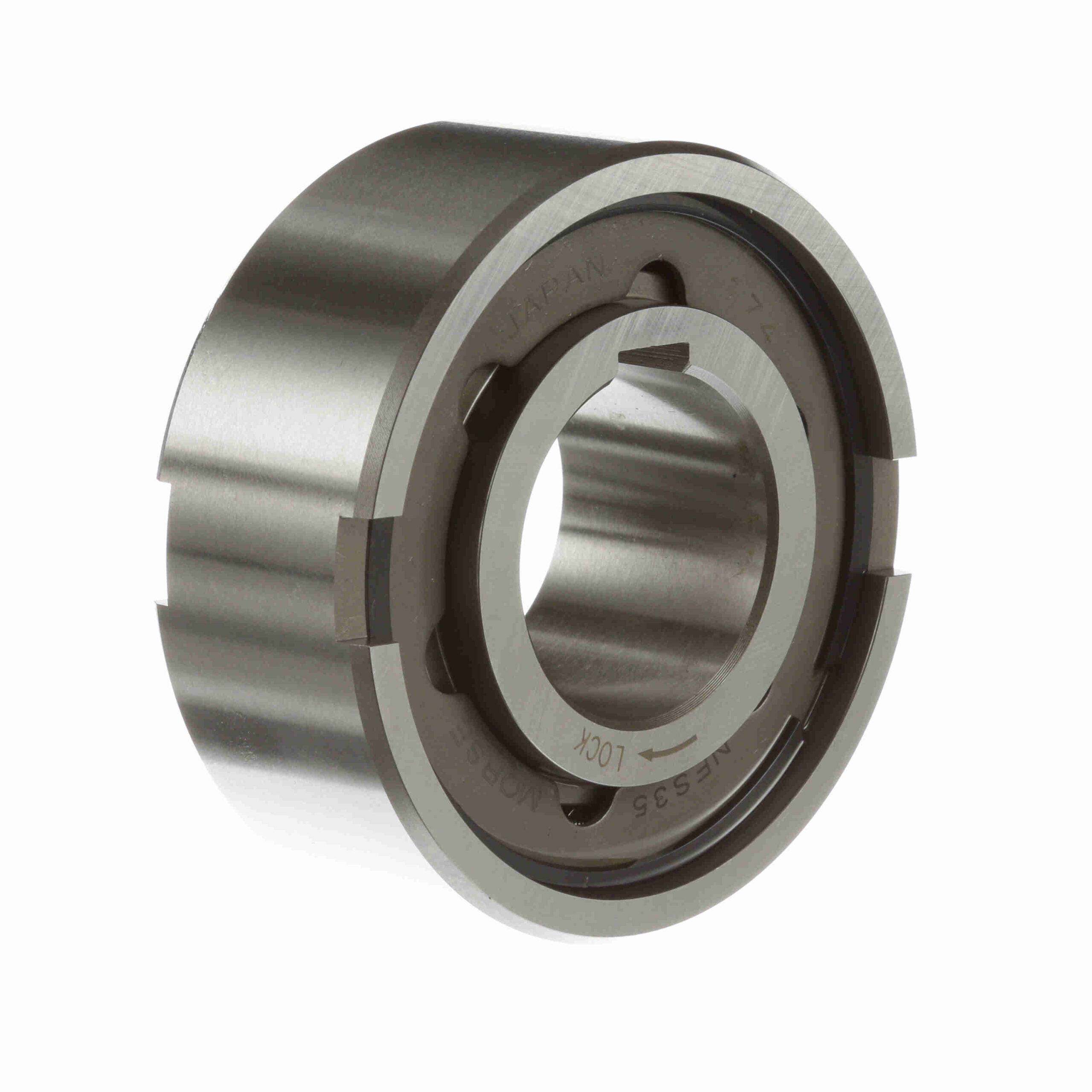

NFS-35 CLUTCH

Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
The NFS Sprag one way clutch is designed with the same overall dimensions as medium series metric ball bearing.
Manufactured with an inner race containing a key seat and out race containing key slots

Keyway (in):	0.39 x 0.10 in	Lubrication Type:	The clutches are supplied with a protective coating of oil and must be lubricated before putting into service.
Rated Torque Capacity (N-m):	475	Drag Torque (N-m):	.42
Maximum Overrunning Speed - Inner Race (rpm):	1, 400	Drag Torque (lb-in):	3.72
Maximum Overrunning Speed - Outer Race (rpm):	700	Type:	CAM Clutches
Model:	NFS 35	Keyway (mm):	10 x 2.4 mm
Rated Torque Capacity (ft.-lbs.):	350	Add'l Bearing Support Requirement:	Yes
Overrunning Clutch:	Yes	Backstopping Clutch:	No
Product Type:	NFS Series	Bore Size (mm):	35 mm
Indexing Clutch:	Yes	Bore Size (in):	1.377949 in
UPC:	662460387581	Weight:	1.74 LB
Packaged Length:	3.70 Inches	Packaged Width:	3.70 Inches
Packaged Height:	1.60 Inches	HTC:	8483.60.4040
Country of Origin:	Japan
