- Browning Split Taper Bushed Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning Gears are rated in accordance with AGMA standards
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NCS6P60

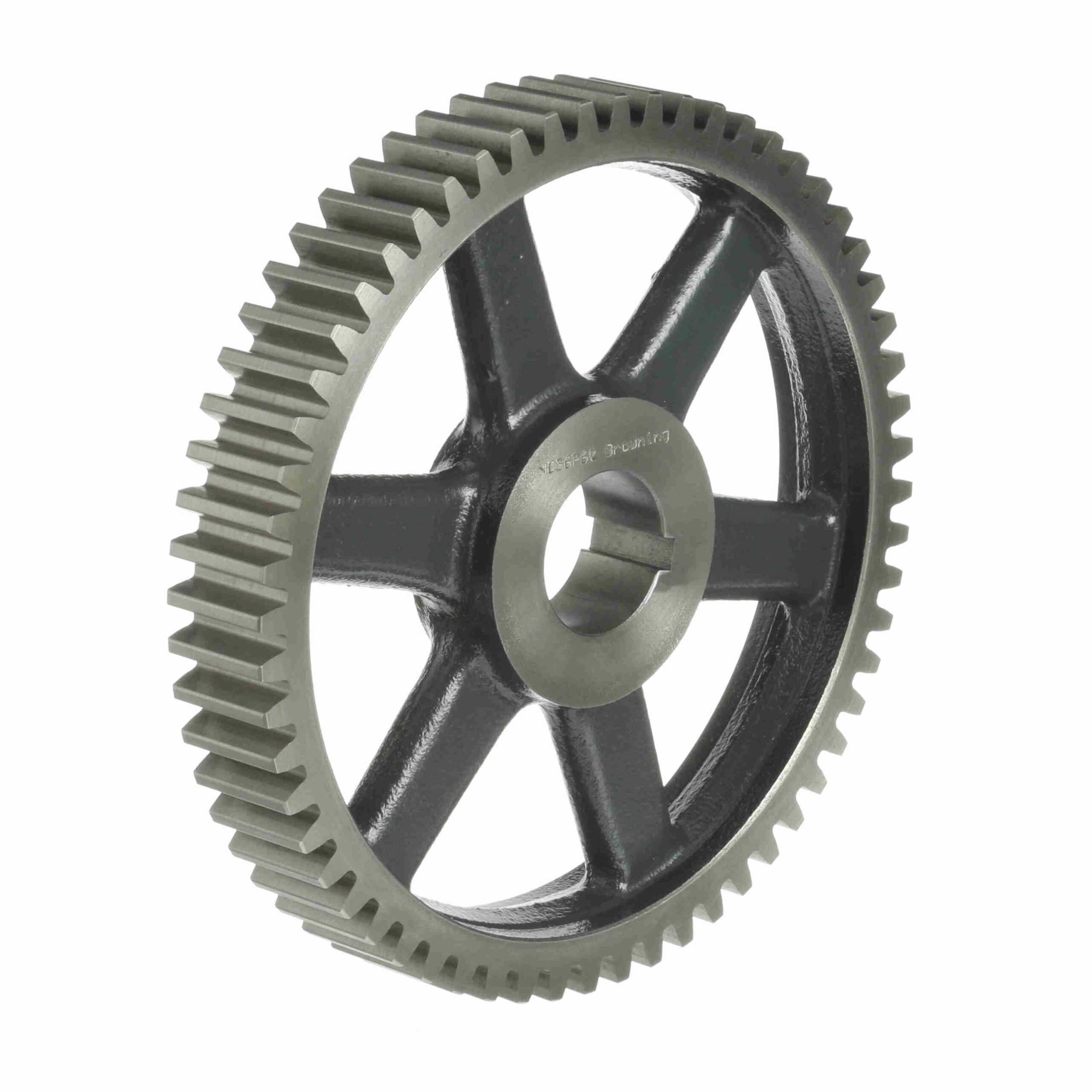

Browning Cast Iron Bushed Bore Spur Gear – 14.5 PA 6 DP – NCS6P60
$1,205.60
Out of stock
Out of stock
| Material: | Gray Iron | Face Width (in): | 1.5 in |
|---|---|---|---|
| Number of Teeth/Threads: | 60 | Pitch Diameter (in): | 10 in |
| Outside Diameter (in): | 10.33 in | Diametral Pitch: | 6 |
| Pressure Angle: | 14.5 | Bore (Min) (in): | 0.5 in |
| Bore Type: | Bushed Bore | Bore (Max) (in): | 1.75 in |
| Length Through Bore (in): | 2.1875 in | Bore Size (in): | 0.5 in |
| Product Type: | Spur Gear | Hub Type: | P1 |
| Overall Length (in): | 2.1875 in | Standard Met: | AGMA |
| UPC: | 662289145836 | Weight: | 13.49 LB |
| Packaged Length: | 10.70 Inches | Packaged Width: | 12.10 Inches |
| Packaged Height: | 10.00 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
