- Browning Split Taper Bushed Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- Browning Gears are rated in accordance with AGMA standards
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NCS4Q30

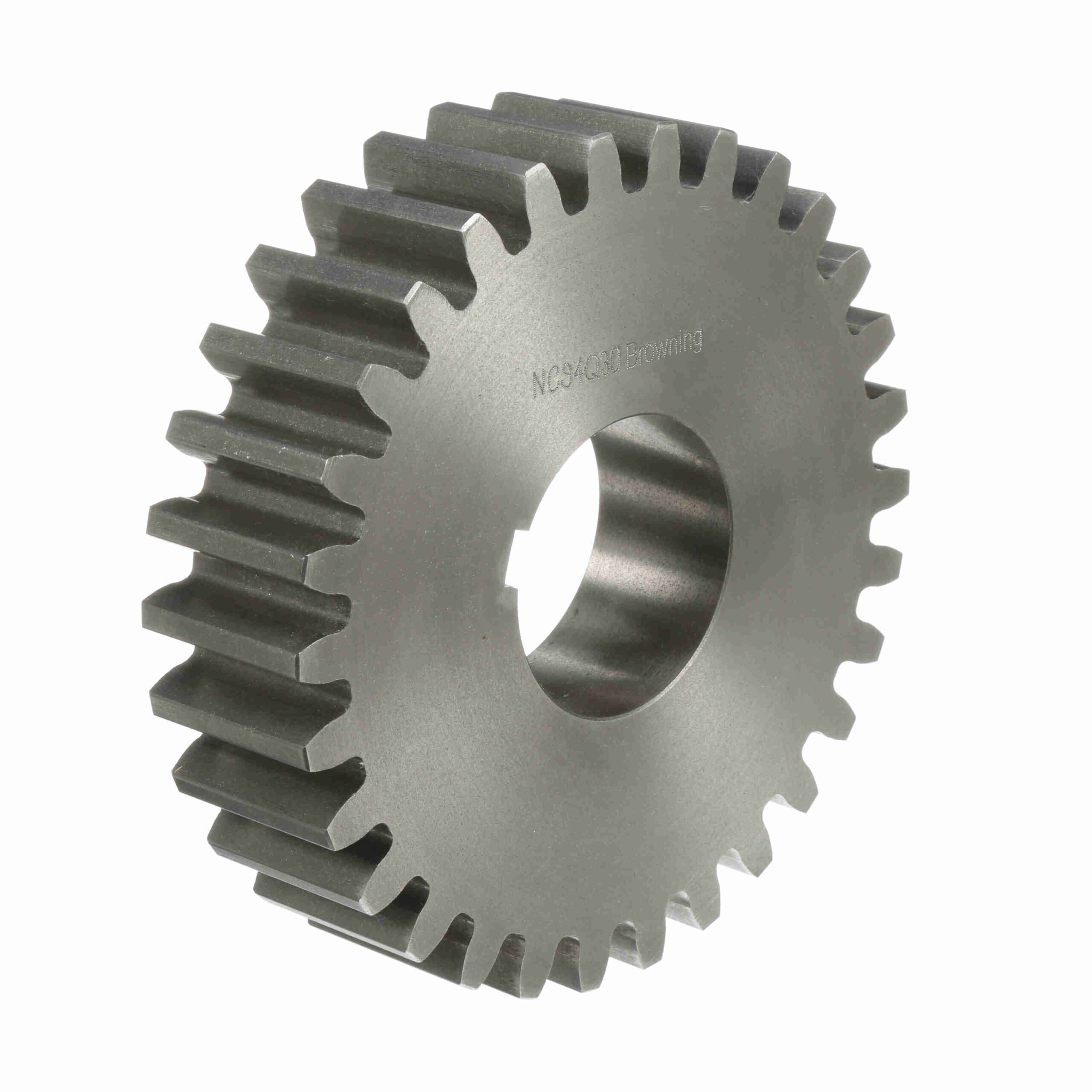

Browning Cast Iron Bushed Bore Spur Gear – 14.5 PA 4 DP – NCS4Q30
$1,133.34
Out of stock
Out of stock
| Number of Teeth/Threads: | 30 | Face Width (in): | 2 in |
|---|---|---|---|
| Pressure Angle: | 14.5 | Diametral Pitch: | 4 |
| Pitch Diameter (in): | 7.5 in | Material: | Gray Iron |
| Outside Diameter (in): | 8 in | Bore (Min) (in): | 0.75 in |
| Length Through Bore (in): | 2.78125 in | Bore (Max) (in): | 2.6875 in |
| Bore Type: | Bushed Bore | Bore Size (in): | 0.75 in |
| Product Type: | Spur Gear | Hub Type: | Q1 |
| Overall Length (in): | 2.78125 in | Standard Met: | AGMA |
| UPC: | 662289246212 | Weight: | 18.12 LB |
| Packaged Length: | 8.63 Inches | Packaged Width: | 3.25 Inches |
| Packaged Height: | 8.63 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
