- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NCS1284

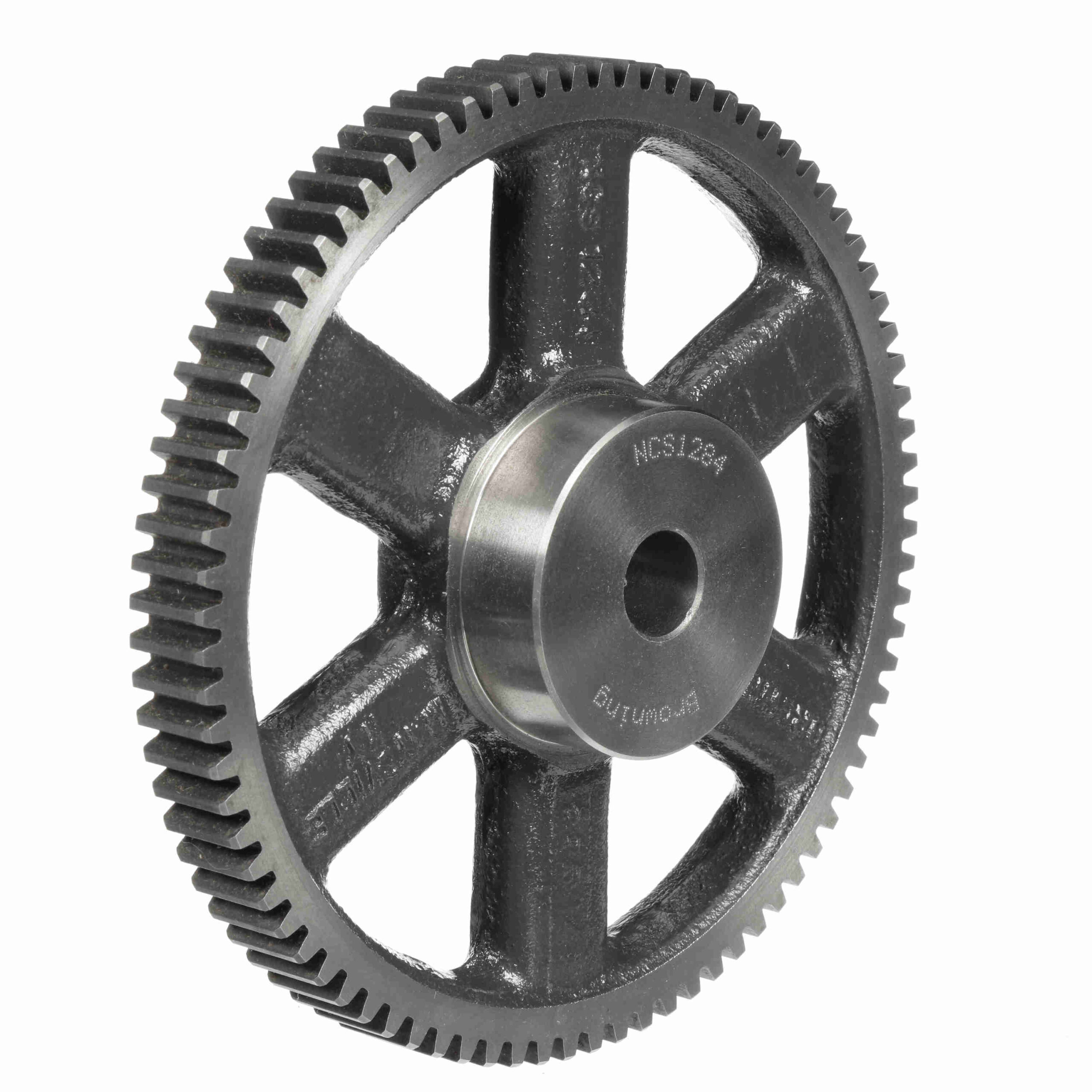

Browning Cast Iron Minimum Plain Bore Spur Gear – 14.5 PA 12 DP – NCS1284
Out of stock
| Diametral Pitch: | 12 | Number of Teeth/Threads: | 84 |
|---|---|---|---|
| Face Width (in): | 0.75 in | Pressure Angle: | 14.5 |
| Hub Diameter (in): | 2.5 in | Material: | Gray Iron |
| Pitch Diameter (in): | 7 in | Outside Diameter (in): | 7.16 in |
| Hub Projection (in): | 0.75 in | Bore (Min) (in): | 0.75 in |
| Bore Type: | Minimum Plain Bore | Bore (Max) (in): | 1.5 in |
| Length Through Bore (in): | 1.5 in | Product Type: | Spur Gear |
| Bore Size (in): | 0.75 in | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 1.5 in |
| UPC: | 662289282968 | Weight: | 5.45 LB |
| Packaged Length: | 8.30 Inches | Packaged Width: | 8.30 Inches |
| Packaged Height: | 1.60 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
