- Browning Minimum Bore Spur Gear
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NSS525

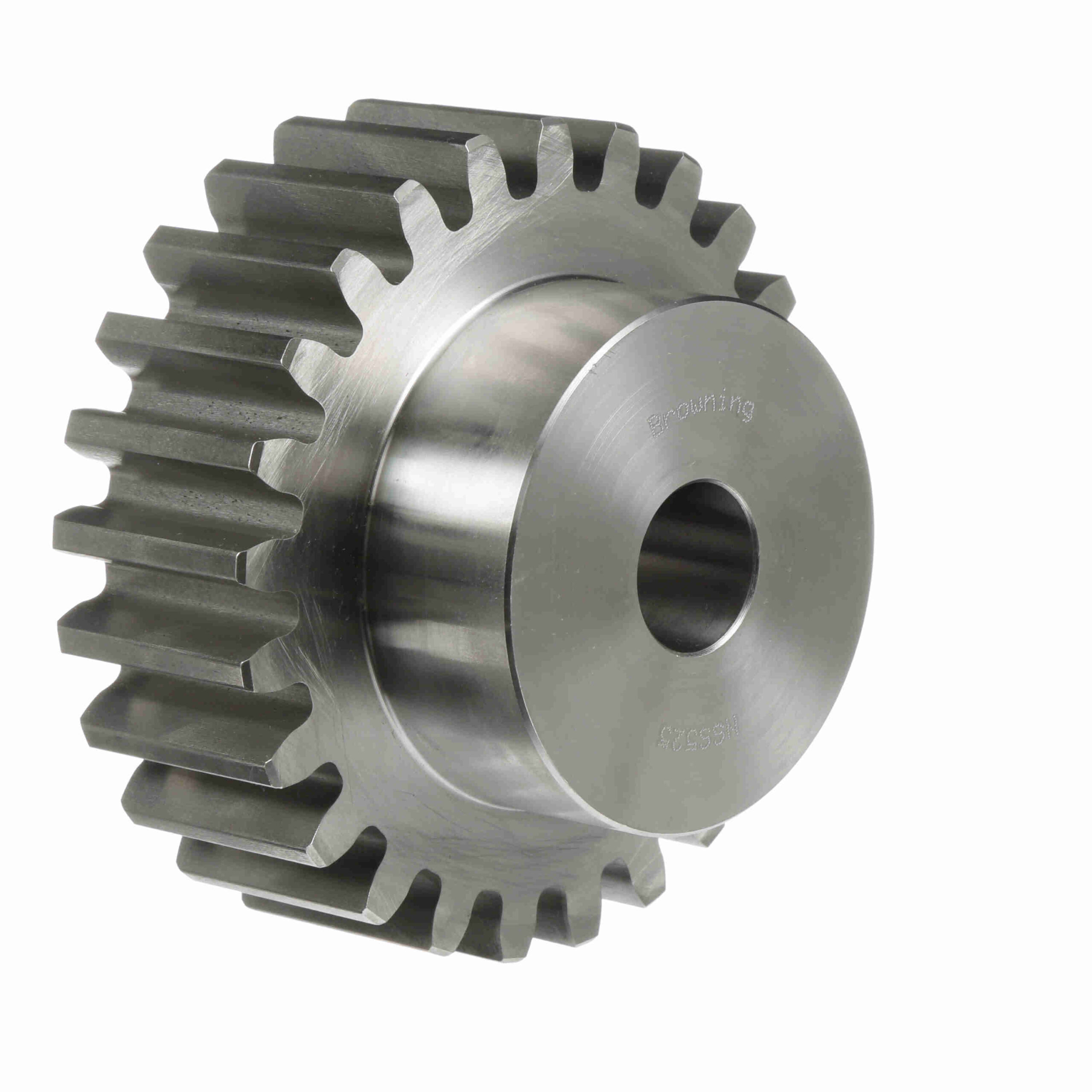

Browning Steel Minimum Plain Bore Spur Gear – 14.5 PA 5 DP – NSS525
$668.44
Out of stock
Out of stock
| Pressure Angle: | 14.5 | Hub Diameter (in): | 3.375 in |
|---|---|---|---|
| Material: | Steel | Pitch Diameter (in): | 5 in |
| Hub Projection (in): | 1.25 in | Number of Teeth/Threads: | 25 |
| Face Width (in): | 1.75 in | Diametral Pitch: | 5 |
| Outside Diameter (in): | 5.4 in | Bore (Min) (in): | 1.0625 in |
| Bore (Max) (in): | 2.375 in | Bore Type: | Minimum Plain Bore |
| Length Through Bore (in): | 3 in | Product Type: | Spur Gear |
| Bore Size (in): | 1.0625 in | Hub Type: | Type B |
| Standard Met: | AGMA | Overall Length (in): | 3 in |
| UPC: | 662289124329 | Weight: | 12.12 LB |
| Packaged Length: | 7.30 Inches | Packaged Width: | 7.20 Inches |
| Packaged Height: | 4.10 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
