- Browning Change Gears, change gear bushing sold separately
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NCG20104

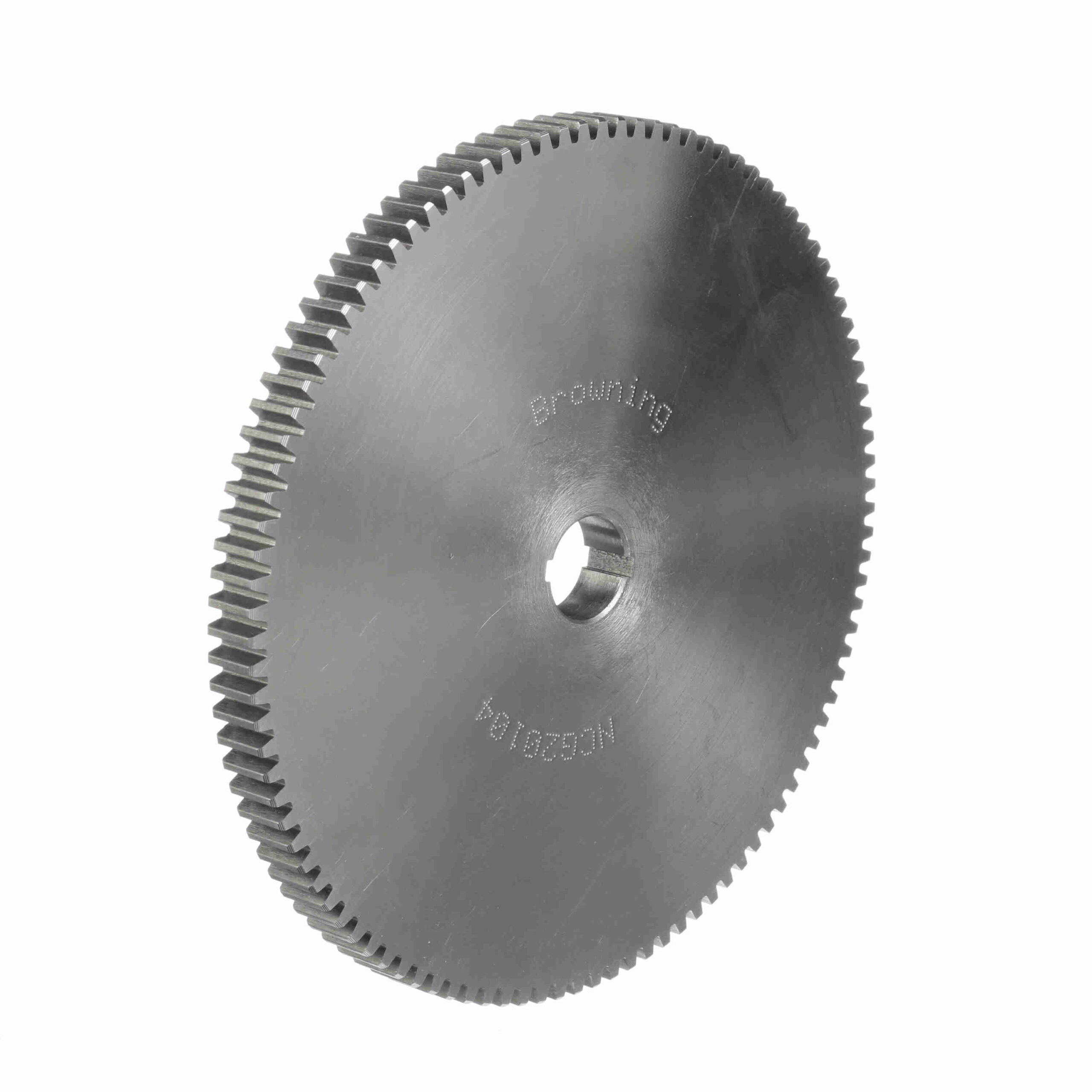

Browning Steel Minimum Plain Bore Change Gear – 14.5 PA 20 DP – NCG20104
Out of stock
| Diametral Pitch: | 20 | Face Width (in): | 0.375 in |
|---|---|---|---|
| Number of Teeth/Threads: | 104 | Material: | Steel |
| Pitch Diameter (in): | 5.2 in | Pressure Angle: | 14.5 |
| Outside Diameter (in): | 5.3 in | Bore (Min) (in): | 0.625 in |
| Bore (Max) (in): | 0.625 in | Length Through Bore (in): | 0.375 in |
| Bore Type: | Minimum Plain Bore | Bore Size (in): | 0.625 in |
| Product Type: | Change Gear | Hub Type: | Type A |
| Standard Met: | AGMA | Overall Length (in): | 0.375 in |
| UPC: | 662289208722 | Weight: | 2.29 LB |
| Packaged Length: | 5.50 Inches | Packaged Width: | 5.50 Inches |
| Packaged Height: | 1.10 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
