- Constant Speed – No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets.
- Light Weight – High horsepower-to-weight ratio makes Browning Gearbelt drives ideal for any application where weight is a factor.
- Broad depth of product to choose from – Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement.
- Different Mounting to the shaft – Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper, QD Bushing styles, as well as, finished and minimum plain bore.
30XH200E

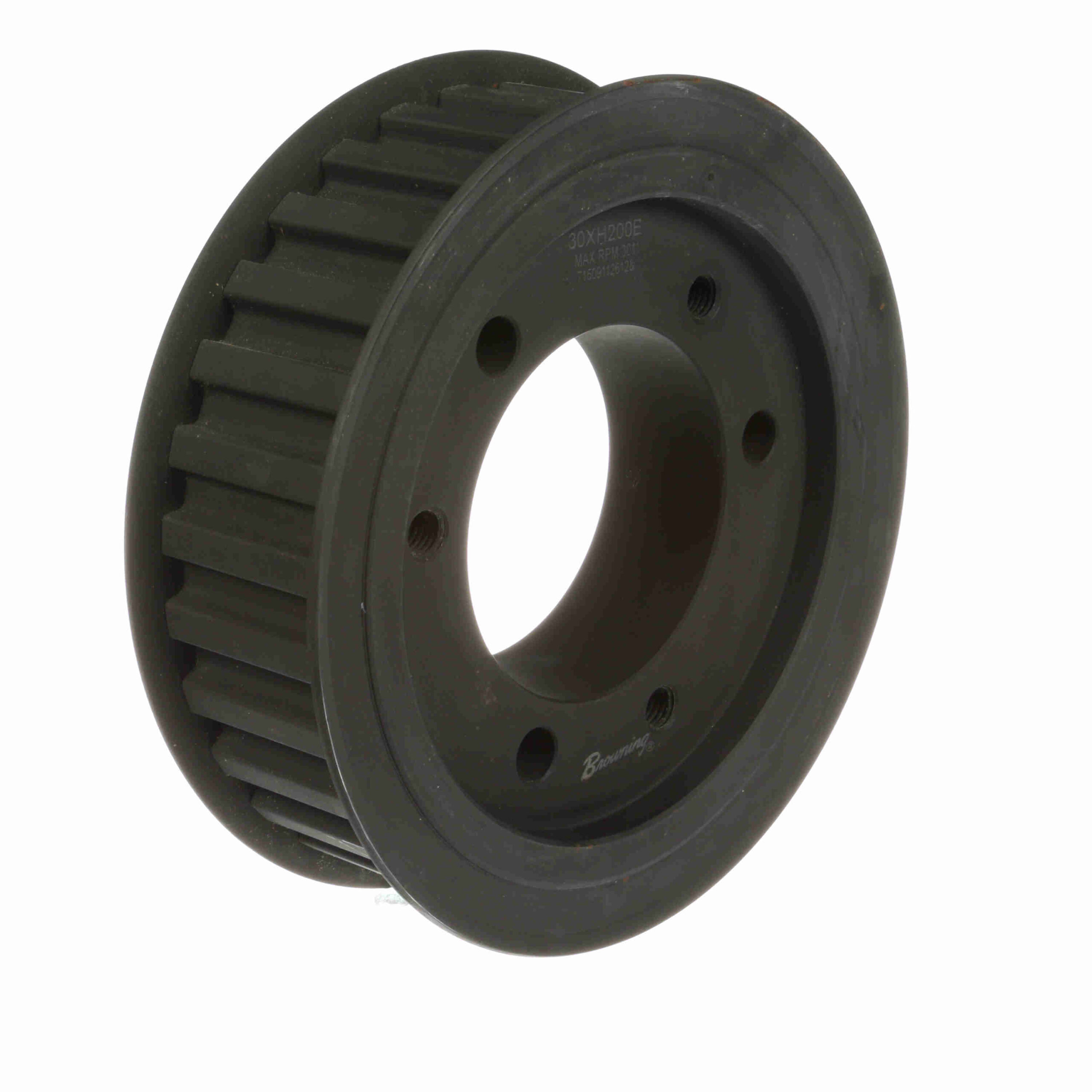

Browning Steel Bushed Bore Gearbelt Pulley – 30XH200E
$1,807.45
Out of stock
Out of stock
| Number of teeth: | 30 | Bore Range: | 7/8 to 3 1/2 |
|---|---|---|---|
| Width (mm): | 50.8 mm | Product Type: | Gearbelt Pulley |
| Material: | Steel | Bore Type: | Bushed Bore |
| Flange (in): | 8.906 in | Belt Section: | XH |
| Width (in): | 2 in | Pitch Diameter (in): | 8.356 in |
| Outside Diameter (mm): | 209.4484 mm | Outside Diameter (in): | 8.246 in |
| Inside Diameter (in): | 6.5 in | Face Width: | 2.562 |
| Length Through Bore: | 2.64 | Pulley Construction: | Solid |
| With Flanges: | With Flanges | Number of Hubs: | 1 |
| Hub Diameter (in): | 6 in | Overall Length (in): | 3.416 in |
| Hub Projection: | 0.853 | UPC: | 662289349760 |
| Weight: | 22.97 LB | Packaged Length: | 10.1 Inches |
| Packaged Width: | 10.4 Inches | Packaged Height: | 3 Inches |
| HTC: | 8483.50.9080 | Country of Origin: | United States of America |
