- Browning Change Gears, change gear bushing sold separately
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NCG1688

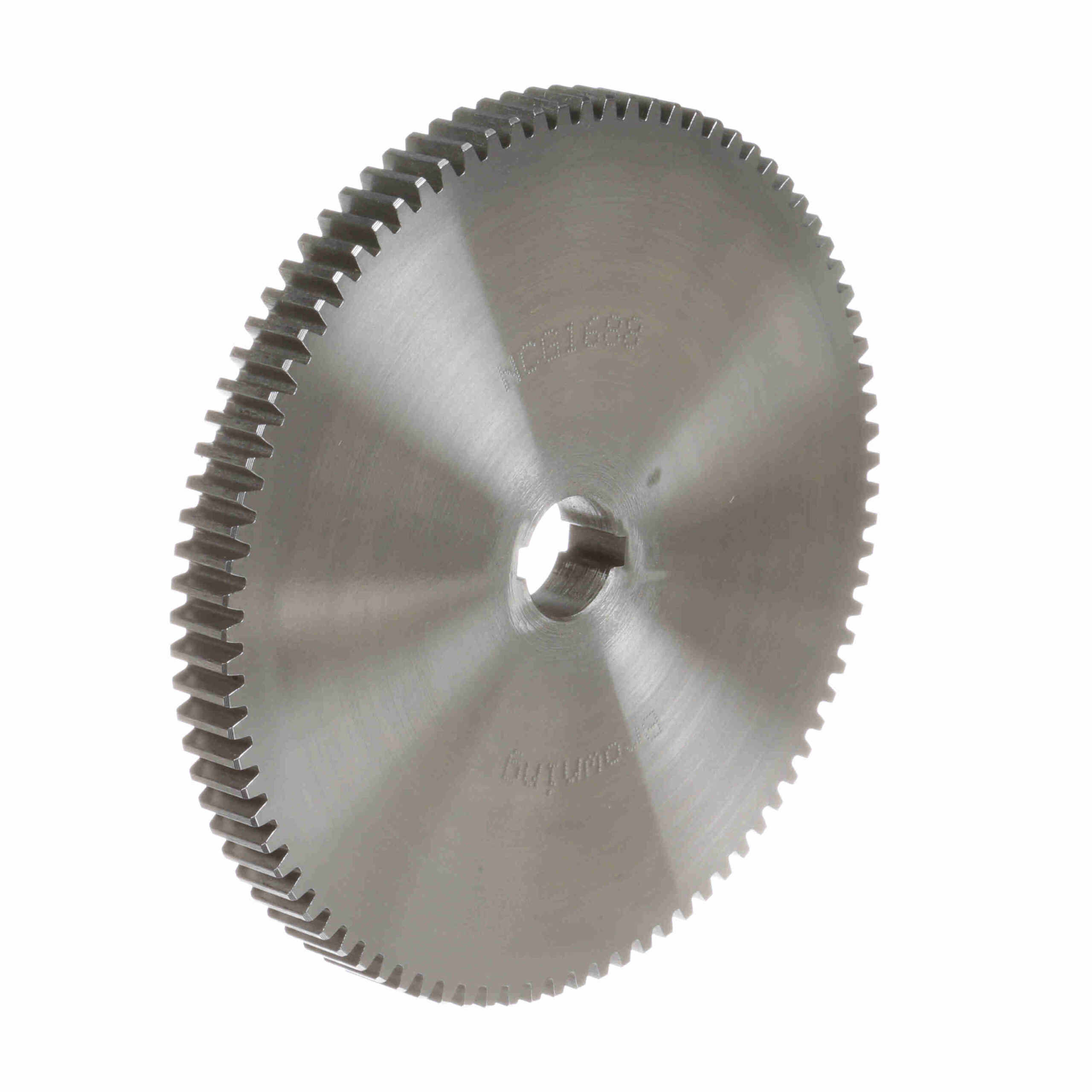

Browning Steel Minimum Plain Bore Change Gear – 14.5 PA 16 DP – NCG1688
Out of stock
| Pressure Angle: | 14.5 | Material: | Steel |
|---|---|---|---|
| Diametral Pitch: | 16 | Pitch Diameter (in): | 5.5 in |
| Face Width (in): | 0.5 in | Outside Diameter (in): | 5.62 in |
| Number of Teeth/Threads: | 88 | Bore Type: | Minimum Plain Bore |
| Bore (Min) (in): | 0.75 in | Length Through Bore (in): | 0.5 in |
| Bore (Max) (in): | 0.75 in | Product Type: | Change Gear |
| Bore Size (in): | 0.75 in | Hub Type: | Type A |
| Standard Met: | AGMA | UPC: | 662289269549 |
| Weight: | 3.79 LB | Packaged Length: | 7.60 Inches |
| Packaged Width: | 7.30 Inches | Packaged Height: | 1.30 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | Mexico |
