- Through hardened bearing grade steel
- Surfaces precision ground to RBEC 1 tolerances
- Crowned rollers

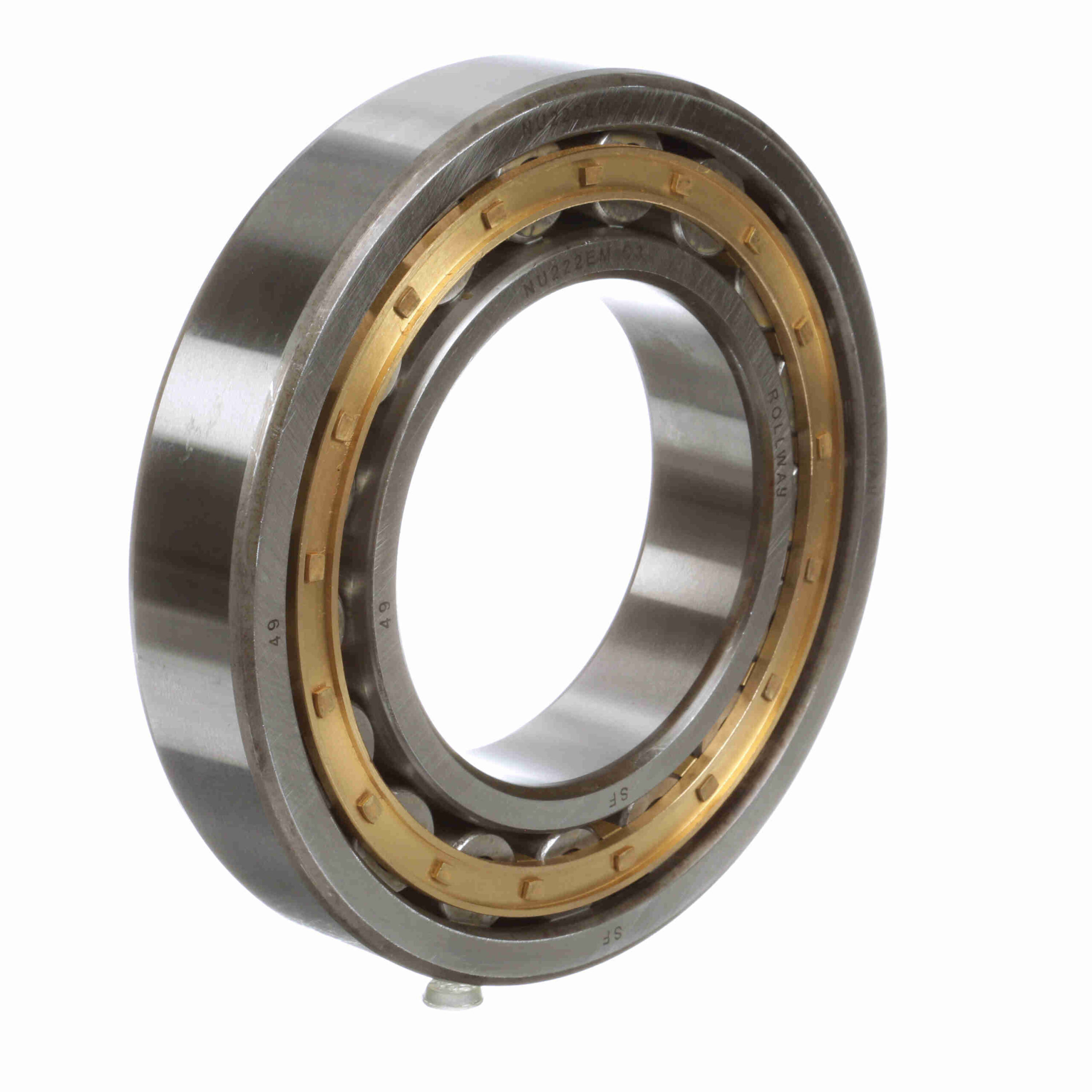

NU 222 EM C3
Rollway Radial Cylindrical Roller Bearing – Caged Roller – Straight Bore – Unsealed – NU 222 EM C3
$547.40
Availability: 2 in stock
Availability: 2 in stock
| Flanges: | (2) Flanges on Outer Ring | Version: | EM: Extra capacity design - Machined brass retainer |
|---|---|---|---|
| Seal Type: | Unsealed | Static Load Rating (kN): | 343 kN |
| Inner Race Configuration: | Separable Both Directions | Additional Information: | Suitable for radial loads only |
| Outer Race Configuration: | Non-Separable | Dynamic Load Rating (kN): | 279.001355195202 kN |
| Cage Material: | Brass | Bore Type: | Straight |
| Radial Clearance: | C3 | Number of Rows: | 1 |
| Misalignment: | No | Material: | High Chromium Bearing Steel |
| Rolling Element: | Cylindrical Roller | Static Load Rating (lb): | 77, 109 lb |
| Speed [Max] Oil (RPM): | 3, 600 rpm | Full Complement/Caged: | Caged |
| Duplexing: | No | Platform: | Cylindrical Radial |
| Speed [Max] Grease (RPM): | 3, 000 rpm | Dynamic Load Rating (lb): | 62, 722 lb |
| Sealed: | None | Retainer: | Yes |
| Separable: | Inner ring - both sides | Snap Ring: | No |
| Profile: | Complete with Outer and Inner Race | UPC: | 637410081307 |
| Weight: | 11.93 LB | Packaged Length: | 8.6 Inches |
| Packaged Width: | 8.3 Inches | Packaged Height: | 2 Inches |
| Country of Origin: | China |
