- Browning Change Gears, change gear bushing sold separately
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NCG1635

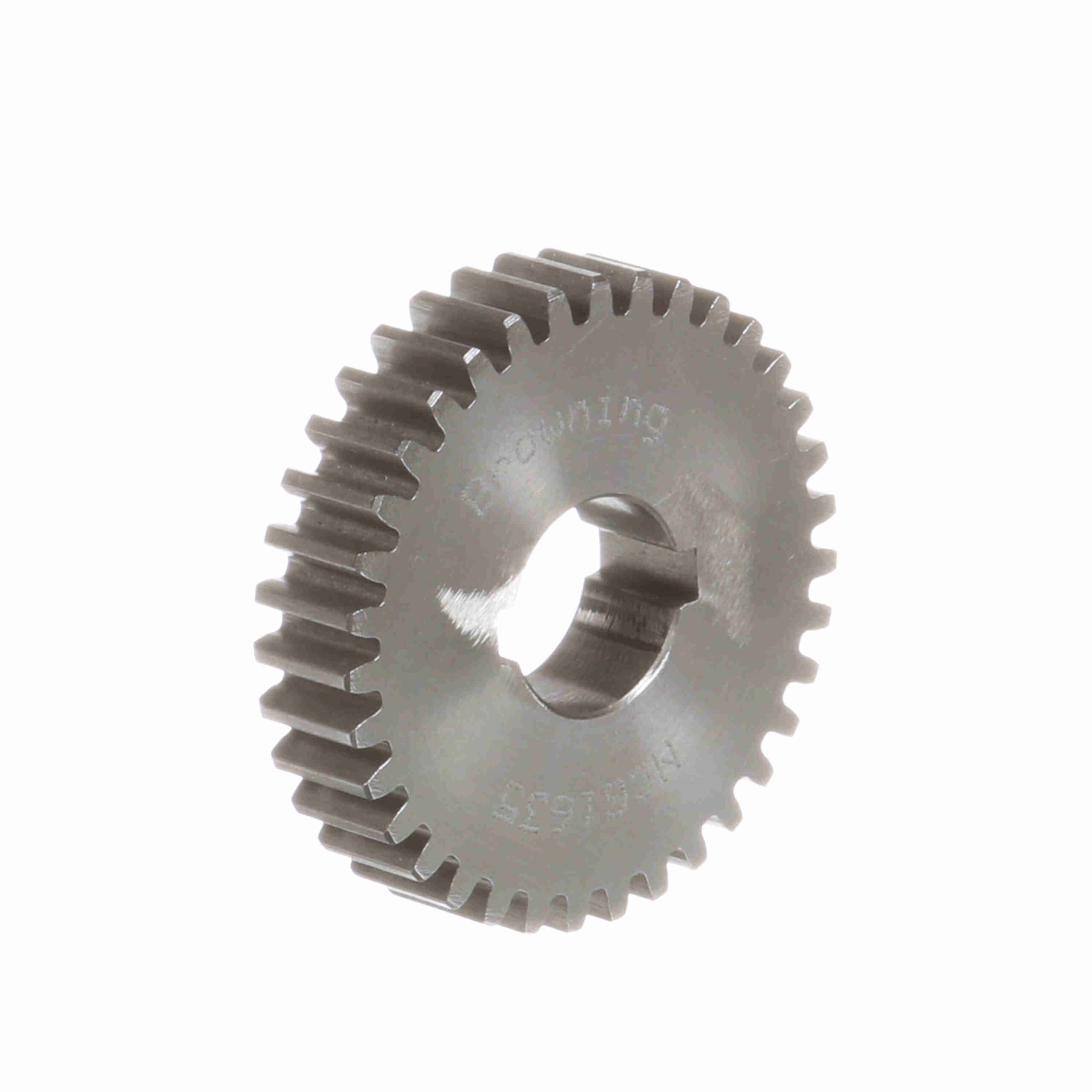

Browning Steel Minimum Plain Bore Change Gear – 14.5 PA 16 DP – NCG1635
Out of stock
| Pressure Angle: | 14.5 | Outside Diameter (in): | 2.31 in |
|---|---|---|---|
| Pitch Diameter (in): | 2.188 in | Material: | Steel |
| Face Width (in): | 0.5 in | Number of Teeth/Threads: | 35 |
| Diametral Pitch: | 16 | Bore Type: | Minimum Plain Bore |
| Bore (Max) (in): | 0.75 in | Bore (Min) (in): | 0.75 in |
| Length Through Bore (in): | 0.5 in | Bore Size (in): | 0.75 in |
| Product Type: | Change Gear | Hub Type: | Type A |
| UPC: | 662289149070 | Weight: | 0.49 LB |
| Packaged Length: | 2.70 Inches | Packaged Width: | 2.70 Inches |
| Packaged Height: | 1.50 Inches | HTC: | 8483.40.9000 |
| Country of Origin: | Mexico |
