- Browning Change Gears, change gear bushing sold separately
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NCG1270

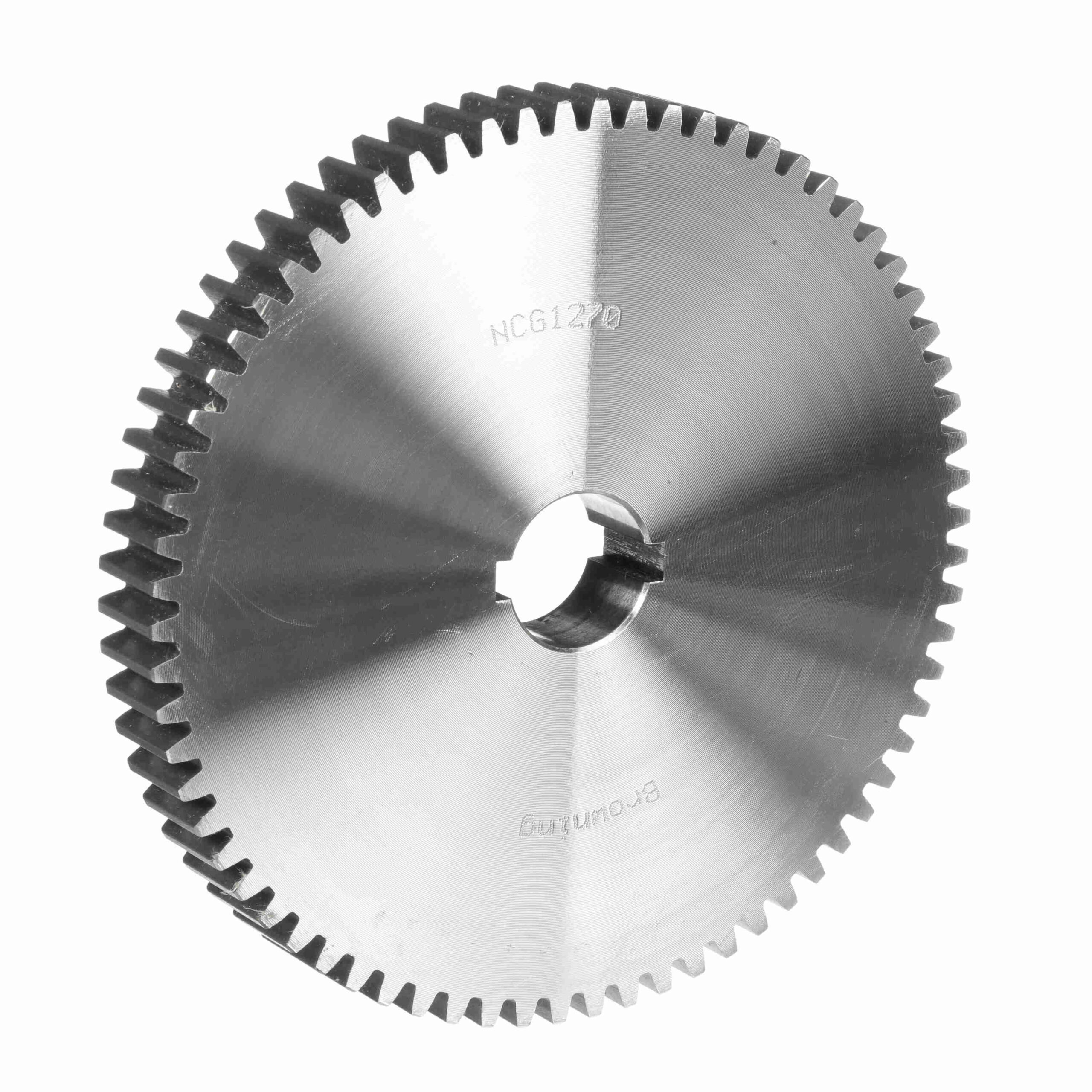

Browning Steel Minimum Plain Bore Change Gear – 14.5 PA 12 DP – NCG1270
$329.36
Out of stock
Out of stock
| Diametral Pitch: | 12 | Outside Diameter (in): | 6 in |
|---|---|---|---|
| Face Width (in): | 0.75 in | Material: | Steel |
| Pitch Diameter (in): | 5.833 in | Number of Teeth/Threads: | 70 |
| Pressure Angle: | 14.5 | Bore (Max) (in): | 1 in |
| Length Through Bore (in): | 0.75 in | Bore Type: | Minimum Plain Bore |
| Bore (Min) (in): | 1 in | Product Type: | Change Gear |
| Bore Size (in): | 1 in | Hub Type: | Type A |
| Standard Met: | AGMA | UPC: | 662289110391 |
| Weight: | 5.57 LB | Packaged Length: | 7.60 Inches |
| Packaged Width: | 7.40 Inches | Packaged Height: | 0.50 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | Mexico |
