- Browning Change Gears, change gear bushing sold separately
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NCG1238

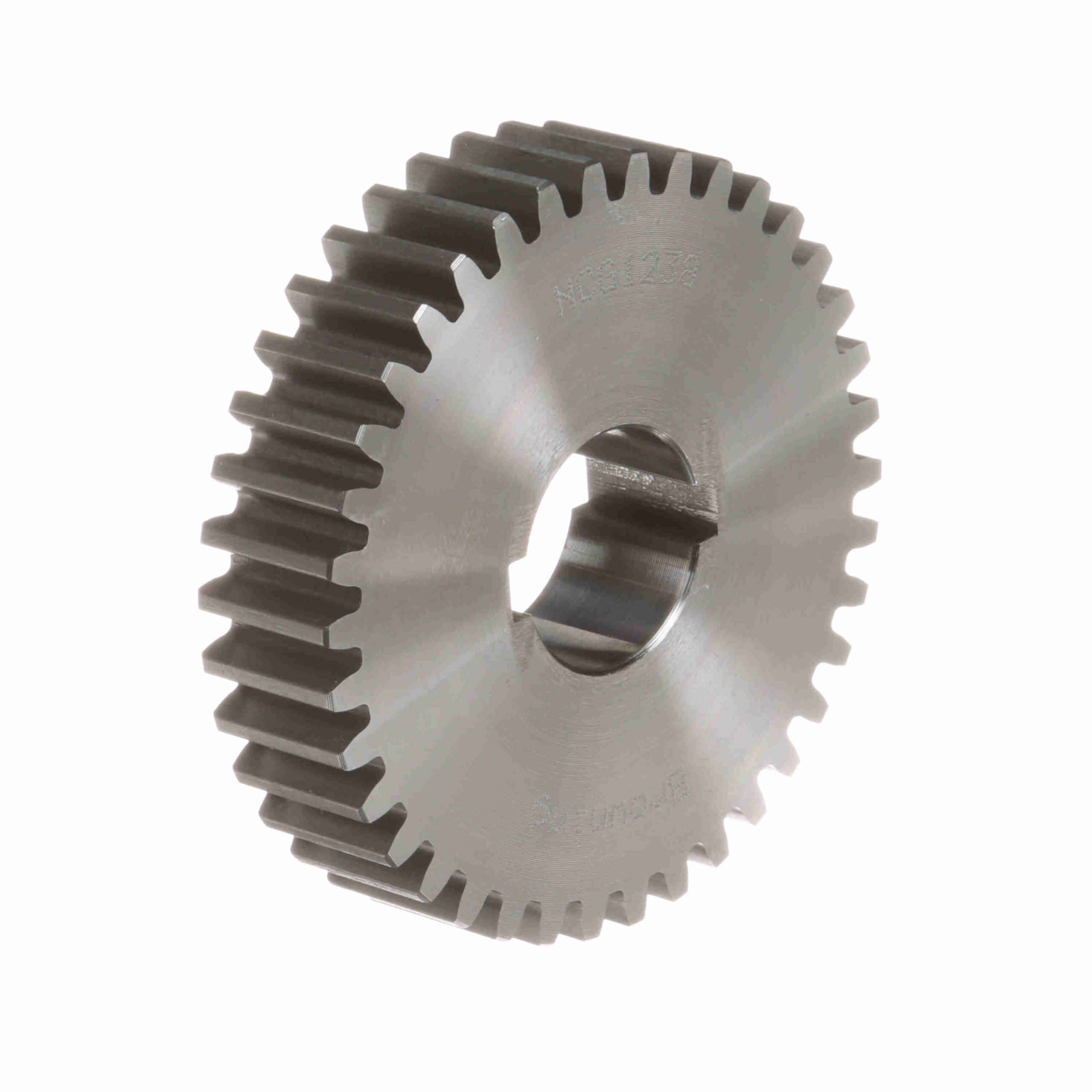

Browning Steel Minimum Plain Bore Change Gear – 14.5 PA 12 DP – NCG1238
$231.58
Out of stock
Out of stock
| Pitch Diameter (in): | 3.167 in | Outside Diameter (in): | 3.33 in |
|---|---|---|---|
| Number of Teeth/Threads: | 38 | Face Width (in): | 0.75 in |
| Diametral Pitch: | 12 | Material: | Steel |
| Pressure Angle: | 14.5 | Bore Type: | Minimum Plain Bore |
| Length Through Bore (in): | 0.75 in | Bore (Max) (in): | 1 in |
| Bore (Min) (in): | 1 in | Bore Size (in): | 1 in |
| Product Type: | Change Gear | Hub Type: | Type A |
| Standard Met: | AGMA | UPC: | 662289140039 |
| Weight: | 1.51 LB | Packaged Length: | 4.40 Inches |
| Packaged Width: | 4.30 Inches | Packaged Height: | 1.20 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | Mexico |
