- Through hardened bearing grade steel
- Surfaces precision ground to RBEC 1 tolerances
- Crowned rollers
N 324 EM C3

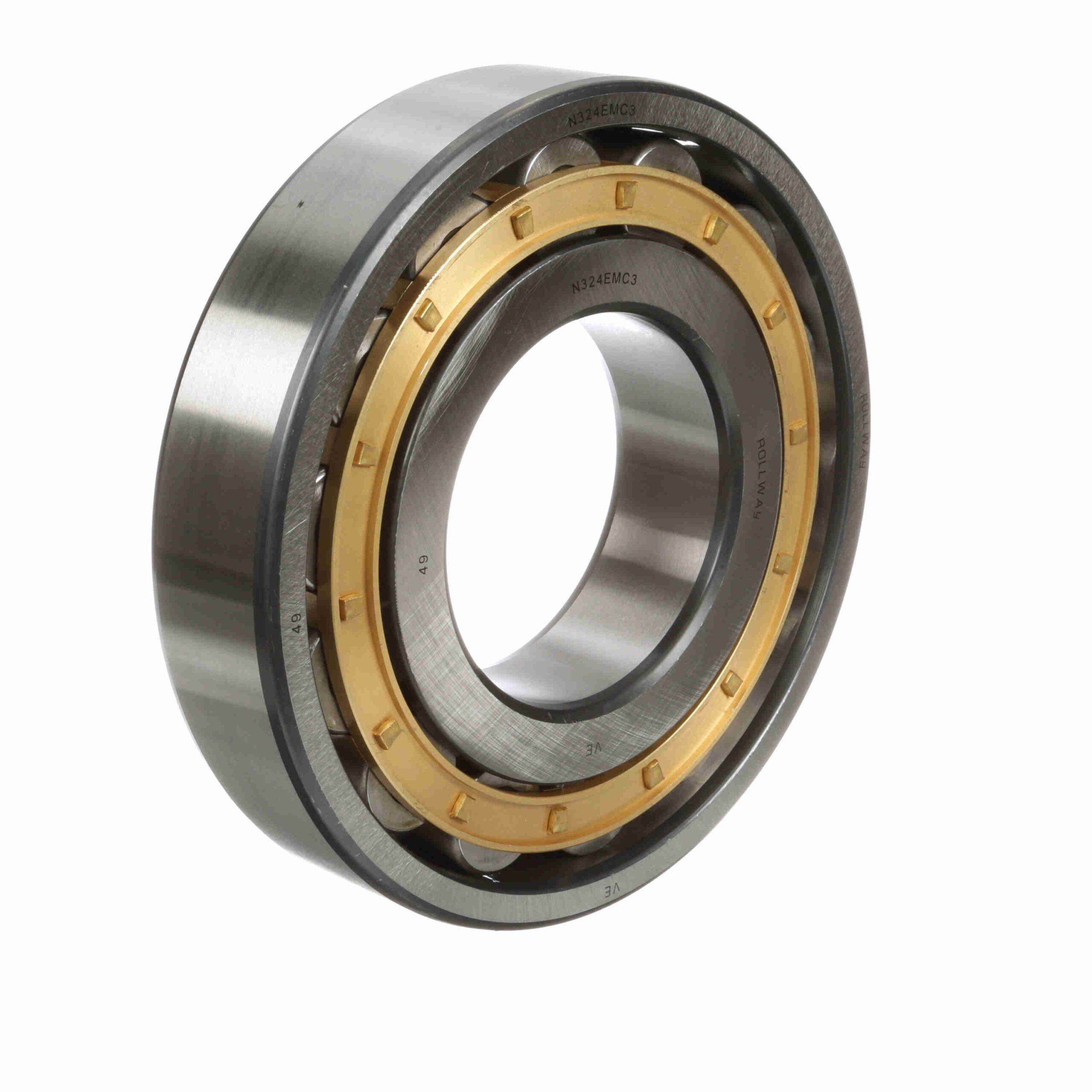

Rollway Radial Cylindrical Roller Bearing – Caged Roller – Straight Bore – Unsealed – N 324 EM C3
$4,092.32
Out of stock
Out of stock
| Outer Race Configuration: | Separable Both Directions | Additional Information: | Suitable for radial loads only |
|---|---|---|---|
| Inner Race Configuration: | Non-Separable | Version: | EM: Extra capacity design - Machined brass retainer |
| Static Load Rating (kN): | 644 kN | Cage Material: | Brass |
| Seal Type: | Unsealed | Bore Type: | Straight |
| Radial Clearance: | C3 | Rolling Element: | Cylindrical Roller |
| Misalignment: | No | Number of Rows: | 1 |
| Material: | High Chromium Bearing Steel | Speed [Max] Grease (RPM): | 2, 200 rpm |
| Static Load Rating (lb): | 144, 777 lb | Speed [Max] Oil (RPM): | 2, 800 rpm |
| Duplexing: | No | Dynamic Load Rating (lb): | 123, 420 lb |
| Sealed: | None | Platform: | Cylindrical Radial |
| Full Complement/Caged: | Caged | Profile: | Complete with Outer and Inner Race |
| Separable: | Outer ring - both sides | Retainer: | Yes |
| Snap Ring: | No | UPC: | 637410083066 |
| Weight: | 33.07 LB | Packaged Length: | 10.24 Inches |
| Packaged Width: | 2.17 Inches | Packaged Height: | 10.24 Inches |
| Country of Origin: | China |
