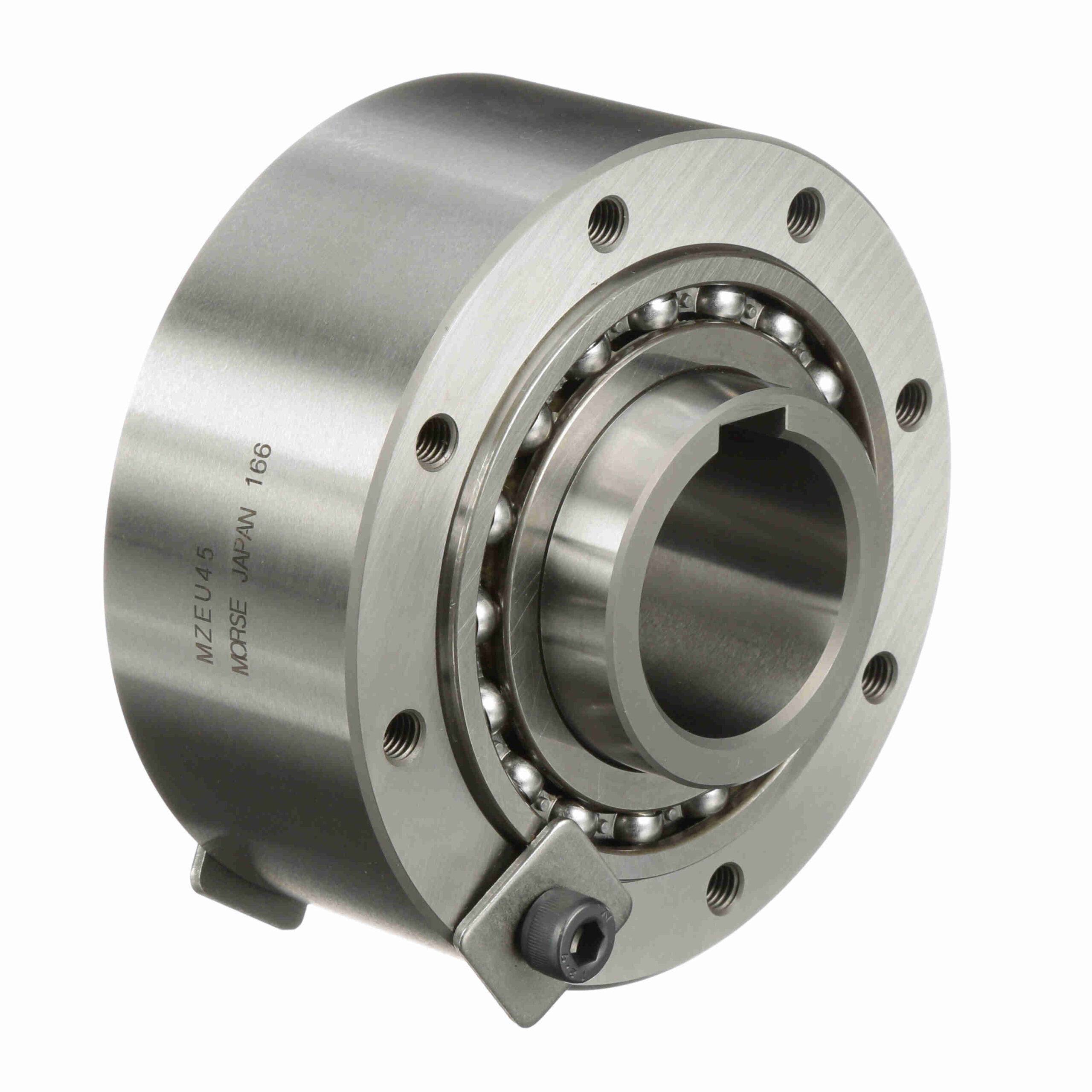

MZEU45-CLUTCH

Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
MZEU series has a dual metric ball bearing supported design with metric bores. It is suitable for overrunnng and middle speed backstopping.
This one way sprag clutch has tapped holes to mount accessories

Drag Torque (lb-ft):	0.508917	Rated Torque Capacity (ft.-lbs.):	1, 194.849
Rated Torque Capacity (N-m):	1620	Bore Size Tolerances (in):	+0.0010/-0.0000 in
Type:	CAM Clutches	Keyway:	14 X 3.8
Model:	MZEU 45	Drag Torque (N-m):	0.69
Bore Size Tolerances (mm):	+0.025/-0.000 mm	Add'l Bearing Support Requirement:	No
Maximum Overrunning Speed - Outer Race (rpm):	300	Bore Size (in):	1.771648 in
Maximum Overrunning Speed - Inner Race (rpm):	1, 400	Indexing Clutch:	No
Backstopping Clutch:	Yes	Bore Size (mm):	45 mm
Overrunning Clutch:	Yes	Product Type:	MZEU Series
UPC:	662288930136	Weight:	11.49 LB
Packaged Length:	6.10 Inches	Packaged Width:	5.80 Inches
Packaged Height:	4.80 Inches	HTC:	8483.60.4040
Country of Origin:	Japan
