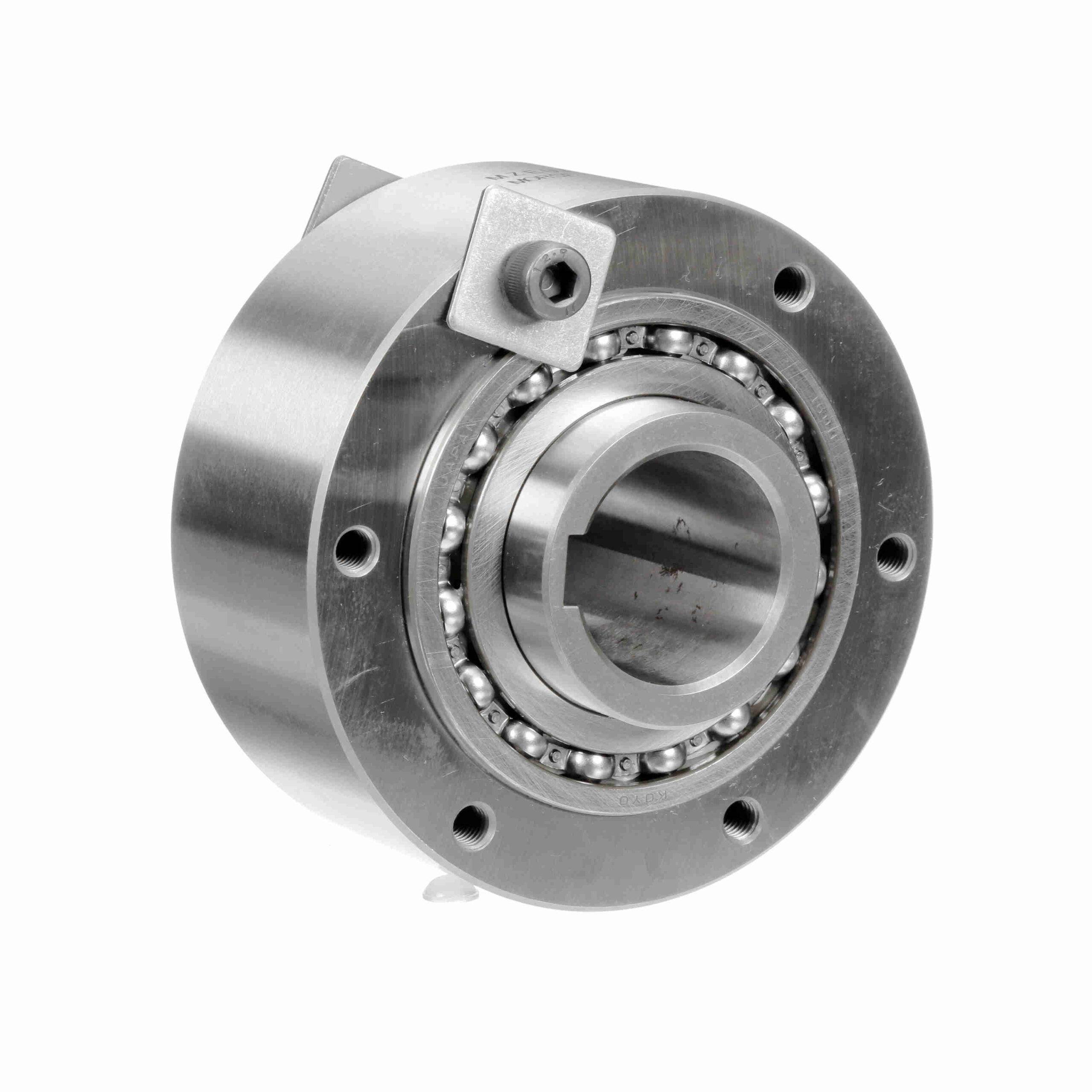

MZEU40-CLUTCH

Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
MZEU series has a dual metric ball bearing supported design with metric bores. It is suitable for overrunnng and middle speed backstopping.
This one way sprag clutch has tapped holes to mount accessories

Type:	CAM Clutches	Keyway:	12 X 3.3
Drag Torque (lb-ft):	0.435161	Bore Size Tolerances (mm):	+0.025/-0.000 mm
Rated Torque Capacity (ft.-lbs.):	995.7074	Rated Torque Capacity (N-m):	1350
Bore Size Tolerances (in):	+0.0010/-0.0000 in	Model:	MZEU 40
Drag Torque (N-m):	0.59	Add'l Bearing Support Requirement:	No
Product Type:	MZEU Series	Maximum Overrunning Speed - Inner Race (rpm):	1, 400
Backstopping Clutch:	Yes	Indexing Clutch:	No
Maximum Overrunning Speed - Outer Race (rpm):	300	Overrunning Clutch:	Yes
Bore Size (in):	1.574798 in	Bore Size (mm):	40 mm
Outer Width (in):	2.1 in	RPM Max. -inner Race:	1, 400
Nominal Overrunning Drag (ft-lb):	0.435	Overall Diameter (in):	4.9 in
Lubrication Type:	Grease	Inner Race Width (in):	3.4 in
UPC:	662288930129	Weight:	10.50 LB
Packaged Length:	5.90 Inches	Packaged Width:	5.70 Inches
Packaged Height:	5.00 Inches	HTC:	8483.60.4040
Country of Origin:	Japan
