- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- MZEU series has a dual metric ball bearing supported design with metric bores. It is suitable for overrunnng and middle speed backstopping.
- This one way sprag clutch has tapped holes to mount accessories
MZEU35-CLUTCH

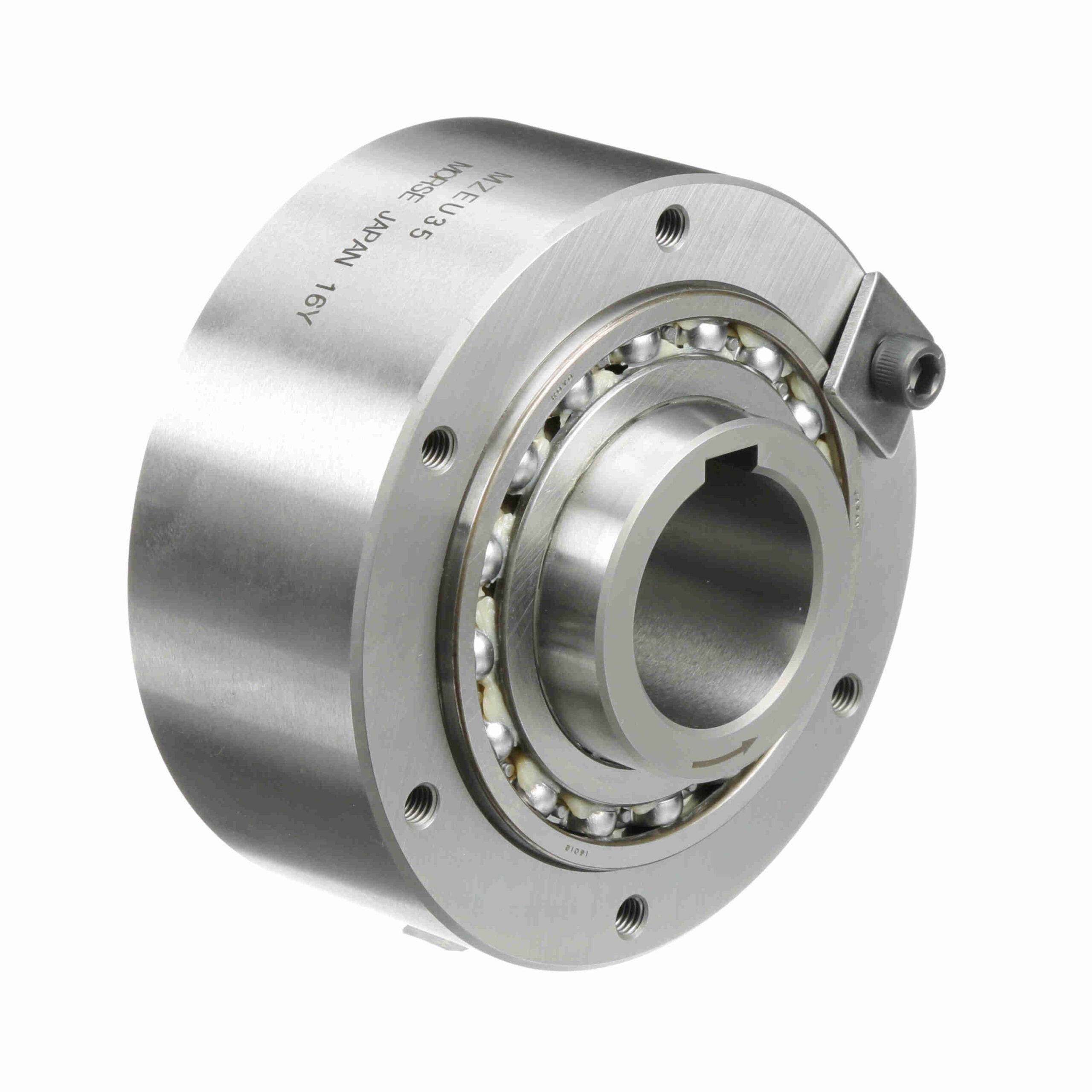

Morse MZEU Series CAM Clutch – MZEU35-CLUTCH
$5,499.56
Out of stock
Out of stock
| Rated Torque Capacity (N-m): | 1015 | Drag Torque (lb-ft): | 0.361405 |
|---|---|---|---|
| Keyway: | 10 X 3.3 | Rated Torque Capacity (ft.-lbs.): | 748.6244 |
| Type: | CAM Clutches | Bore Size Tolerances (mm): | +0.025/-0.000 mm |
| Bore Size Tolerances (in): | +0.0010/-0.0000 in | Drag Torque (N-m): | 0.49 |
| Model: | MZEU 35 | Add'l Bearing Support Requirement: | No |
| Maximum Overrunning Speed - Outer Race (rpm): | 300 | Bore Size (mm): | 35 mm |
| Bore Size (in): | 1.377949 in | Maximum Overrunning Speed - Inner Race (rpm): | 1, 400 |
| Backstopping Clutch: | Yes | Overrunning Clutch: | Yes |
| Indexing Clutch: | No | Product Type: | MZEU Series |
| UPC: | 662288930112 | Weight: | 7.07 LB |
| Packaged Length: | 5.10 Inches | Packaged Width: | 5.00 Inches |
| Packaged Height: | 4.50 Inches | HTC: | 8483.60.4040 |
| Country of Origin: | Japan |
